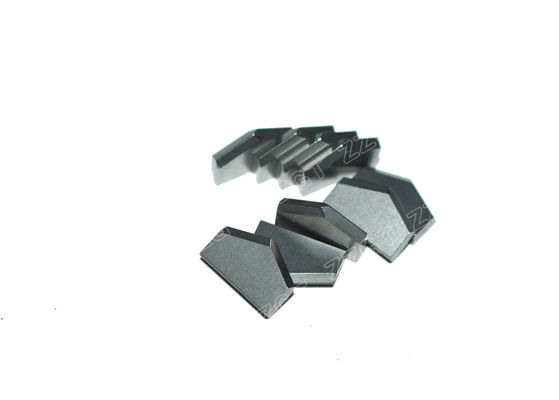

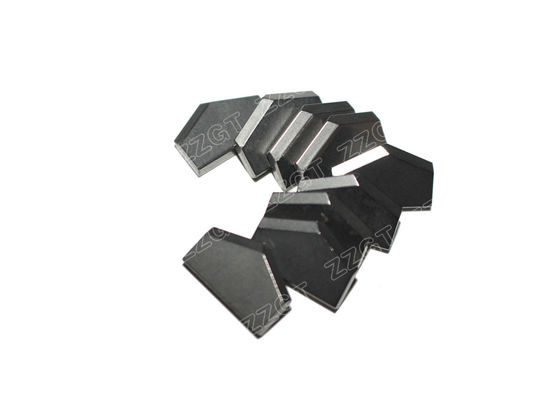

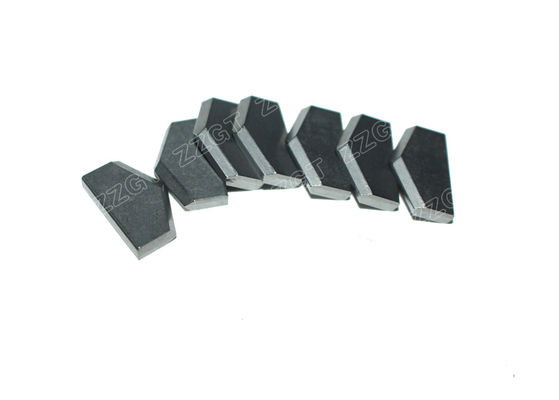

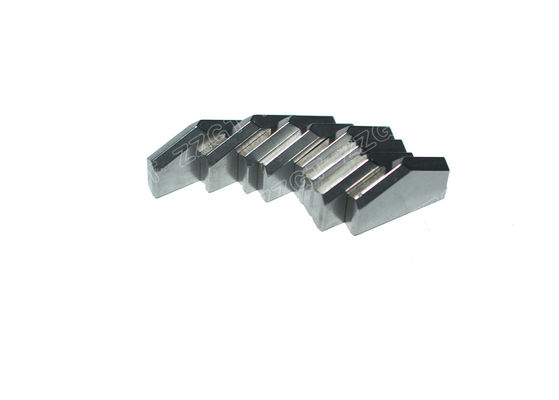

ISO Tungsten Carbide Drill Inserts Blanks Spade Insert For Percussive Drilling
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | 9.21x6.9x2.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Surface Finish: | Passivation | Services: | 24hours |
|---|---|---|---|
| Material: | 100% Virgin Tungsten Carbide Powder | ISO: | K20 |
| OEM/ODM: | Yes | Application: | Percussive Drilling |
| High Light: | tungsten carbide alloy products,cemented tungsten carbide products |
||
Product Description
ISO Tungsten Carbide Drill Inserts Blanks Spade Insert For Percussive Drilling
Tungsten carbide drill inserts blanks spade insert for percussive drilling applications
Special shapes and sizes for both rotary and percussive drilling applications can be manufactured by Zhuzhou Gingte Cemented Carbide company. Our patented spade insert combines the reliability of a spade insert with the speed of a two wing bit insert
Product Description:
| Product Name | tungsten carbide drilling tips |
| Material | Hard metal |
| Size | 9.21x6.9x2.0 |
| Size Tolerance | According to the drawing |
| Color | Sliver grey |
| Recommend Grade | K20 |
| Grain Size | Middle Grain Size |
| Application | percussive drilling |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
