Tungsten Carbide Pins High Precision

Tungsten Carbide Pins High Precision

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 3*18

Payment & Shipping Terms:

Minimum Order Quantity: 30KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Tungsten Carbide Surface Treatment: Precision Ground
Purpose: Scribing, Etch Or Mark Very Hard Objects Carbide Chemical Composition: WC+Cobalt
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air Roughness: 0.2-0.4
Sample: Available Hardness: 89-92 HRA
Advantages: High Performance Cutting
High Light:

tungsten carbide alloy products


cemented tungsten carbide products

Product Description

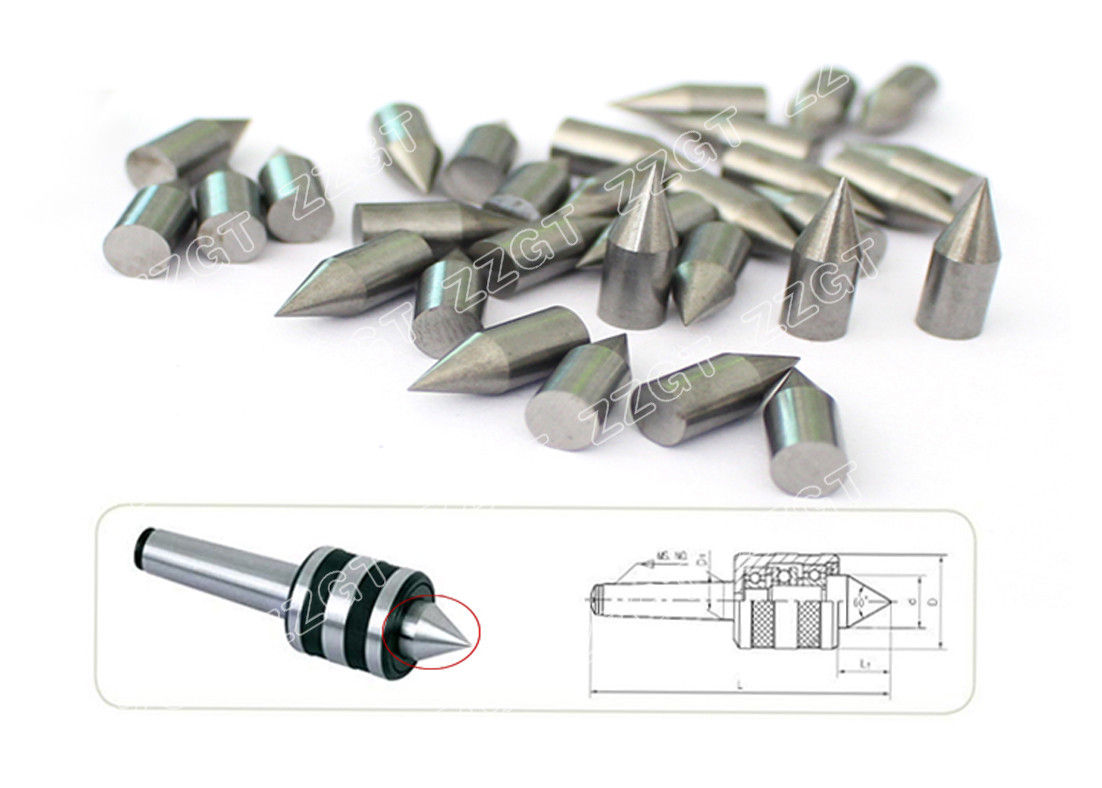

High Precision Tungsten Carbide Pins Tips for Engraving Scribing Marking

Product Quick Detail:

1. Product Name: Tungsten Carbide Pins

2. Material: Tungsten Carbide

3. Size: φ3*18 or as customer's size

4. Size Tolerance: 0/+0.3 tolerance or as customer's request

5. Cutting Angle: 60°, 80°, 90° etc

6. Recommend Grade: YG8 YG10X etc

7. Grain Size: Medium/Fine Grain

8. Usage:  for Engraving

9. Sintering Treatment: HIP sintering

10. Product Features: Long life, wear resistance

11. Certification: ISO9001



Prodcut Features :

- High Hardness Tungsten Carbide Sharp Pin for Engraving

- Better wear resistance, higher toughness, better deformation and fracture resistance, results in a long life and good size accuracy.
- Adopt advanced automatic extrusion equipment.
- HIP sintering and precision grinding to ensure the good performance.
- Both blank and finished tungsten carbide pins available.
- Can reach a mirror effect surface after accurate grinding and polishing.



Grade Performances:

Grade Density  T.R.S Hardness Performance & Application Recommended
g/cm3 N/mm² HRA
YG6 90 ≥3000 14.9 Good wear resistance,used for hard wood, used for processing original wood,aluminum section bar, brass rod and cast iron.
YG6X 91.5 ≥3500 14.9 Has wear resistance higher than YG6,used for processing hard wood,original wood,aluminum section bar,brass rod and cast iron.
YG8 89.5 ≥3200 14.7 Wear and percussion resistance,used for processing hard wood,soft wood,ferrous and non-ferrous.
YG10X 90 ≥3650 14.4 Wear resistance and strength comparatively higher,suitable for processing cast iron,non-ferrous,metal and non-metallid materials.
YS2T 92 ≥3850 14.5 Fine carbide,High wear resistance,high bending strength,high resistance to bonding,high thermal strength. Machining of refractory alloys,stainless steel and high manganese steel,etc.

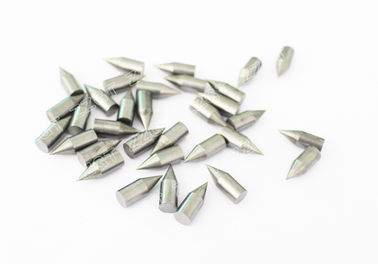

Tungsten Carbide Pins High Precision 0

Sr.No Dimensions (mm)
D(mm) L(mm) ɑ
1 2 10 50°~90°
2 2.5 10 50°~90°
3 3 18 50°~90°
4 4 25 50°~90°
5 5 25~55 50°~90°
6 6 30~55 50°~90°
7 8 30~55 50°~90°


For any other sizes we are able to custom-made according to clients’ requirements or drawings.



Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008



Packing Process:

Packing Details : In cartons,wooden boxes,plastic boxes or customized.

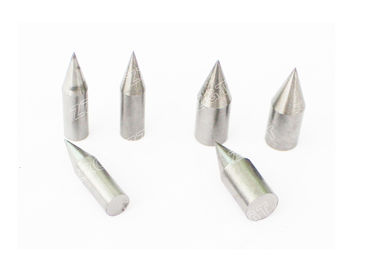

Tungsten Carbide Pins High Precision 1





Q: Are you trading company or manufacturer ?

A: We are factory.


Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.


Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.


Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.



Contact us at your free time when you are interested in our products : )
