Tungsten Carbide Tire Shredder Blades with good wear resistance
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | 60*60*20*φ24.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,D/A,T/T,Western Union,MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| Feature: | Durable And Long Life Time | Surface Finish: | Ground |
| Grade: | K20 | Application: | Cone Bit |
| Highlight: | Tungsten Carbide tire shredder blades,wear-resistant shredder blades,Tungsten Carbide wear parts |
||
Product Description

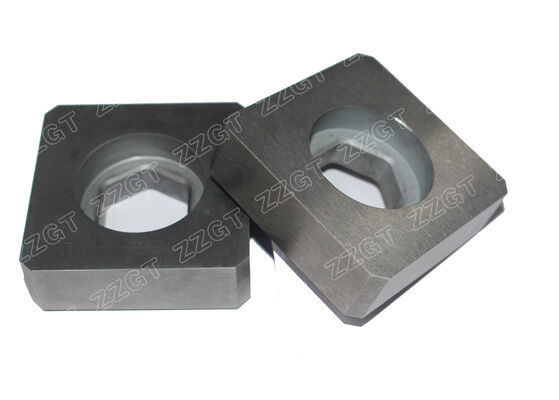

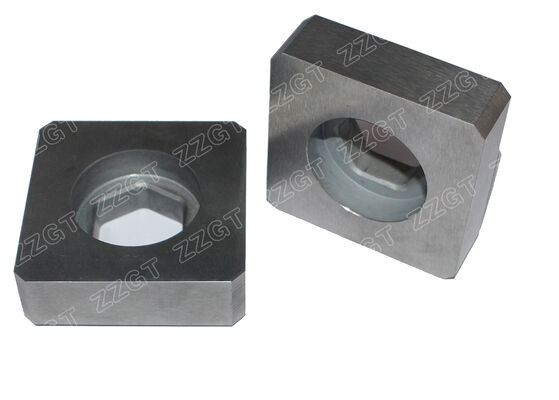

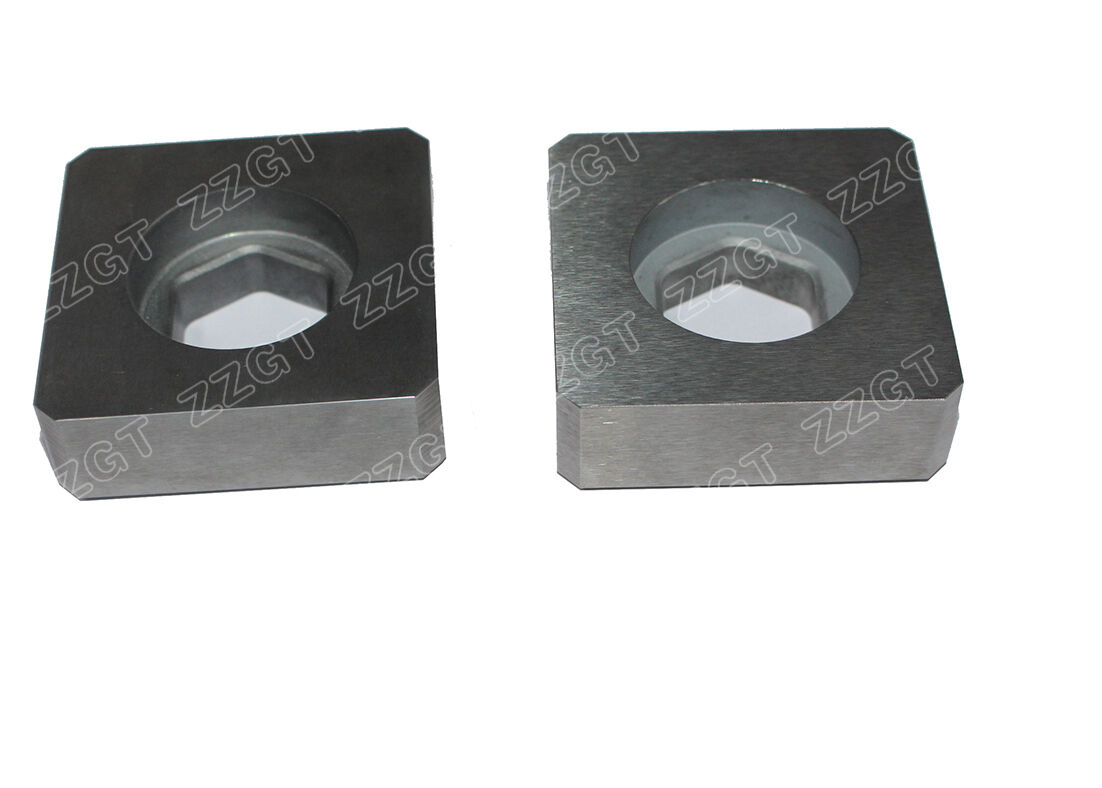

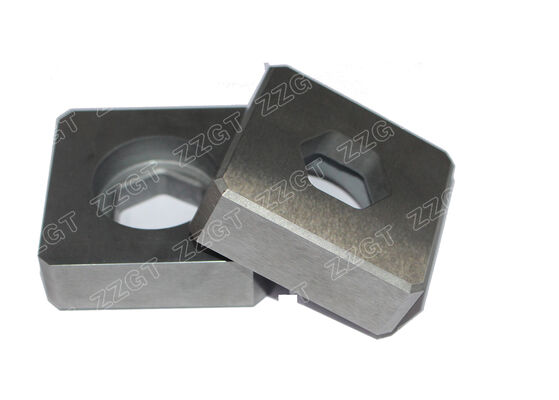

Tungsten Carbide Tire Shredder Blades with good wear resistance
Tungsten Carbide Tire Shredder Blades
These are industrial-grade cutting tools specifically engineered for processing scrap tires, including the most challenging steel-belted radial and OTR (Off-The-Road) tires. Unlike standard steel blades, they feature inserts or tips made from tungsten carbide (WC-Co), a composite material renowned for its exceptional hardness and wear resistance. This construction enables them to maintain a sharp cutting edge up to 10 times longer than conventional blades, dramatically reducing downtime for blade changes and improving overall shredding efficiency. They are essential components in modern tire recycling lines for primary reduction and granulation.
Product Description:
| Product Name | Cemented Carbide Tire Shredder blades |
| Material | Hard metal |
| Size | Customized |
| Size Tolerance | Referring the drawing |
| Color | Sliver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Middle Grain Size |
| Application | For Cone Bit and rotary drill |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Hard metal tire shredder cutters | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Advanced Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine and 500T oil pressing machine
* CNC Grinder and CNC machine
* Spark Erosion machine
* Wire cutting machine,etc
