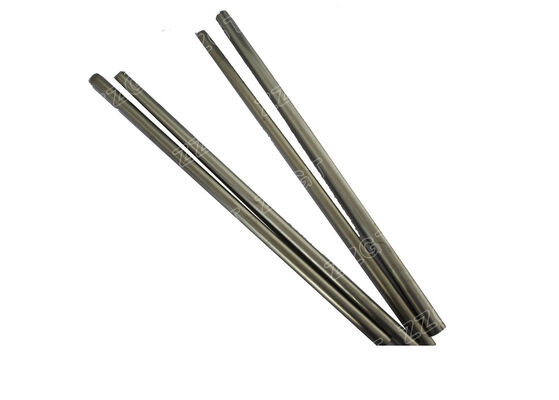

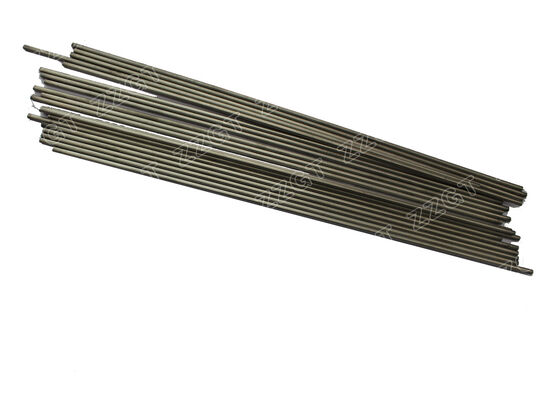

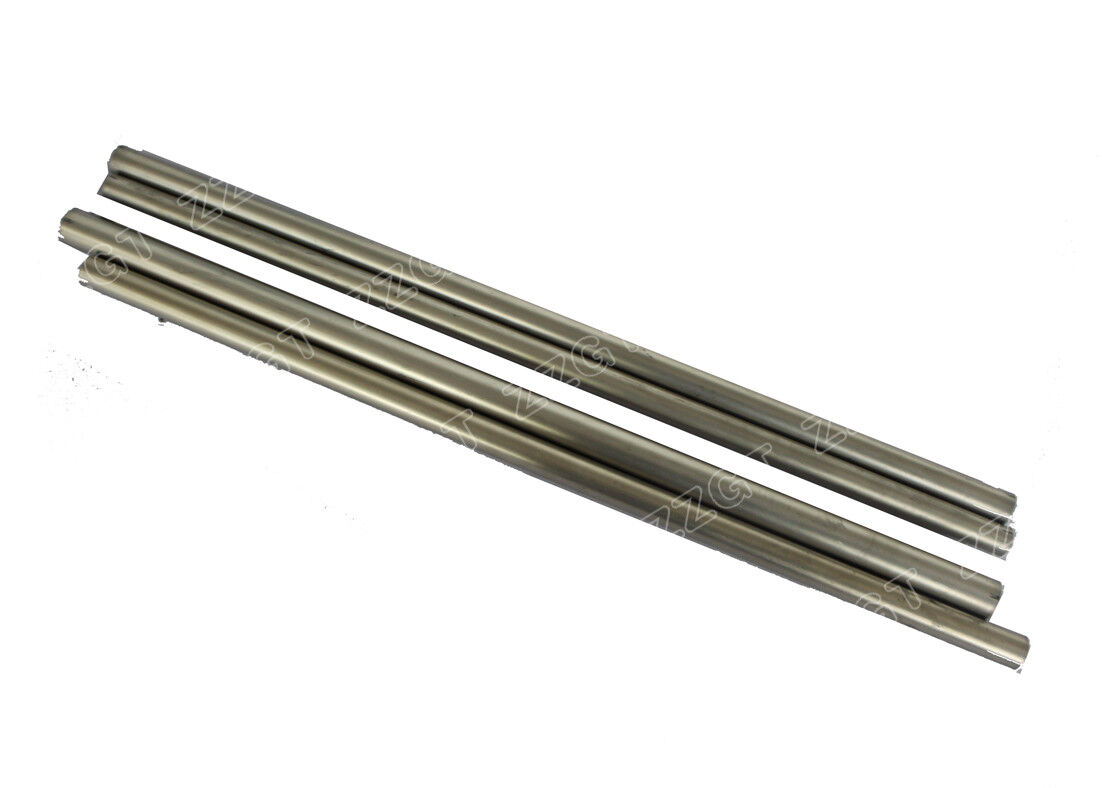

Grade 10% Cobalt Unground Tungsten Carbide Rod With Grain Size 0.8um
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | Dia3mm- Dia38mmx330 Length |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| ISO: | K30 | Surface Finish: | BLANK |
| OEM/ODM: | Yes | Application: | Solid Carbide End Mill |
| Highlight: | tungsten carbide bar,solid carbide rod |
||
Product Description
Grade 10% cobalt with grain size 0.8um unground tungsten carbide rod
About Carbide rods
Particle/Grain size: 0.2-1.0μm (ultrafine / micro)
Material: 100% Virgin Tungsten Carbide
Chemical Composition: WC+Co
Product Description:
| Product Name | tungsten carbide rods |
| Material | Hard metal |
| Size | OD3mm to OD38MM x330 lenght |
| Size Tolerance | standard tolerance |
| Color | Sliver grey |
| Recommend Grade | K20 |
| Grain Size | Middle Grain Size |
| Application | solid carbide end mill |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
Contacts:
For further question, pls contact our sales engineer
Name:Daisy Tian
E-mail: zzgt3@gtcarbide.com
Mobile/whatsapp:+8613874120766
Want to Know more details about this product
