Wear Resistant Ground YL10.2 Tungsten Carbide Plates
Product Details:
Place of Origin: | Zhuzhou,Hunan,China |
Brand Name: | ZZGT Li |
Certification: | ISO9001-2015 |
Model Number: | 445x55x5 |
Payment & Shipping Terms:
Minimum Order Quantity: | Samples are accepted |
---|---|
Price: | Negotiable |
Packaging Details: | Paper box , Wooden Carton or Customized accepted |
Delivery Time: | 7-15days |
Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 400T/year |
Detail Information |
|||
Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
---|---|---|---|
Feature: | Wear Resistance | Surface Finish: | Ground |
Grade: | YL10.2 | Application: | For Tungsten Carbide Knifves |
High Light: | Ground Tungsten Carbide Plates,Wear Resistant YL10.2 Tungsten Carbide Plates,YL10.2 Tungsten Carbide Sheet |
Product Description

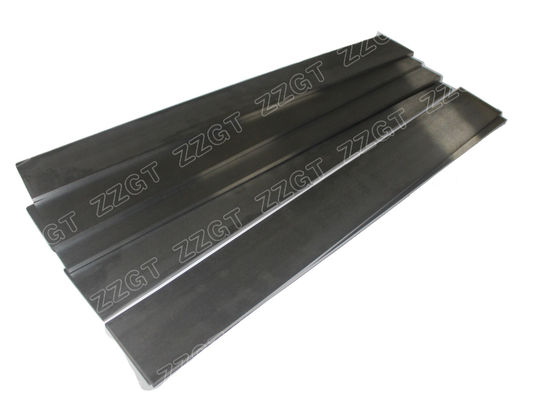

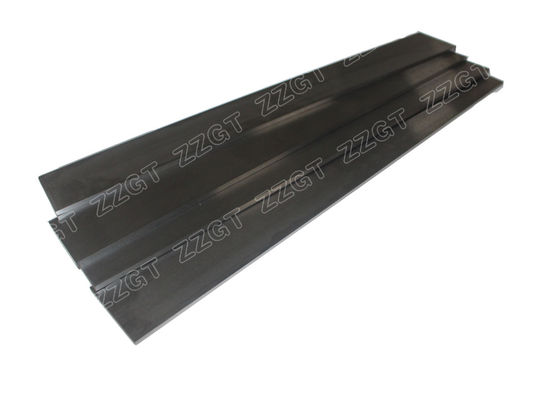

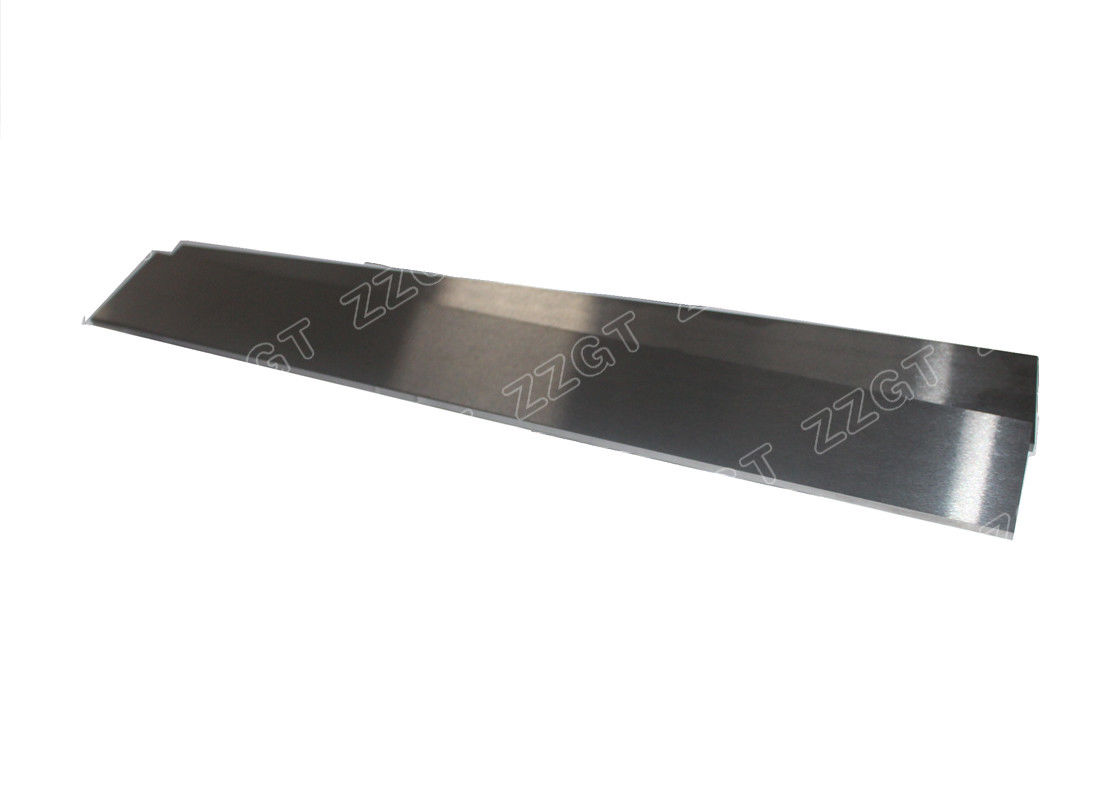

Wear Resistant Ground YL10.2 Tungsten Carbide Plates
Ground YL10.2 tungsten carbide plates for blade/knives
All photos of the carbide mining button products shown on our website are produced by our factory and we took the photos in our
packing department, it shows excatly what the real status of the product is!
Product Description:
Product Name | tungsten carbide strips |
Material | cemented carbide |
Size | customized |
Size Tolerance | standard tolerance |
Color | Sliver grey |
Recommend Grade | Good wear resistance |
Grain Size | Fine Grain Size |
Application | For wear parts |
Processing Treatment | HIP sintering |
Product Features | Long life, wear resistance |
Certification | ISO9001-2015 |
Grade Performance
Tungsten Carbide Cold Forging/heading Dies | |||||
Grades | Density | T.R.S | Hardness | Performance & application recommended | |
g/cm³ | MPa | HRA | |||
YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
