Sandblasted YG6 Tungsten Carbide Jaw Crusher Plate
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | 215x46.7x10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| Feature: | Anti -wear | Surface Finish: | Sandblasted |
| Grade: | YS6 | Application: | For Wear Tools |
| High Light: | Tungsten Carbide Jaw Crusher Plate,Sandblasted Jaw Crusher Plate,YG6 Tungsten Carbide Linner Plate |
||
Product Description

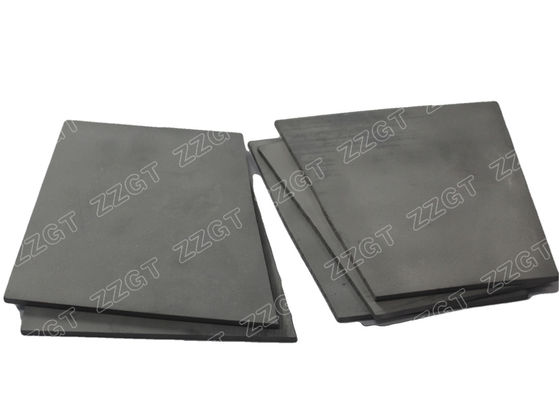

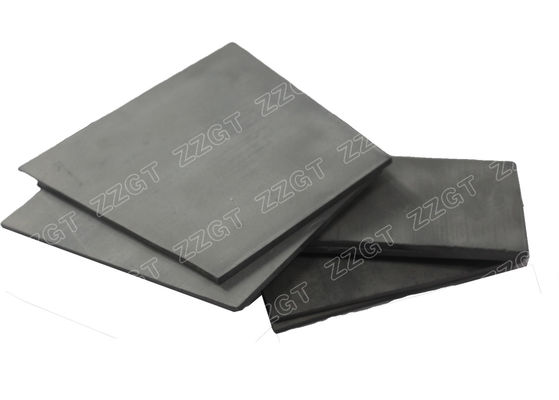

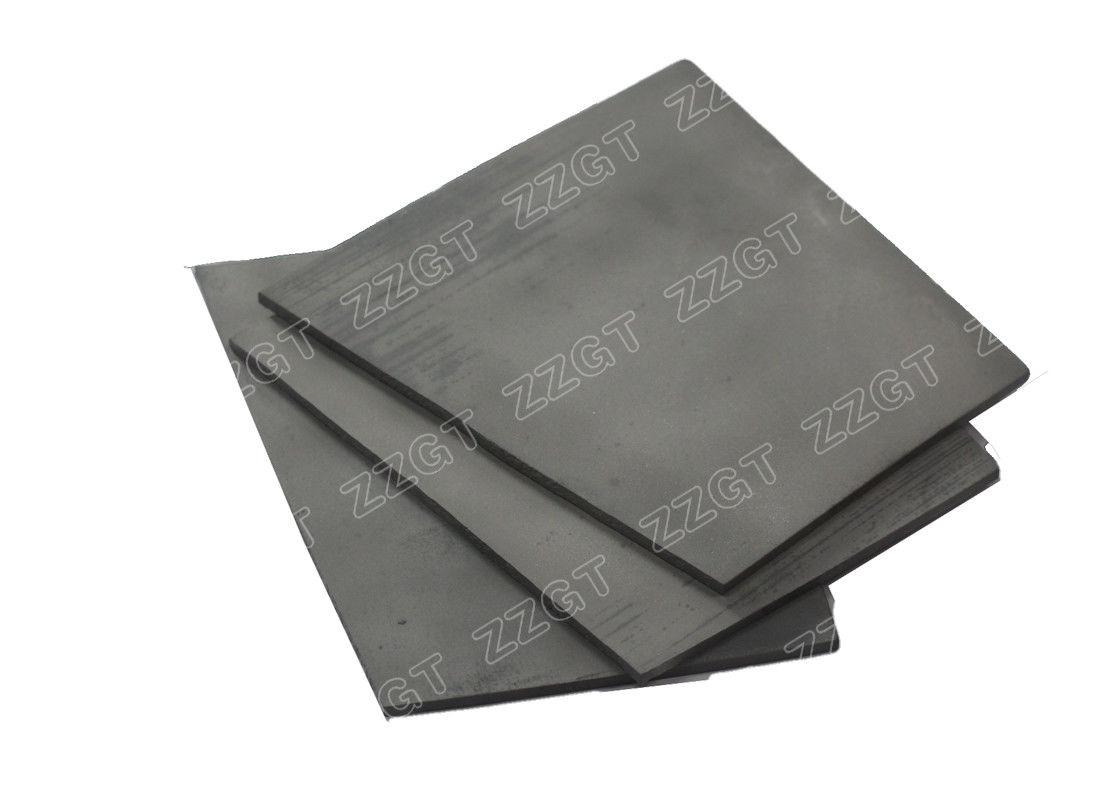

Sandblasted YG6 Tungsten Carbide Jaw Crusher Plate
YG6 tungsten carbide Linner Plate jaw Crusher Plate/Crush Plate
For jaw crusher plate, people conventionally use high manganese steel material. The wear resistance and strengthness of high manganese steel are insufficient under the condition of strong impact and high stress chiseling wear. It provides an extended working life even with materials up to 7-8 Mohs’ hardness. At present, tungsten carbide material is an ideal choice for making jaw plate, and its service life is several times longer than that of high manganese steel jaw plate.
Product Description:
| Product Name | hard metal jaw plates |
| Material | cemented carbide |
| Size | 215x46.7x10 |
| Size Tolerance | standard tolerance |
| Color | Sliver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Middle Grain Size |
| Application | For cutting tools |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
