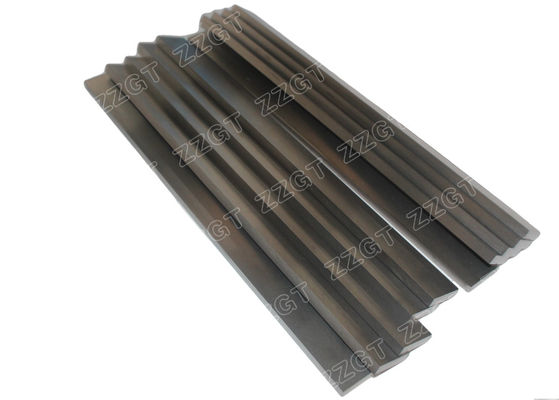

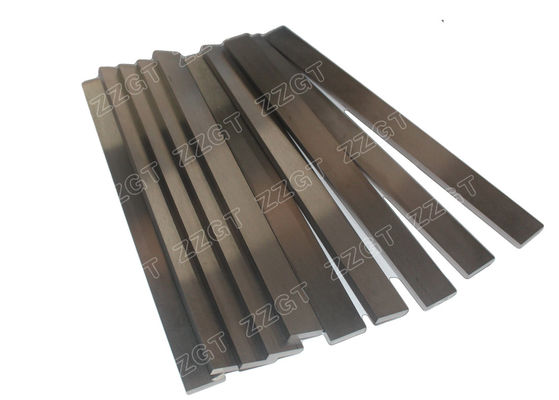

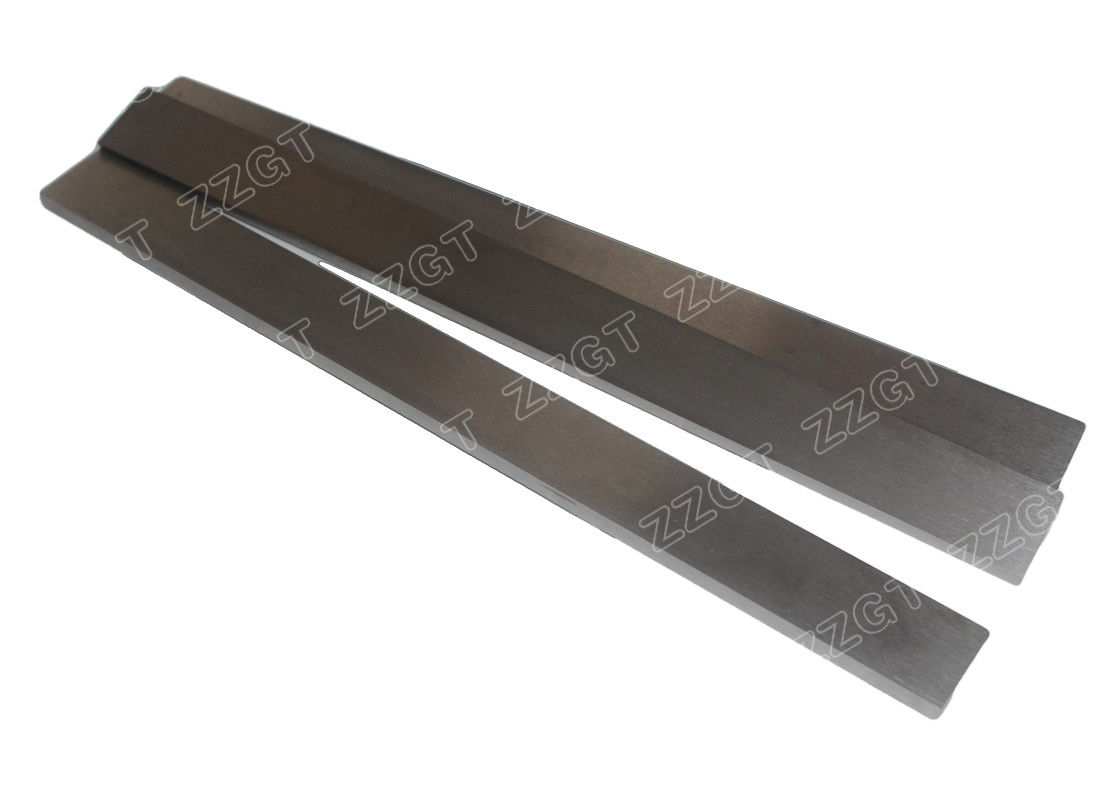

Ground 330mm Length YG15 Cemented Tungsten Carbide Strips
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | 306x25x6.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| Feature: | Customized | Surface Finish: | Ground |
| Grade: | YG15 | Application: | For Tungsten Carbide Knifves |
| High Light: | 330mm Length Tungsten Carbide Strips,Cemented Tungsten Carbide Strips,YG15 Carbide Strips |
||
Product Description
Ground 330mm Length YG15 Cemented Tungsten Carbide Strips
Ground 330 length YG15 tungsten carbide strip with good precision for wooden blade
Tungsten carbide strips widely known as one kind of carbide cutting tools, it's available for different grinding geometric
parameters and suitable for both cutting materials and nonmetal materials, also it can be applied to conventional, carbide inserts semi-automatic lathe, automatic lathe and planning machine to work grooves and operate cutting
Tungsten carbide strip and sheet has the characteristics of high red-hardness, good weldability, high hardness and good wear resistance, it is mainly used for machining the solid wood, density board, grey cast iron, non-ferrous metal materials, chilled cast iron, quenched steel, PCB, braking materials. When used, should according to the specific purpose to choose .
Product Description:
| Product Name |
hard metal strip |
| Material | cemented carbide |
| Size | customized |
| Size Tolerance | standard tolerance |
| Color | Sliver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Fine Grain Size |
| Application | For wear parts |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
