Passivation YG20 Tungsten Carbide Choke Valve Seats

Passivation YG20 Tungsten Carbide Choke Valve Seats

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: D210x7.2

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Customized Surface Finish: Passvitation
Grade: YG20 Application: For Valve
High Light:

Tungsten Carbide Choke Valve Seats

,

Passivation Valve Seats

,

YG20 Tungsten Carbide Valve Seats

Product Description

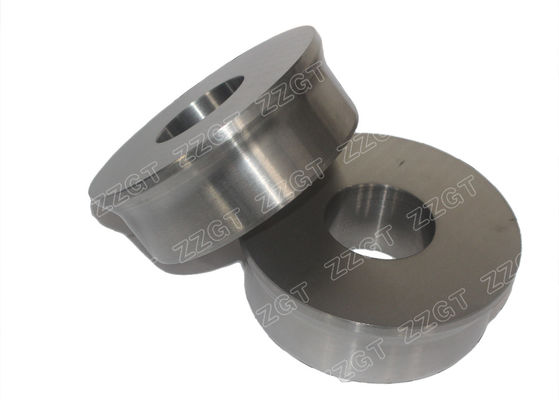

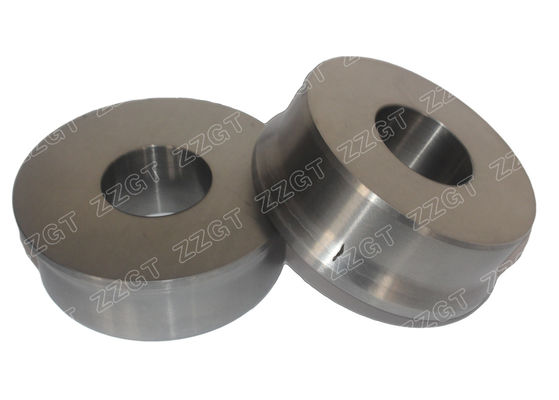

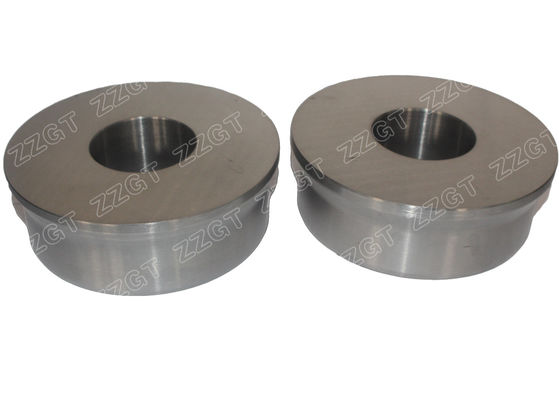

Passivation YG20 Tungsten Carbide Choke Valve Seats

Tungsten carbide choke valve seats



Tungsten carbide choke beans are used to control the flow of fluids and are usually mounted on the tungsten carbide choke stem. They are widely used on a choke valve in oil gas industry or other energy industry.

Tungsten carbide parts have long since been used in the petroleum industry for fluid handling, valve balls, valve seats, flow control valves, carbide sleeves, etc. While steel and other materials were traditionally used to make these parts, tungsten carbide easily replaced the same with industries preferring to opt for it owing to the following features:

• High wear resistance
• Abrasion and corrosion resistance, even with high strength viscous oils and fluids
• High strength and toughness
• Dimensional stability
• Good finish



We make tungsten carbide choke beans, seats, balls and sleeves for more than 8 years. The quality feedbacks from our customers are very well. We do 100% inspection before shipment and material certificate and inspection report can be provided.




Product Description:



Product Name

hard metal valve seats

Material cemented carbide
Size customized
Size Tolerance standard tolerance
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size Coarse Grain Size
Application For choke valve
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015





Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc
