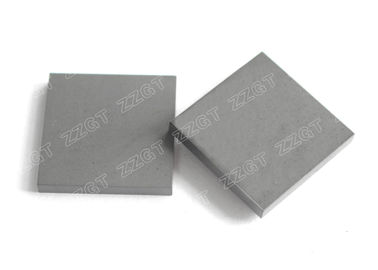

Tungsten Carbide Sheet For Cast Iron / Non - Ferrous Metal Machinery
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 150*150*10 or others |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Boards Containing Tungsten And Cobalt ,size 150*150*10 Or Other, For Copper , Aluminum, Non-ferrous Metal Sheets. | Quality: | High Strength High Hardness High Toughness |
|---|---|---|---|
| Technology: | Imported Equipment HIP Sinter | Service: | We Will Always Track Customer Usage |
| Delivery: | Quick Production Delivery After Ordering | Size: | Various Grade And Size For Choose |
| High Light: | tungsten carbide block,tungsten carbide wear plates |
||
Product Description
Carbide Sheets Descriptions :
1. Tungsten carbide sheets contains 100% virgin tungsten carbide which is use for electric interal furnace ,heating insulated screen.
2. Excellent wear resistance and strong hardness with stable performance, no broken
3. Various size and customized according to customer requirement
Feastures:
- International quality domestic prices
- Imported Equipment HIP Sintering
- Ultrasonic Test Six Face Fine Ground
- Wide range of applications
- Strong versatility
| Product Name | Tunsten Carbide sheets |
| Material | cemented carbide |
| Size | 150*150*10 or others available |
| Size Tolerance | ±0.1 or as customer's request |
| Color | As picture |
| Recommend Grade | YG8 YG15 YS2T etc |
| Grain Size | Medium and fine Grain |
| Application | for machinery of cast iron non-ferrous metals etc |
| Processing Treatment | Six Face fine ground or as customer request. |
| Product Features | Long life,good wear resistance and high hardness. |
| Certification | ISO9001 |
Grade Performances:
| Grade | Hardness | Density | T.R.S | Application Recommended |
| HRA | g/cm3 | MPα | ||
| YG6A | 91.5 | 14.9 | ≥3500 | Has wear resistance higher than YG6,used for processing hard wood, original wood,aluminum section bar,brass rod and cast iron. |
| YG8 | 89.5 | 14.7 | ≥3200 | Wear and percussion resistance,used for processing hard wood,soft wood, ferrous and non~ferrous. |
| YG15 | 87 | 14 | ≥3800 | for making stamping die, wear resistance parts. |
| YG20 | 84.5 | 13.7 | ≥4200 | with high strength,suitable for making progressive die stamping die etc. |
| YS2T | 92 | 14.5 | ≥3850 | Fine carbide, High wear resistance,high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel etc. |
Size Options:
| Type | L (mm) |
W (mm) |
T (mm) |
Type | L (mm) |
W (mm) |
T (mm) |
| 300×250×T | 300 | 250 | 5-65 | 270×120×T | 270 | 120 | 5-65 |
| 300×200×T | 300 | 200 | 5-65 | 150×150×T | 150 | 150 | 5-65 |
| 320×215×T | 320 | 215 | 5-65 | 150×100×T | 150 | 100 | 5-65 |
| 350×250×T | 350 | 250 | 5-65 | 120.5×107×T | 120.5 | 107 | 5-65 |
| 300×160×T | 300 | 160 | 5-65 | 120.5×120.5×T | 120.5 | 120.5 | 5-65 |
| 200×200×T | 200 | 200 | 5-65 | 100×100×T | 100 | 100 | 5-65 |
| 200×100×T | 200 | 100 | 5-65 | 100×85×T | 100 | 85 | 5-65 |
| 200×60×T | 200 | 60 | 5-65 | 100×50×T | 100 | 50 | 5-65 |
| 200×150×T | 200 | 150 | 5-65 | 105×105×T | 105 | 105 | 5-65 |
| 250×250×T | 250 | 250 | 5-65 | 68×57×T | 68 | 57 | 5-20 |
| 250×200×T | 250 | 200 | 5-65 | 60×50×T | 60 | 50 | 5-20 |
| 250×150×T | 250 | 150 | 5-65 | 50×50×T | 50 | 50 | 5-20 |
| 250×130×T | 250 | 130 | 5-65 | 40×40×T | 40 | 40 | 5-20 |
| … | … | … | … | … | … | … | … |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.

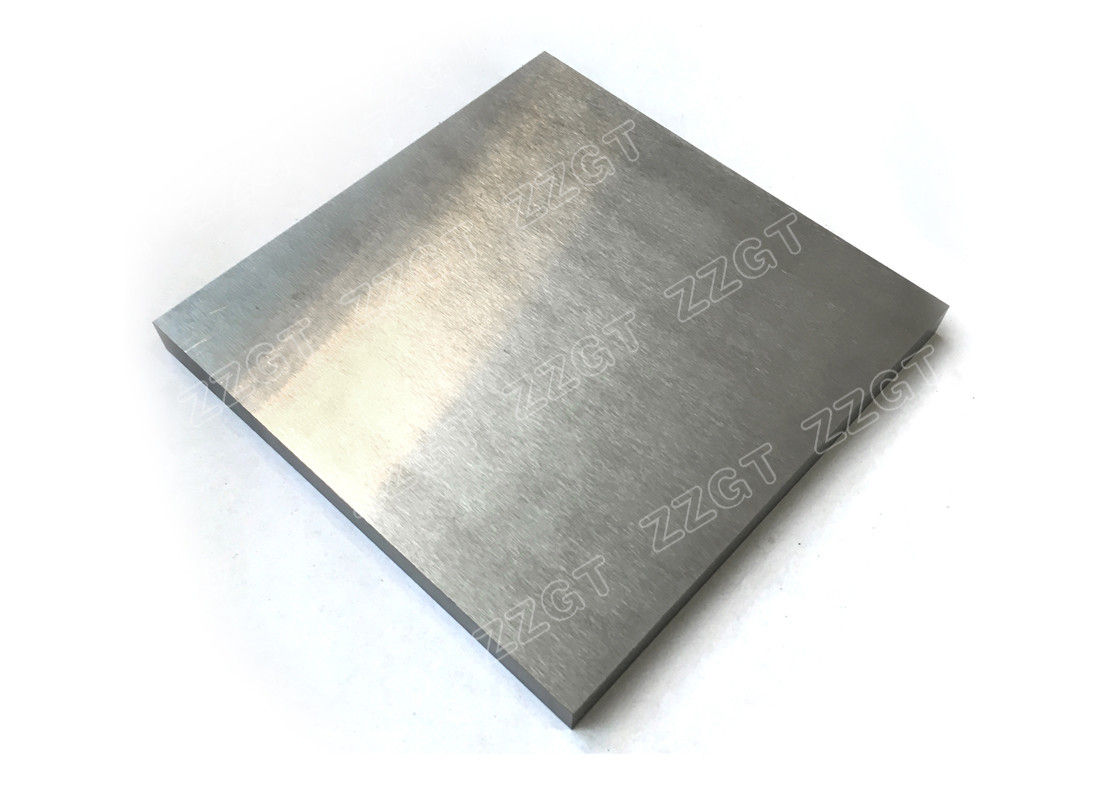

Product Display and Advantages:
Packing Process:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
