OD16mm Indexable Anti Vibration Carbide Shank Boring Bar With Coolant Hole

OD16mm Indexable Anti Vibration Carbide Shank Boring Bar With Coolant Hole

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: OD16x200

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Anti Vibration Surface Finish: Polished
Grade: YG15 Application: Wear Parts For Coal Mining
High Light:

Anti Vibration Carbide Shank Boring Bar

,

Indexable Carbide Shank Boring Bar

,

OD16mm Carbide Round Bar

Product Description

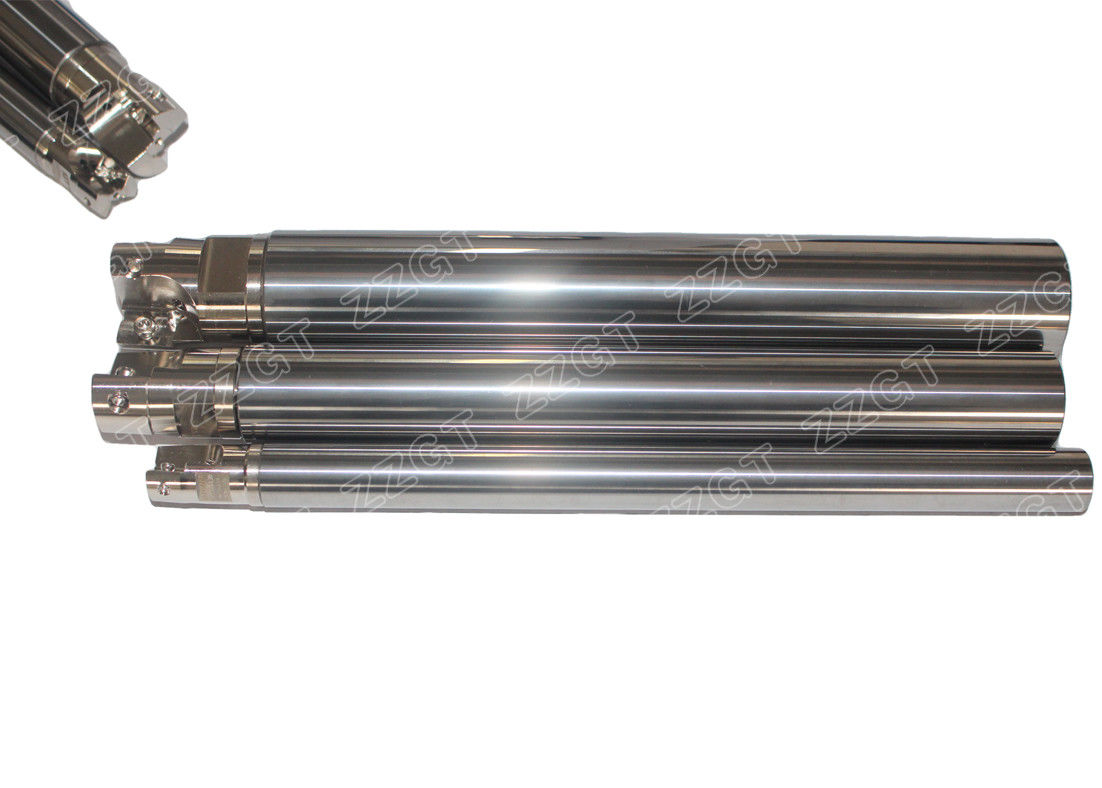

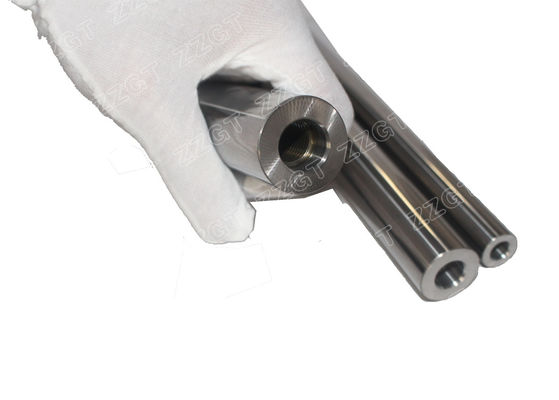

OD16mm Indexable Anti Vibration Carbide Shank Boring Bar With Coolant Hole

Indexable Anti Vibration Carbide Shank Boring Bar With Coolant Hole



1. High Rigidity
Improve surface finish and perpendicularity. Made of pure tungsten carbide material, excellent rigidity, good shock absorption, no distortion as lateral stiffness too large.


2. High Precision
Improve dimensional precision. To extend the processing depth, enhance the accuracy of processing & to achieve long, ultra-deep,ultra-high precision machining possibilities.


3. High Efficiency
No welding fracture concerns, emphasizing the variability of the replaceable tool head, a carbide bar can reach dozens of combinations, widely used in Rough & precision processing industrial .


4. Reduce Cost
Extending the tool life. The Holder can be exchangeable even if the cutter is damaged and Easy and convenient to replace. The tip and the Holder are screwed and run in reverse direction to the spindle.



Applications: Ideal for semi-finishing and finishing applications, and High Speed machining.
Adopted to ISO modular heads


Product Description:



Product Name carbide shank boring bars
Material cemented carbide
Size OD16x200
Size Tolerance standard tolerance
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size  Middle Grain Size
Application For tool holders
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.



OD16mm Indexable Anti Vibration Carbide Shank Boring Bar With Coolant Hole 0





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc



OD16mm Indexable Anti Vibration Carbide Shank Boring Bar With Coolant Hole 1
