Ground GD10 Tungsten Carbide Circular Saw Disc Blades
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001-2015 |
| Model Number: | as to the drawing |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
|---|---|---|---|
| Feature: | Durable And Long Life Time | Surface Finish: | Ground |
| Grade: | GD10 | Application: | Crusher |
| High Light: | GD10 Tungsten Carbide Circular Saw Blade,ISO9001 Circular Saw Disc Blades,GD10 tungsten carbide cutting disc |
||
Product Description

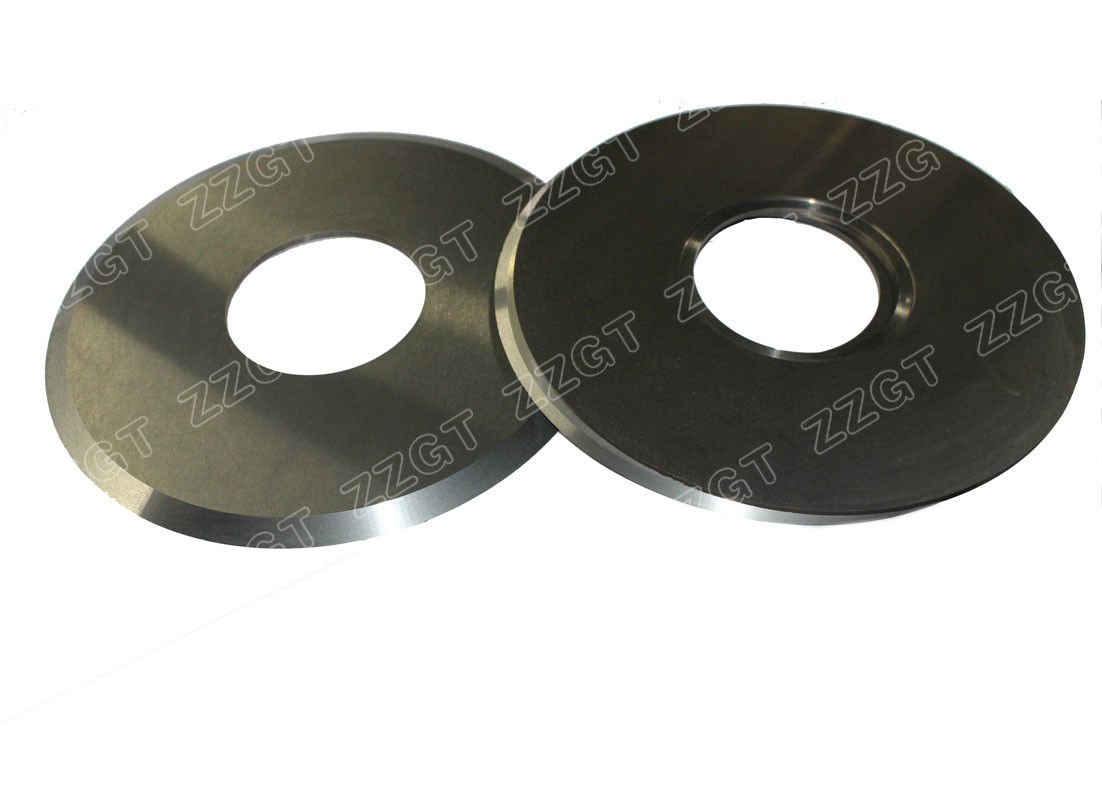

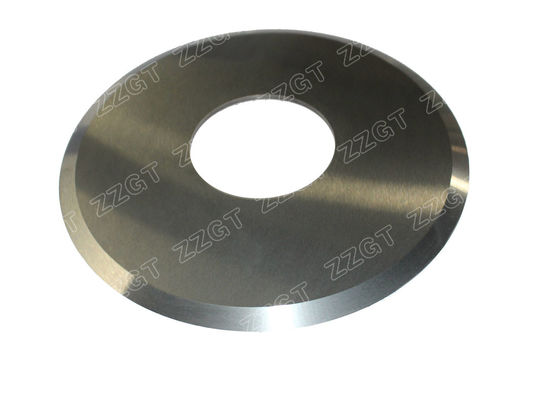

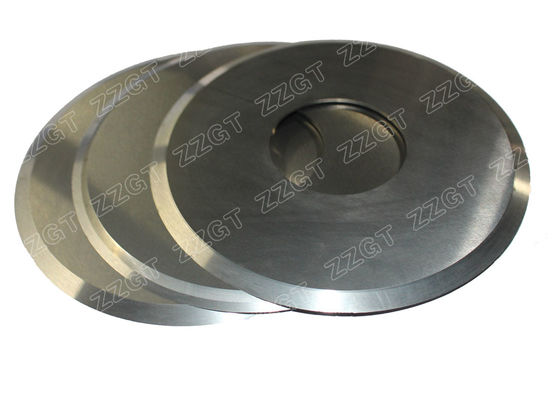

Ground GD10 Tungsten Carbide Circular Saw Disc Blades
Tungsten Carbide Round Circular Disc Saw Blade
Tungsten Carbide Disc Cutter
Tungsten Carbide Disc Cutters is also called round cutter, round blade, round knife. They are made by 100% vergine raw matetial. With high wear resistance and high bending resistance, they can be used for semifinisheing of chilled cast iron, non-ferrors metal alloys, semi-finished or finished hardened steel, alloy steel, etc.
Tungsten carbide dics cutter is the component of PCB lead cutting machines, used for cutting the legs of PCB's electronic components.cutting the pin lines/ lead wires of diode/ transistors on electronic ballasts or printed circuit board, with high density , hardness and bending strength . Also meet the ISO9001:2000 quanlity standard . There are many styles and grades , we can make them as your demand.
Tungsten Carbide disc cutter is special cutting instrument which utilizes abrasive powders and high speed, vibratory motion to cut discs, holes, cylinders, squares and other shapes from hard, brittle materials. Tungsten carbide cutter blade is widely used to cut paper,tile, tobacco, PCB board, aluminum, stainless steel, copper and other metals.
Product Description:
| Product Name | hard metal blade |
| Material | cemented carbide |
| Size | as the demands |
| Size Tolerance | standard tolerance |
| Color | Sliver grey |
| Recommend Grade | Good wear resistance |
| Grain Size | Fine/Middle Grain Size |
| Application | For Wear Parts |
| Processing Treatment | HIP sintering |
| Product Features | Long life, wear resistance |
| Certification | ISO9001-2015 |
Grade Performance
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
