• Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit
  • Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit
  • Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit
  • Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit
Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit

Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001:2015
Model Number: T3010A

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Material: Virgin Tungsten Carbide Grade: K30
Surface: Sand Blasted Application: Bush Hammer Tools
Service: 24hours OEM: Accepted
High Light:

K20 Tungsten Carbide Insert

,

K30 Tungsten Carbide Insert

,

k10 cemented carbide inserts

Product Description

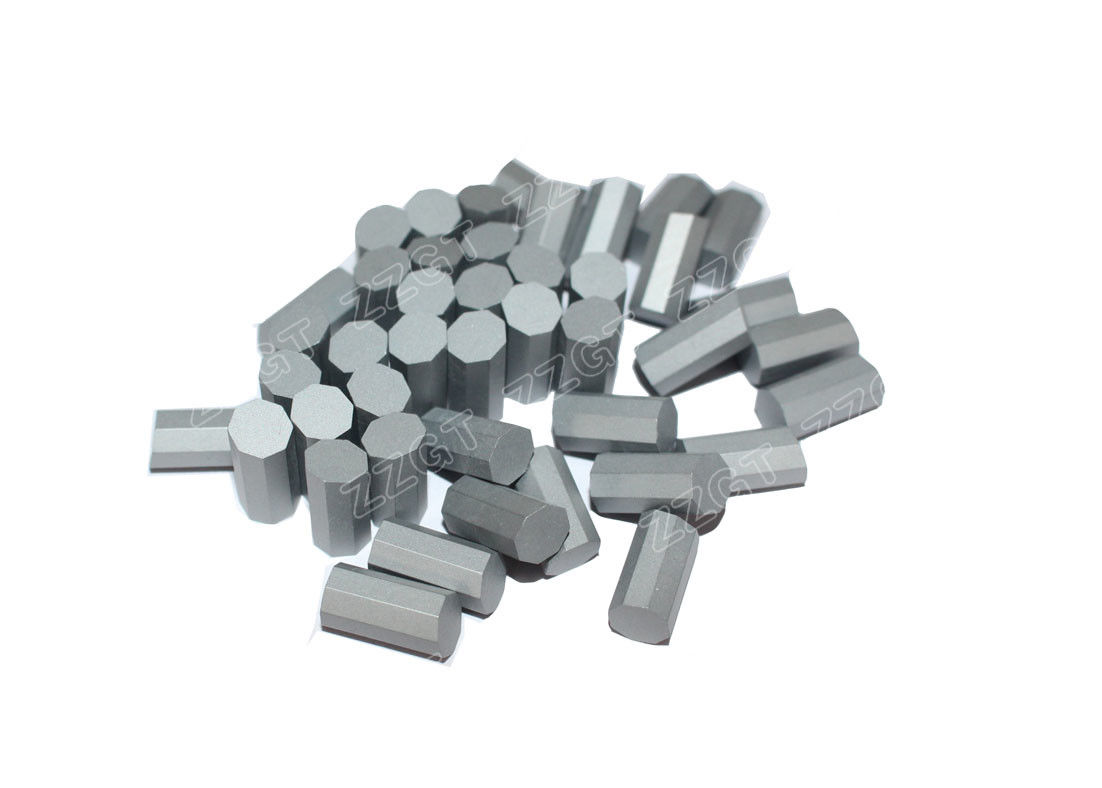

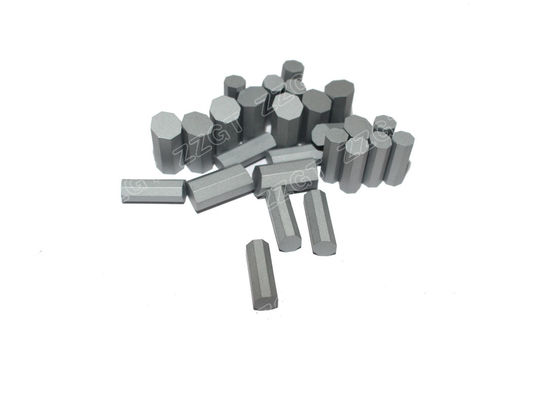

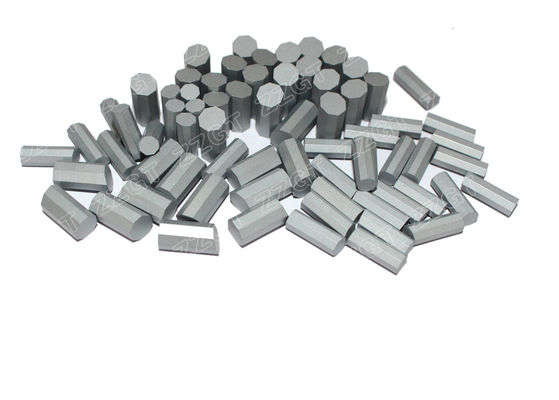

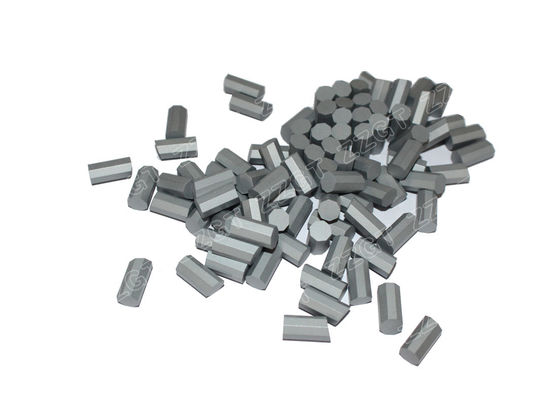

Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit

k30 k20 k10 hard-alloy octagonal insert with good wear resistance for embedding Drill Bit



Type: Octagonal prisms;

Material and technology: Tungsten Carbide in blanks; HIP sintering.

Grade: K10,K20,K30, etcs;

Application: Tungsten carbide bits with octagonal tips are normally used for coring in softer rock formations, overburden drilling, and cleaning of drill holes.





Grade Performance

Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







More Details:



Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit 0







Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc



Octagonal K30 K20 K10 Tungsten Carbide Insert For Embedding Drill Bit 1
