Durable GT01 Tungsten Carbide Products Welding Cutter With Wear Resistant
Product Details:
| Place of Origin: | ZHUZHOU CHINA |
| Brand Name: | GINGTE |
| Certification: | ISO9001:2015 |
| Model Number: | GT01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | step 1, wrapped carbide plate in paper to avoid carbide plate be broken step 2, put the carbide plate in inner small carton box step 3, put the inner box into outer carton and fill the carton with foamed plastic step 4, wrap the carton with packaging ta |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T per year |
|
Detail Information |
|||
| Size: | 34*14*45mm | Composition: | WC+Co,Ni,Ti,etc |
|---|---|---|---|
| Grade: | YG15 YG8 YG6 | Samples: | Available |
| Color: | Silver Gray | Advantage: | Wear Resistant Superior |
| High Light: | tungsten carbide alloy products,tungsten carbide material products |
||
Product Description

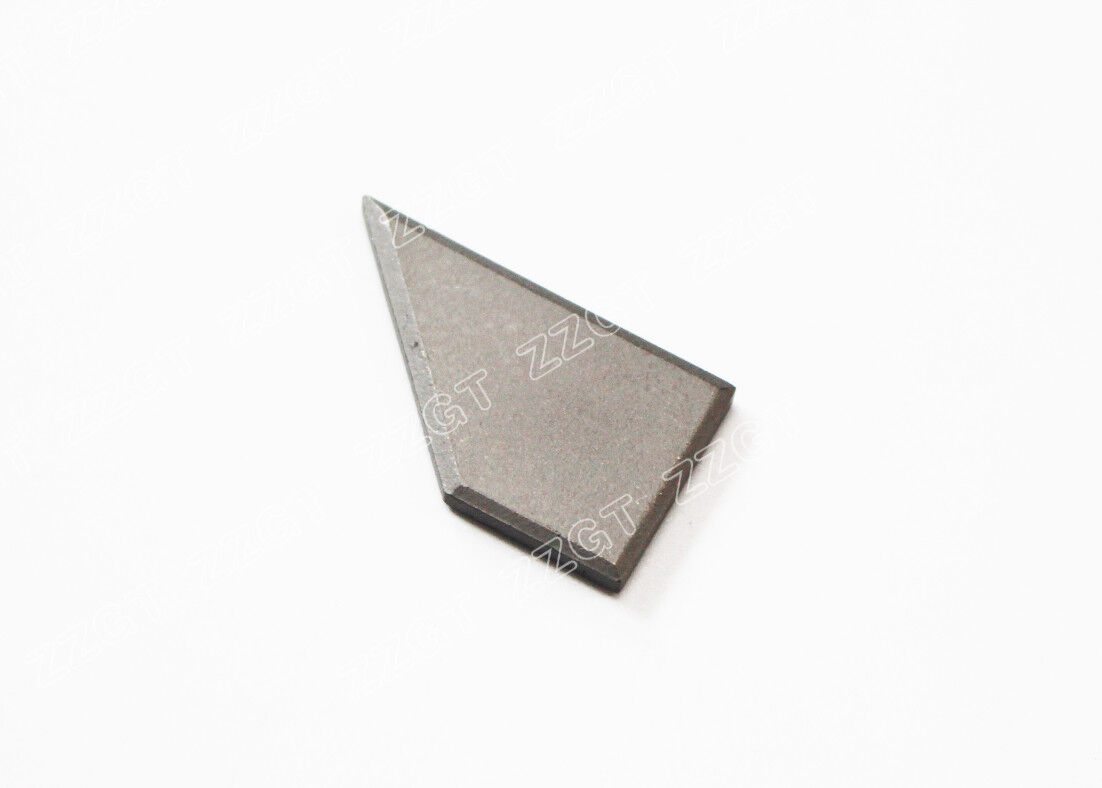

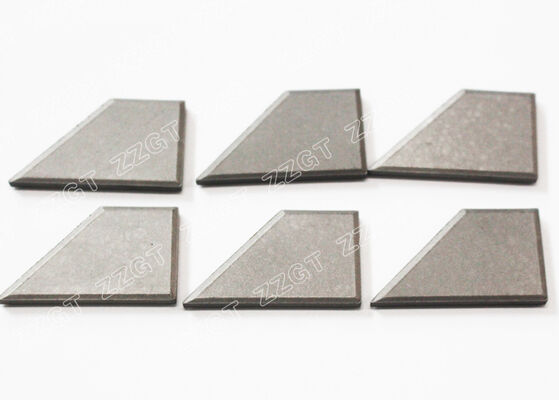

Durable GT01 Tungsten Carbide Products Welding Cutter With Wear Resistant
basic infomation
| Product Name | agricultural tungsten Carbide welding cutter for tilling and plowing machine |
| Material | tungsten carbide + cobalt |
| Size | 34mm*14mm*45mmor custom-made |
| Size Tolerance | OD: 0~-0.15 Thickness: 0~+0.1 |
| Color | gray |
| Recommend Grade | YG15C |
| Grain Size | Medium |
| Application | for tillage and plowing machine |
| Processing Treatment | OD grinded and polished in the two faces |
| Product Features | Durability,Wear resistance |
| Certification | ISO9001 |
grade & physical property
| YG15 |
14.00 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. | |
|
YG16 |
14.10-14.30 |
87.5 |
2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. | |
|
YG20 |
13.40-13.70 |
85.0 |
2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
application
cemented Carbide inserts/bits/tips are brazed into a specialty prepared groove at the bottom of tilling machine blade to substantially extend the wear life of the blades by as much as 20 times over steel alone, giving unmatched wear resistant properties, and making the blade ideal for high speed highway or airport runway plowing. Our inserts come in a wide variety of sizes and styles. Carbide tips are available with either a 25 degree and 40 degree plowing angle or flat plowing surface to assist in various applications. Special tungsten carbide snow plow parts, accessories are available upon request.
Key characteristics
• Optimum fracture resistance and breakage resistance
• High hardness
• Good wear and shock resistance
• High transverse rupture strength
• Easy to weld
