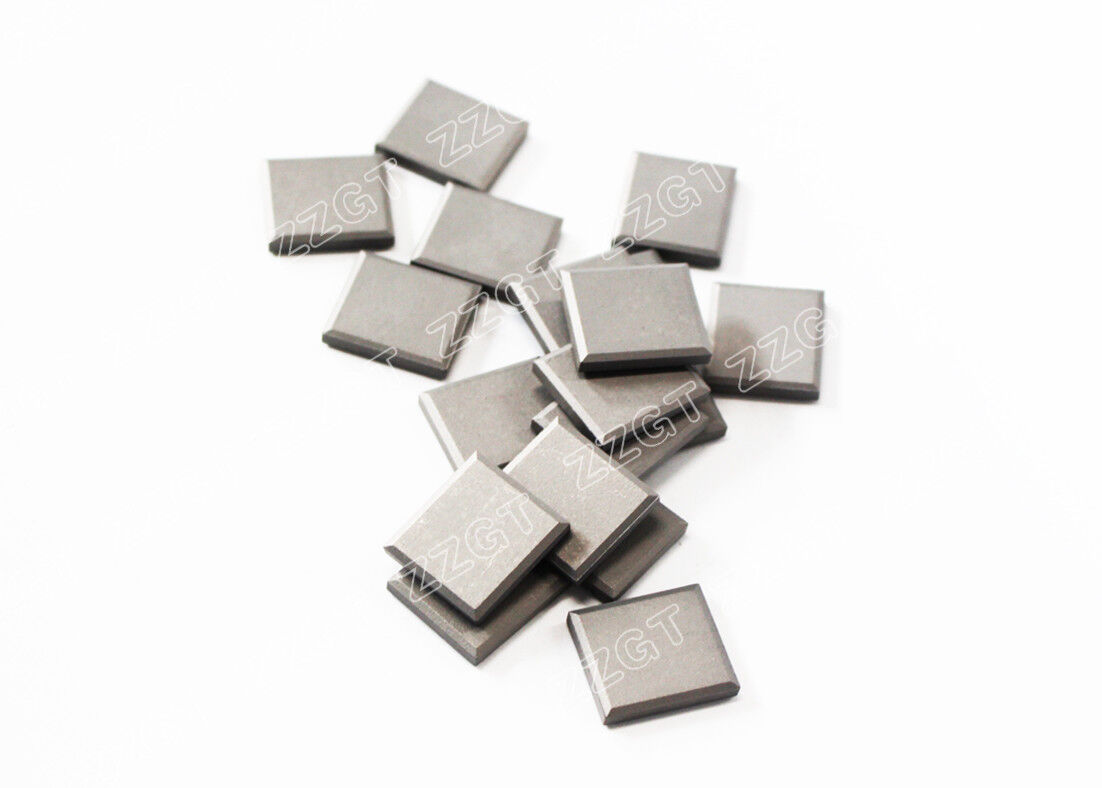

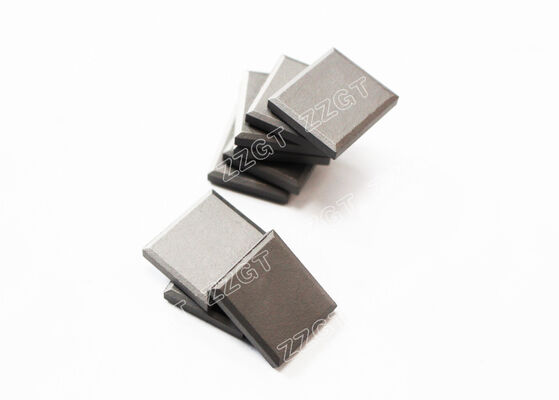

K40 YG15 Agricultural Tungsten Carbide Products Welding Cutter For Tilling Machine
Product Details:
| Place of Origin: | ZHUHZOU |
| Brand Name: | GINGTE |
| Certification: | ISO9001:2015 |
| Model Number: | GN03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10kgs |
|---|---|
| Price: | negotiable |
| Packaging Details: | step 1, wrapped carbide plate in paper to avoid carbide plate be broken step 2, put the carbide plate in inner small carton box step 3, put the inner box into outer carton and fill the carton with foamed plastic step 4, wrap the carton with packaging ta |
| Delivery Time: | 15work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 400T per year |
|
Detail Information |
|||
| Color: | Sliver Grey | Size: | 20*18*4mm |
|---|---|---|---|
| Composition: | Tungsten Carbide+cobalt | Usage: | Farm Plow And Tilling Machine |
| Hardness: | Hrc65 | Sample: | Available |
| Highlight: | tungsten carbide alloy products,cemented tungsten carbide products |
||
Product Description
K40 YG15 Agricultural Tungsten Carbide Products Welding Cutter For Tilling Machine
key characteristics:
• Optimum fracture resistance and breakage resistance
• High hardness
• Good wear and shock resistance
• High transverse rupture strength
• Easy to weld
production name:
K40 YG15 agricultural tungsten carbide welding cutter for tilling machine
application:
Carbide inserts/bits/tips are brazed into a specially prepared groove at the bottom of tilling machine blade to substantially extend the wear life of the blades by as much as 20 times over steel alone, giving unmatched wear resistant properties, and making the blade ideal for high speed highway or airport runway plowing. Our inserts come in a wide variety of sizes and styles. Carbide tips are available with either a 25 degree and 40 degree plowing angle or flat plowing surface to assist in various applications. Special tungsten carbide farm wear parts, accessories are available upon request.
grade & physical properties
| Product Name | Tungsten carbide wear parts | ||||
Grade |
Equal to ISO Category Number |
Density (G/Cm3) |
Hardness (HRA) |
Bend Strength (TRS/N/mm2) |
Application |
|
YG4C |
P10
P20
P30
K10
K20
K30 |
15.00 |
89.5 |
1800 |
Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
|
YG6 |
15.00 |
90 |
1700 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. | |
|
YG8 |
14.7 |
88.5 |
2200 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. | |
|
YG8C |
14.7 |
88.0 |
2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. | |
|
YG9C |
14.50 |
87.0 |
2400 |
Maily used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. | |
|
YG11C |
14.40 |
86.5 |
2450 |
Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. | |
|
YG13C |
14.30 |
86.0 |
2500 |
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. | |
|
YG15 |
14.00 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. | |
|
YG16 |
14.10-14.30 |
87.5 |
2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. | |
|
YG20 |
13.40-13.70 |
85.0 |
2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees. | |
