• High Hardness Tungsten Steel Alloy Needle Pins With 80 Degree Cutting Corner
High Hardness Tungsten Steel Alloy Needle Pins With 80 Degree Cutting Corner

High Hardness Tungsten Steel Alloy Needle Pins With 80 Degree Cutting Corner

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 5*53

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Tungsten Steel Surface Treatment: Rough Grinding
Usage: Scribing Marks Carbide Chemical Composition: WC+Cobalt
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air Roughness: 0.8Ra
Sample: Available Hardness: 90HRA
High Light:

cemented tungsten carbide products

,

tungsten carbide material products

Product Description

High Hardness Tungsten Steel Needle Pins with 80 Degree Sharp Corner

Product Quick Detail:

1. Product Name: Tungsten Carbide Needle Pins

2. Material: Tungsten Steel

3. Size: φ5*53 or as customer's size

4. Size Tolerance: +0.2/+0.3 tolerance or as customer's request

5. Cutting Angle: 80°

6. Recommend Grade: YG10X

7. Grain Size: Fine Grain

8. Application: scribing marks

9. Sintering Treatment: HIP sintering

10. Product Features: Long life, wear resistance

11. Certification: ISO9001

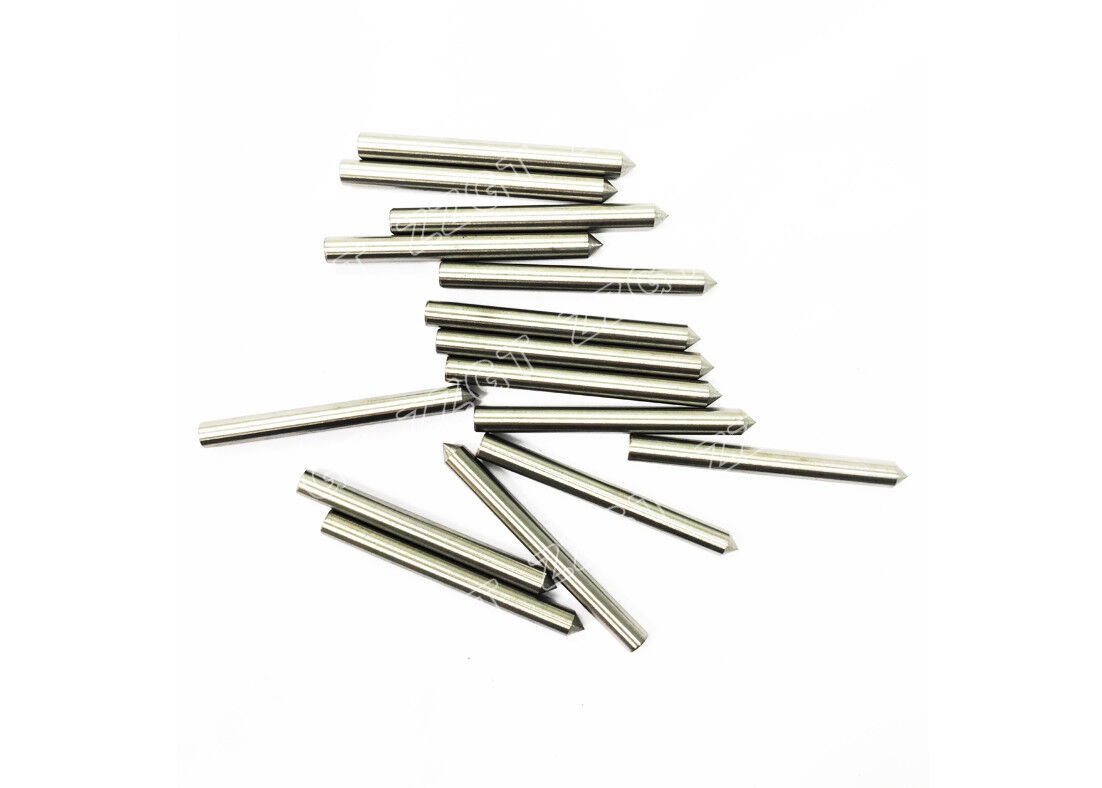

Tungsten Steel Needle Pin Pictures:

High Hardness Tungsten Steel Alloy Needle Pins With 80 Degree Cutting Corner 0





Prodcut Descriptions :

Our tungsten carbide needles pins are perfect for filing precise shapes into carbon fiber.
The needle pins are made from mild steel with tungsten carbide welded onto them. The needle pins will cut in both directions meaning they will remove material much quicker than conventional needles and leave a clean edge without fraying or cracking carbon fiber or other composites.

The tungsten carbide is incredibly hard wearing and will not lose its edge or wear off. These tools will provide you with years of faithful service and are a must have for detailed carbon fiber work.





Grade Performances:



Grade Hardness  T.R.S Density Performance & Application Recommended
HRA N/mm² g/cm3
YG6X 91.5 ≥3500 14.9 Has wear resistance higher than YG6,used for processing hard wood,original wood,aluminum section bar,brass rod and cast iron.
YG8 89.5 ≥3200 14.7 Wear and percussion resistance,used for processing hard wood,soft wood,ferrous and non-ferrous.
YG10X 90 ≥3650 14.4 Wear resistance and strength comparatively higher,suitable for processing cast iron,non-ferrous,metal and non-metallid materials.
YS2T 92 ≥3850 14.5 Fine carbide,High wear resistance,high bending strength,high resistance to bonding,high thermal strength. Machining of refractory alloys,stainless steel and high manganese steel,etc.

How to use it ?

Suggested Uses: This half round needle is one of the most useful shapes and is perfect for smoothing out the inside of curved cuts (like cuts for dials), cutting tools, drill bits and finishing recesses cut in dash panels for lights etc. It is also invaluable for finishing rounded slots in bonnet scoops or engine bay mods.


Open up a hole (if required) with a drill or wheel first then use the needle in a conventional way to finish a slot or edge, working gently and smoothly and we can offer high quality tungsten carbide bar and tungsten carbide needle according to customers’ requirement.







Sizes:

High Hardness Tungsten Steel Alloy Needle Pins With 80 Degree Cutting Corner 1

Sr.No Dimensions (mm)
D(mm) L(mm) ɑ
1 2 10 30°~90°
2 2.5 10 30°~90°
3 3 18 30°~90°
4 4 25 30°~90°
5 5 25~55 30°~90°
6 6 30~55 30°~90°
7 8 30~55 30°~90°



For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2015





Packing Process:

Packing Details : In cartons,wooden boxes,plastic boxes or customized.

High Hardness Tungsten Steel Alloy Needle Pins With 80 Degree Cutting Corner 2





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
