Subsoiler Carbide Blades Tungsten Carbide Products For Soil Tilling Machines
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | K30,K40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | paper box, wooden carton or according to customers demands |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/ year |
|
Detail Information |
|||
| Material: | Wolfram Carbide | Surface Treatment: | Blank |
|---|---|---|---|
| Grade: | YG20 | Trade Terms: | EX-WORKS,FOB,CIF |
| High Light: | tungsten carbide alloy products,tungsten carbide material products |
||
Product Description
Subsoiler Carbide Blades Tungsten Carbide Products For Soil Tilling Machines
Long service life subsoiler carbide blades for soil tilling machines
Description:

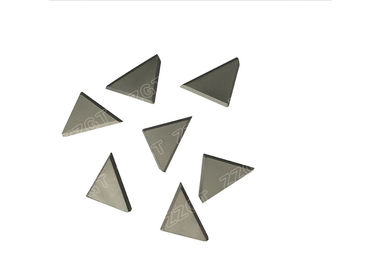

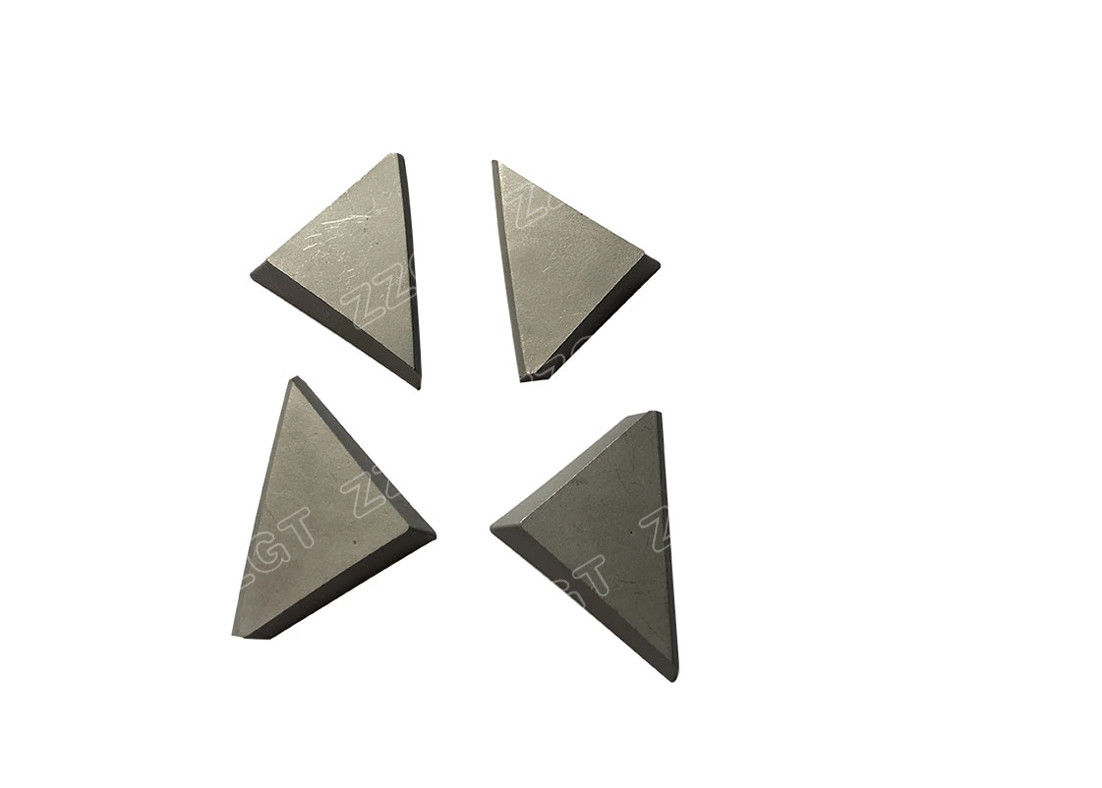

Tungsten carbide weld on tip
Carbide weld on tips for the tillage , cultivator , ploughs the suitable grades are YG11,YG8C, YG15 (k20,k30), As some agricultural wear parts have to work in severe environment, so just the castig with high strength is not enough, to protect the castings from quick worn , these grade will greatly increase the service life.
SubstantiallyTungsten carbide tools has longer service life than traditional steel tools.
Key characteristics:
• high reliability
• Easy to be welded
• Good impact and wear resistance
• Stable performance
• High cost-effective
• Long life time
Grade Performance:
Only grades of tungsten carbide specifically suited in terms of hardness and durability are utilized for these applications. These grades have especially long service lives and are highly resistant to breakage.
| Grade | Density | T.R.S | Hardness | Performance & Application Recommended |
| g/cm3 | MPα | HRA | ||
| YG6 | 14.9 | 2100 | 90 | or coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring. |
| YG8 | 14.7 | 2400 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YG8C | 14.7 | 2450 | 88.5 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG9C | 14.6 | 2450 | 87.8 | Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations. |
| YG10C | 14.4 | 2550 | 87 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YG11C | 14.4 | 2600 | 87 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
| YG13C | 14.2 | 2650 | 86.5 | Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations. |
| YG15C | 14 | 2700 | 86.5 | For oil cone drill bits, for medium soft and medium -hard rocks. |
| YG15 | 14 | 2500 | 87.5 | Good strength and less wear resistance,for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks. |
More Details:
Factory Equipments:
*Spray Drying system
*HIP sintering furnace
*500T Hydrolic pressing machine
*200T TPA pressing machine
*Cold Isostatic Press
*Wire cutting machine
* Universal grinding machine
*Electric Spark machine,etc
Contacts:
For further information, pls contact the below person:
Sales Engineer:Daisy Tian
E-mail: zzgt3@gtcarbide.com
It is highly suggested that you send the drawings or screw samples for our reference.
