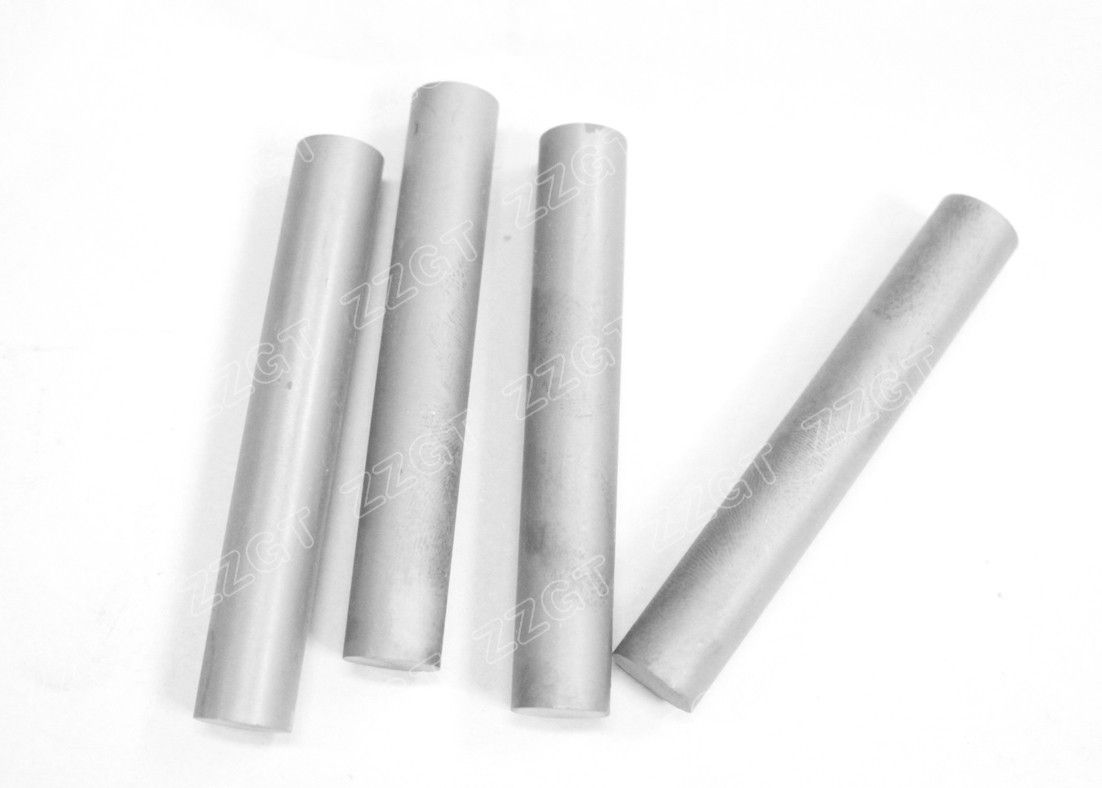

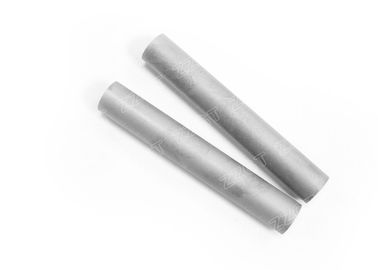

Wear Proof 10% Cobalt Tungsten Alloy Carbide Rod Blank Various Size And Grade
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | Φ12*75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Contains 100% Virgin Tungsten And Cobalt | Size: | Various Size And Grade For Choose |
|---|---|---|---|
| Service: | 24-hour Online After-sale Service | Quality: | High Hardness High Strength High Toughness |
| Technology: | Imported Equipment HIP Sintered | Packaging: | Standard Export Packing,or Per Customer Needs |
| High Light: | tungsten carbide bar,solid carbide rod |
||
Product Description
Wear Proof 10% Cobalt Tungsten Alloy Carbide Rod Blank Various Size And Grade
About us
Zhuzhou Gingte aim is to supply you with a consistently reliable, high-quality product and service that goes beyond our competitors’ standards around the globe.
We have no desire to be the cheapest option on the market only the passion to provide good quality tooling.
We want to be more than just your tooling supplier; we want to be your strategic partner.
- Good wear resistance
- Good corrosion resistance
- High toughness
- Extrusion method and HIP sintered
- Made from 100% virgin raw material
- Producted with advance equipments and process
- All products go through in-process and final inspection
- Stable and continuous production ability
Product Application:
- production of solid tungsten carbide cutting tools
- production processing PCB micro-drilling
- production tungsten carbide mandrel and other wear parts
| Product Name | Tungsten Carbide rods |
| Material | hard alloy |
| Size | φ12*75 or others available |
| Size Tolerance | blank |
| Color | As picture |
| Recommend Grade | K30 etc |
| Grain Size | fine grain size |
| Application | end mill |
| Processing Treatment | blank |
| Product Features | Long life,good wear resistance and high hardness. |
| Certification | ISO9001 |
Grade Performances:
Carbide Rods Grades for Moulds
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
| GF8 | K30 | 92 | 8 | 1.6 | 14.7 | 90 | 75.9 | 1400 | ≥3500 | Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools. |
| GF20 | K40 | 80 | 20 | 1.2 | 13.7 | 84.5 | 66 | 900 | ≥4200 | High strength,mainly used for stamping tool can withstand great pressure. |
Carbide Rods Grades for Cutting Tools
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
| GF6X | K10 | 94 | 6 | 0.8 | 14.9 | 91.5 | 78.4 | 1600 | ≥3200 | Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel. |
| YL10.2 | K30 | 88 | 10 | 0.6 | 14.4 | 91.5 | 79.3 | 1650 | ≥3850 | With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc. |
Size Options:
| Type | OD(MM) | L(MM) | Un-ground tolerance | Fine ground tolerance | |
| φ1~φ4×L | 1~4 | 38.5 50 100 330 | -0.00/+0.30 | -0.00+L×1% | h6 |
| φ5~φ40×L | 5~40 | 100 310 330 | -0.00/+0.6 | ||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Display and Advantages:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
