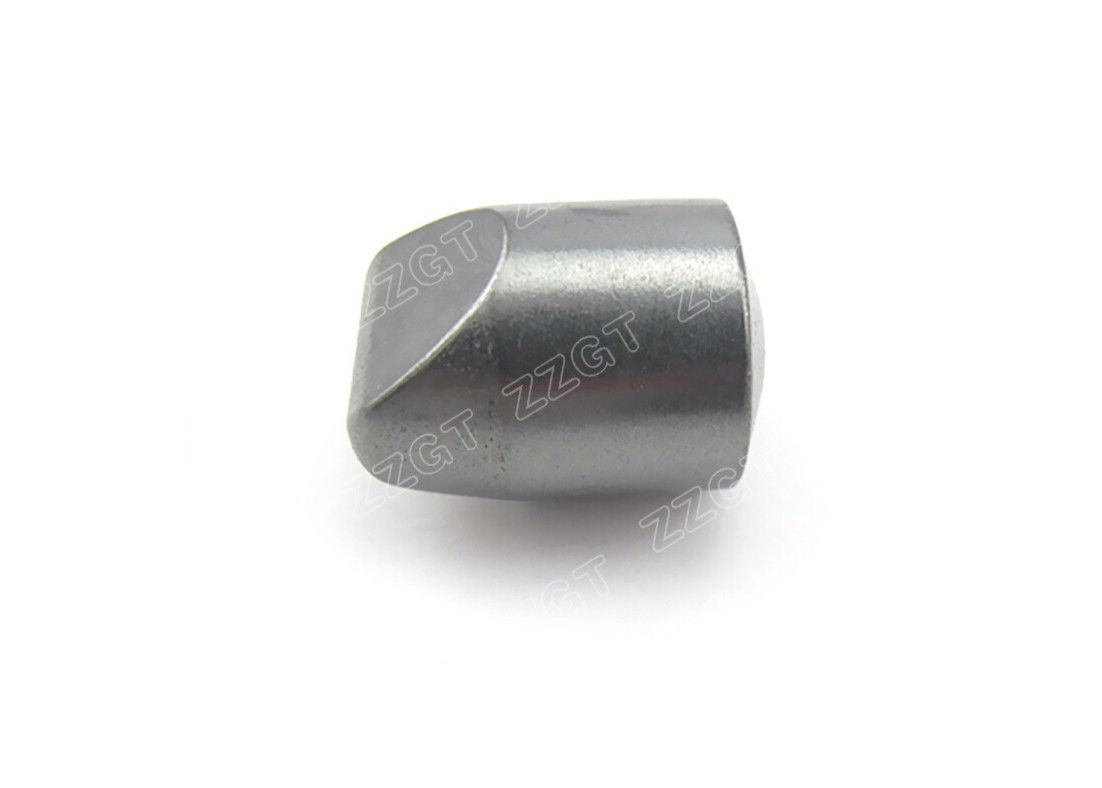

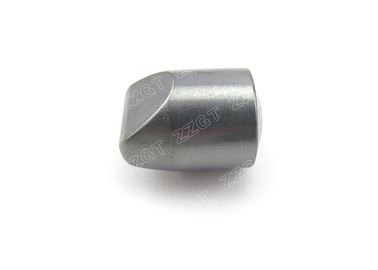

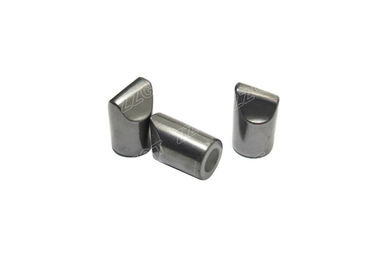

K20 Wedge Shape Cemented Carbide Mining Tips For Tricone Drill Oil Well
Product Details:
| Place of Origin: | ZHUHZOU |
| Brand Name: | GINGTE |
| Certification: | ISO009:2015 |
| Model Number: | GK07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | step 1, wrapped carbide plate in paper to avoid carbide plate be broken step 2, put the carbide plate in inner small carton box step 3, put the inner box into outer carton and fill the carton with foamed plastic step 4, wrap the carton with packaging ta |
| Delivery Time: | 10-20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 600t per year |
|
Detail Information |
|||
| Name: | Wedge Shape Cemented Carbide Mining Tips | Process: | HIP Sintering |
|---|---|---|---|
| Advantage: | High Performance | Color: | Grey |
| Application: | Tricone Drill Oil Well | Composition: | Tungsten Carbide & Cobalt |
| Hardness: | HRC58 - HRC63 | Models: | Various Accorrding To Your Drawings |
| High Light: | cemented tungsten carbide products,tungsten carbide material products |
||
Product Description
K20 Wedge Shape Cemented Carbide Mining Tips For Tricone Drill Oil Well
production introduce:
Carbide ball tooth has superior wear resistance and impact toughness, and similar products with higher speed of drilling and digging.
Series of ball tooth bit passivation using cycle is long,
not to grind the life span of about the same diameter grinding
head drill bit 5-6 times of life, is beneficial to save auxiliary working hours, physical labor and reduce workers to speed up the project
Carbide ball tooth due to its high hardness of the cemented carbide and other characteristics are widely used in mining and quarrying and cutting process,
also may be placed on a heavy excavators used in bit
|
Product Name
|
Carbide mining tips
|
Material
|
100% Raw Material
|
|
Color
|
Metallochrome
|
Shape
|
Customized |
|
Size
|
Customer's Request
|
Certification
|
ISO9001
|
|
Usage
|
Fast Cutting Speed
|
Type
|
Tungsten Carbide
|
|
Chemical composition
|
WC+CO
|
Tolerance
|
Customer's Request
|
|
Standard
|
GB
|
MOQ
|
10 kg
|
|
Lead time
|
5-15 days
|
Price
|
USD 30-56Per KG
|
|
Working life
|
Long Work Time
|
Port
|
Any port in china
|
grade & performance:
| Category | Grade | Density (g/cm³) | Hardness (HRA) | TRS(Mpa) | Application Recommended |
| For geological and coal mining | YG4C | 15.13 | 90.2 | 1920 | Suitable for making geological propecting drill bits and mining inserts for light electrical drills for drilling ssoft rock and coal formations and drill bits for drilling un-silicated rock formations. |
| YG6 | 14.96 | 91.1 | 2200 | ||
| YG8 | 14.77 | 89.4 | 2350 | ||
| YG8C | 14.65 | 88.2 | 2560 | ||
| YK15 | 14.60 | 88 | 2600 | Mainly used for inserts for heavy duty rock excavating machines for drilling hard and super hard rock for mations and it can also be used for making tri-cone button bits. | |
| YK20 | 14.52 | 87.3 | 2800 | ||
| YG11C | 14.35 | 87.9 | 2850 | Mainly used for making buttons and tri-cone and percuss drill bits for drilling hard and super hard rock formation and it can also be used for making inserts in other drill bits. | |
| For Oil field | YK05 | 14.80 | 90.1 | 2600 | Mainly used for making small and medium sized buttons to used for tri-cone and percussive drill bits for drilling soft and medium hard rock formations and it can also be used for cemented carbide inserts for other drilling bits. |
| YK10 | 14.60 | 88.8 | 2500 | ||
| YK25 | 14.50 | 87.6 | 3000 | Mainly used for buttons to be used in tri-cone drill bits and percussive buttons bits or drilling medium hard and hard rock formations and it can also be used for carbide inserts for other drilling bits. | |
| YK25.1 | 14.40 | 88.2 | 2800 | ||
| YK50 | 14.12 | 85.0 | 2900 | For macking carbide buttons in tri-cone and percussive drill bits for drilling hard super hard rock formations and it can also be used for inserts for other drilling bits. |
application:
production processing:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
