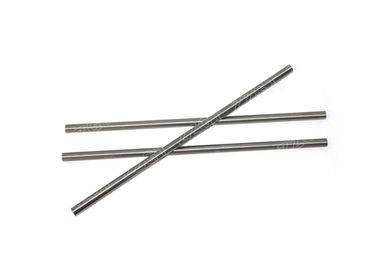

No Pore Pressure Sintered Tungsten Carbide Round Bar / Tungsten Alloy Rod
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 8*330 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Contains 100% Virgin Tungsten And Cobalt | Size: | Various Size And Grade For Choise |
|---|---|---|---|
| Service: | 24-hour Online After-sale Service | Quality: | Excellent Wear Resistance And Strong Ridiging |
| Packaging: | Standard Export Packing,or Per Customer Needs | Name: | Tungsten Carbide Round Rods |
| Highlight: | cemented carbide rods,solid carbide rod |
||
Product Description
PRODUCT QUICK DETAILs:
1. Adopt advanced automatic extrusion equipment to product
2. HIP sintering
3. Materials contains 100% virgin tungsten and coblat
Cemented carbide tungsten rods supplies hearly all kinds of products made of tungsten carbide.e.g.drawing dies,seals,bars ,rods,buttom rings,blades,blocks and soon.Widely know as one kind of carbide cutting tools.It is available for different grinding geometric parameters and suitable for both cutting meterial and nonmetal materials ,also it can be applied to conventional ,semi-automatic lathe,automatic lathe and planning machine to work grooves and operate cutting etc.We have many years experience to supply our clients the mentioned high-quality product with most competitve price .It is always our principles to offer our best service to any clients at any time.
Product Advantages :
1. Good wear resistance
2. Good corrosion resistance
3. High toughness
4. Automatic extrusion method and HIP sintered
5. Made from 100% virgin raw material
6. producted with advance equipemts and process
7. All products go through in-process and final inspection
8. Stable and continuous production ability
| Product Name | Tungsten Carbide rods |
| Material | cemented carbide |
| Size | φ8*330 or others available |
| Size Tolerance | h6 or as customer's request |
| Color | As picture |
| Recommend Grade | K30 etc |
| Grain Size | Medium Grain |
| Application | for Dies rods |
| Processing Treatment | Clean ground and polished or as customer request. |
| Product Features | Long life,good wear resistance and high hardness. |
| Certification | ISO9001 |
Grade Performances:
Carbide Rods Grades for Moulds
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
| GF8 | K30 | 92 | 8 | 1.6 | 14.7 | 90 | 75.9 | 1400 | ≥3500 | Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools. |
| GF20 | K40 | 80 | 20 | 1.2 | 13.7 | 84.5 | 66 | 900 | ≥4200 | High strength,mainly used for stamping tool can withstand great pressure. |
Carbide Rods Grades for Cutting Tools
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
| GF6X | K10 | 94 | 6 | 0.8 | 14.9 | 91.5 | 78.4 | 1600 | ≥3200 | Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel. |
| YL10.2 | K30 | 88 | 10 | 0.6 | 14.4 | 91.5 | 79.3 | 1650 | ≥3850 | With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc. |
Size Options:
| Type | OD(MM) | L(MM) | Un-ground tolerance | Fine ground tolerance | |
| φ1~φ4×L | 1~4 | 38.5 50 100 330 | -0.00/+0.30 | -0.00+L×1% | h6 |
| φ5~φ40×L | 5~40 | 100 310 330 | -0.00/+0.6 | ||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.

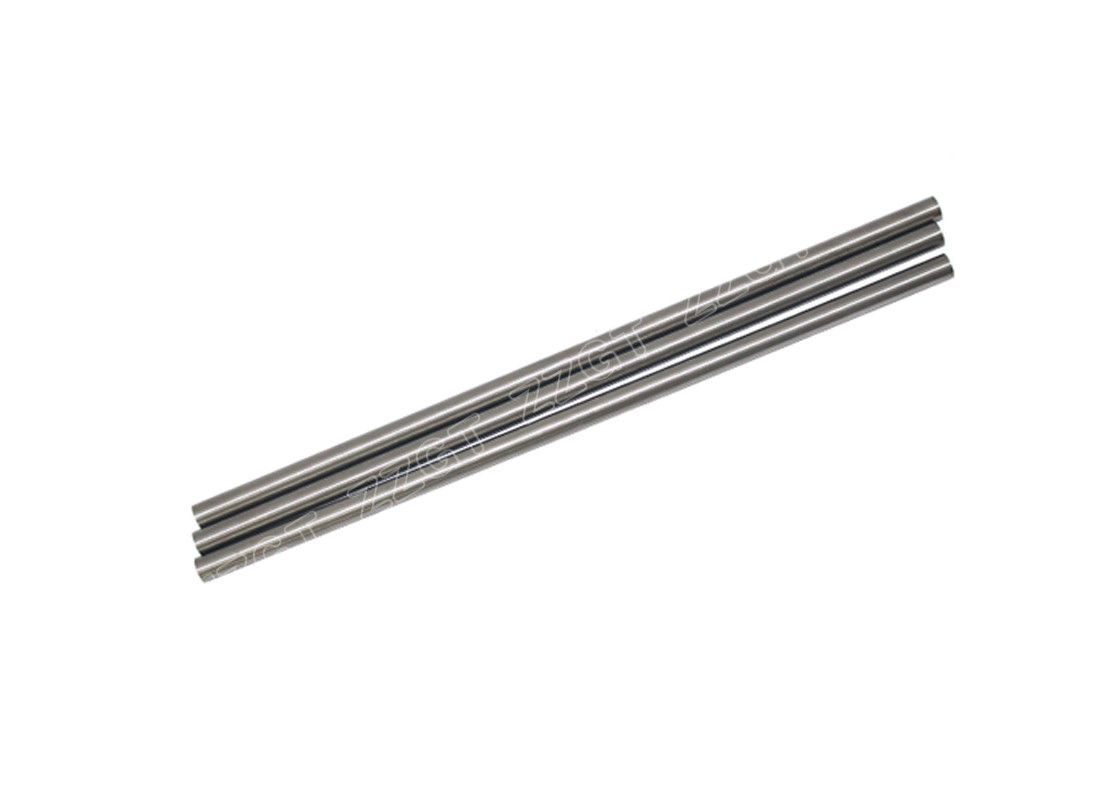

Product Display and Advantages:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
