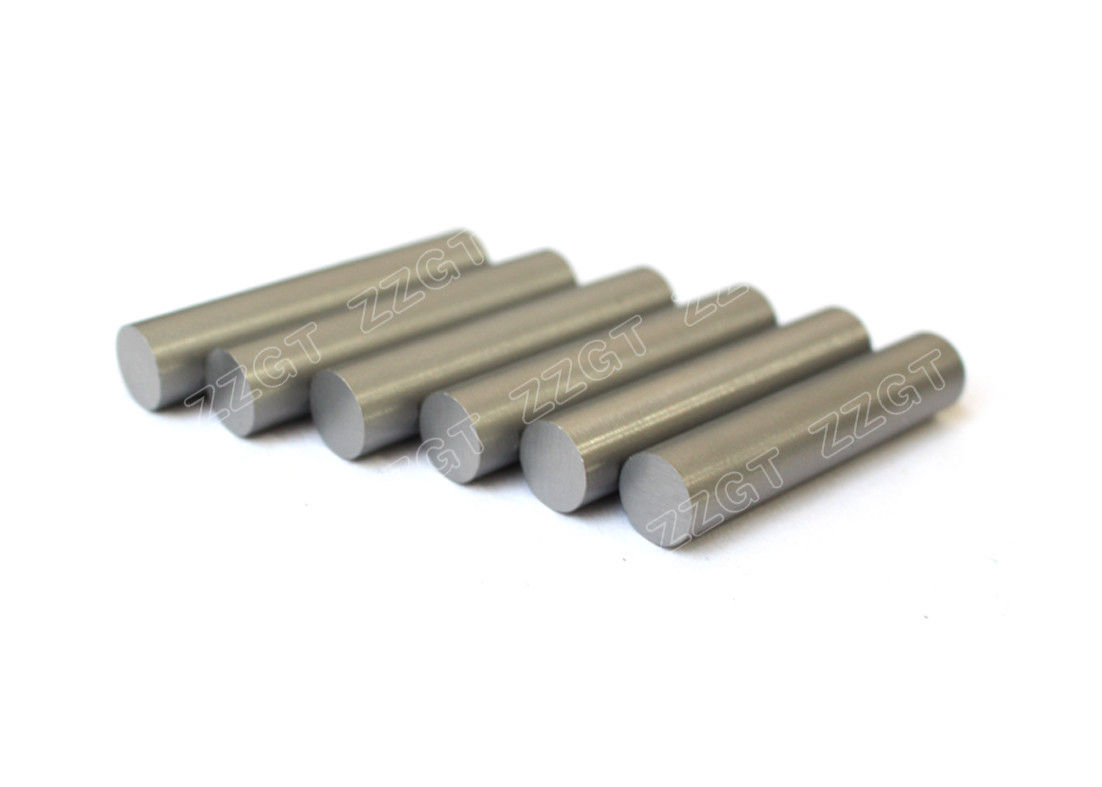

Dies Rods Use Cemented Carbide Round Bar No Pore Pressure Sintering Type
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 10*80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Contains 100% Virgin Tungsten And Cobalt | Size: | Item Complete Large Stock |
|---|---|---|---|
| Service: | 24-hour Online After-sale Service | Technology: | No Pore Pressure Sintering |
| Quality: | High Strength High Hardness High Toughness | Packaging: | Standard Export Packing,or Per Customer Needs |
| High Light: | solid carbide rod,tungsten carbide composite rods |
||
Product Description
Dies Rods Use Cemented Carbide Round Bar No Pore Pressure Sintering Type
Product Description:
We supply premium grade tungsten carbide rod from stock in unground ,centerless ground and polished form.Remmended Grade for tungsten carbide rod:YG6,YG8,YG6X,YG012,YG013,YG8A etc.Tungsten carbide rod applications include drill bits, end mills ,and reamers .custom diameters and length are also available in these grades as well as metric sizes.We are ISO9001 certified manufacturer of tungsten carbide rod for turning ,milling,drilling ,grooving and threading applications .We have 10 years of experience in grade development,manufacturing, and application engineering assure custormers the best choose for their unique requirements .Our advanced pressing and shaping system give us the flexibility to offer numerous grades and sizes of tungsten carbide rods .Tungsten carbide rods are mostly applied for end mill drill with sub-micron grain grade YG10X,for non-ferrous precision cutting ans wood cuttng with sub-micron grain grade YG6X,and for fibreglass reinforced plastics ,titanium alloys ,hardened steel with ultra-fine grain grade YG8X,ect.
- No Pore Pressure Sintering
- Material contains 100% virgin tungsten and cobalt
- High Strength High Hardness High Toughness
- Item Complete stock available
- factory direct sale customized size
- Well-trained sales can give you professional suggestions on product
- Small order is accepeted ,but not for free
- Our aim is to make every customer satisfied and we can be WIN-WIN
| Product Name | Tungsten Carbide rods |
| Material | cemented carbide |
| Size | φ10*80 or others available |
| Size Tolerance | h6 or as customer's request |
| Color | As picture |
| Recommend Grade | K40 etc |
| Grain Size | Medium Grain |
| Application | for Dies rods |
| Processing Treatment | Clean ground and polished or as customer request. |
| Product Features | Long life,good wear resistance and high hardness. |
| Certification | ISO9001 |
Grade Performances:
Carbide Rods Grades for Moulds
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
| GF8 | K30 | 92 | 8 | 1.6 | 14.7 | 90 | 75.9 | 1400 | ≥3500 | Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools. |
| GF20 | K40 | 80 | 20 | 1.2 | 13.7 | 84.5 | 66 | 900 | ≥4200 | High strength,mainly used for stamping tool can withstand great pressure. |
Carbide Rods Grades for Cutting Tools
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
| (μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
| GF6X | K10 | 94 | 6 | 0.8 | 14.9 | 91.5 | 78.4 | 1600 | ≥3200 | Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel. |
| YL10.2 | K30 | 88 | 10 | 0.6 | 14.4 | 91.5 | 79.3 | 1650 | ≥3850 | With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc. |
Size Options:
| Type | OD(MM) | L(MM) | Un-ground tolerance | Fine ground tolerance | |
| φ1~φ4×L | 1~4 | 38.5 50 100 330 | -0.00/+0.30 | -0.00+L×1% | h6 |
| φ5~φ40×L | 5~40 | 100 310 330 | -0.00/+0.6 | ||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.

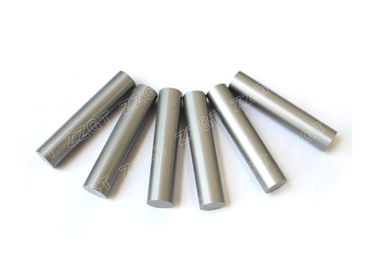

Product Display and Advantages:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
