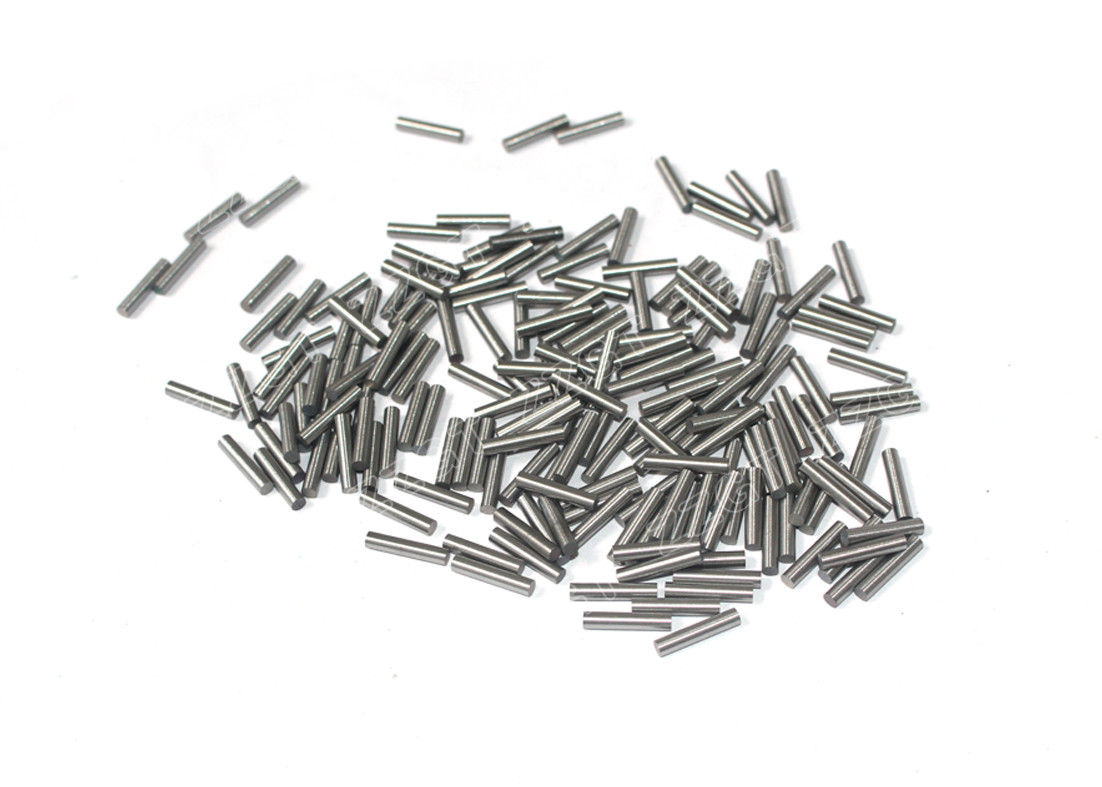

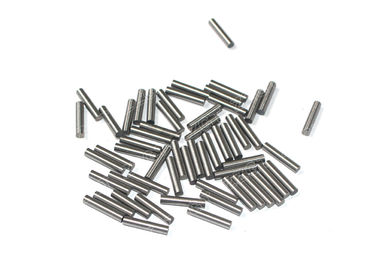

Solid Tungsten Carbide Rod , 6-10MPa Pressure Sintering Carbide Round Bar
Product Details:
Place of Origin: | Zhuzhou,Hunan,China |
Brand Name: | Gingte Li |
Certification: | ISO9001:2015 |
Model Number: | k10 4*20 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10KGs |
---|---|
Price: | negotiable |
Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as |
Delivery Time: | 7-15 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 400 tons/year |
Detail Information |
|||
Material: | Contains 100% Virgin Tungsten And Cobalt | Size: | Various Size And Grade For Choise |
---|---|---|---|
Service: | 24-hour Online After-sale Service | Technology: | HIP Sintering And Adopt Advanced Automatic Extrusion Equipment |
Shipments: | Fast Delivery In 7 To 15 Days | Quality: | High Strength High Hardness High Toughness |
High Light: | cemented carbide rods,solid carbide rod |
Product Description
- No Pore Pressure Sintering
- Material contains 100% virgin tungsten and cobalt
- High Strength High Hardness High Toughness
- Item Complete stock available
- factory direct sale customized size
- Well-trained sales can give you professional suggestions on product
- Small order is accpeted ,but not for free
- Our aim is to make every customer satified and we can be WIN-WIN
Product description:
Product Name | Tungsten Carbide rods |
Material | cemented carbide |
Size | φ4*20 or others available |
Size Tolerance | h6 or as customer's request |
Color | As picture |
Recommend Grade | K10 etc |
Grain Size | Fine Grain Size |
Application | for cutting tool |
Processing Treatment | Clean ground and polished or as customer request. |
Product Features | Long life,good wear resistance and high hardness. |
Certification | ISO9001 |
Grade Performances:
Carbide Rods Grades for Moulds
Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
(μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
GF8 | K30 | 92 | 8 | 1.6 | 14.7 | 90 | 75.9 | 1400 | ≥3500 | Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools. |
GF20 | K40 | 80 | 20 | 1.2 | 13.7 | 84.5 | 66 | 900 | ≥4200 | High strength,mainly used for stamping tool can withstand great pressure. |
Carbide Rods Grades for Cutting Tools
Grade | ISO Grade | WC % | CO % | Grain Size | Density | Hardness | T.R.S | Applications | ||
(μm) | g/cm3 | HRA | HRC | HV | N/mm² | |||||
GF6X | K10 | 94 | 6 | 0.8 | 14.9 | 91.5 | 78.4 | 1600 | ≥3200 | Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel. |
YL10.2 | K30 | 88 | 10 | 0.6 | 14.4 | 91.5 | 79.3 | 1650 | ≥3850 | With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc. |
Size Options:
Type | OD(MM) | L(MM) | Un-ground tolerance | Fine ground tolerance | |
φ1~φ4×L | 1~4 | 38.5 50 100 330 | -0.00/+0.30 | -0.00+L×1% | h6 |
φ5~φ40×L | 5~40 | 100 310 330 | -0.00/+0.6 |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Display and Advantages:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
