• Tungsten Carbide Wire Drawing Dies , Unground Surface Carbide Drawing Dies

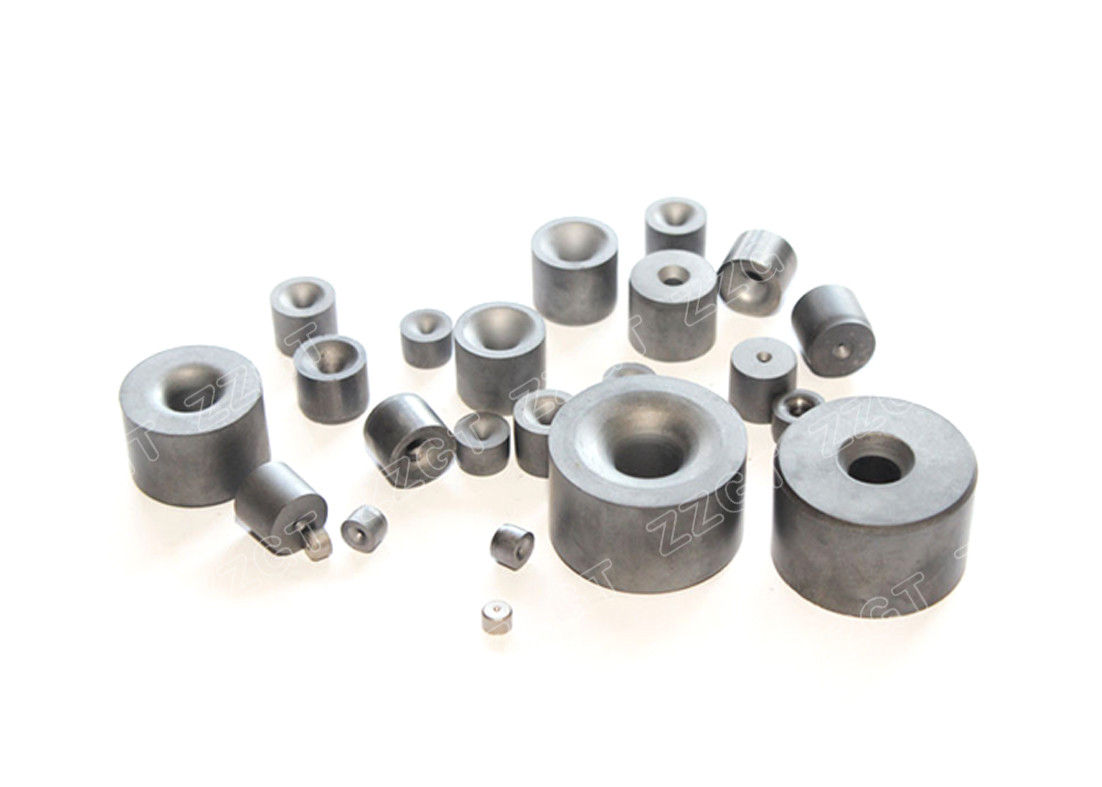

Tungsten Carbide Wire Drawing Dies , Unground Surface Carbide Drawing Dies

Tungsten Carbide Wire Drawing Dies , Unground Surface Carbide Drawing Dies

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 16*4.7*14 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Cemented Carbide Purpose: Draw Metal Wires
Chemical Composition: WC+Cobalt Roughness: 3.2 Or Others
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air Grain Size: 1.6
TRS: ≥3400 Density: 14 G/cm³
Concentricity: 0.4
High Light:

dies for wire drawing

,

tungsten carbide drawing dies

Product Description

Tungsten Carbide Wire Drawing Dies , Unground Surface Carbide Drawing Dies

Tungsten Carbide Wire Drawing Dies YG15 Unground Surface Drawing Dies 3.2 Roughness





Product Quick Detail :

1. Product Name: Tungsten Carbide Wire Drawing Dies

2. Material: cemented Carbide

3. Size: 16*4.7*14 or as customer's request

4. Size Tolerance: free tolerance or as customer's request

5. Shape: Round Shape with different shape hole

6. Recommend Grade: YG15 etc

7. Grain Size: Medium Grain

8. Sintering: HIP sintering

9. Surface Treatment: unground and sandblasting

10. Product Features: high hardness and good toughness

11. Certification: ISO9001





Product Features:

Cemented carbide drawing dies are typically used to draw wire, rod, bar, and tube. Commonly drawn materials include steel alloys, aluminum alloys, and copper alloys. We can supply the cemented carbide dies fully finished or rough cored - cased or uncased, to meet client's exact requirements.

Cemented carbide dies have a unique combination of high hardness and good toughness so that they can be used for drawing of wire, rod, bar, tubes and punching of watch component, musical instrument reed, small steel ball, stud, nut and rivet.





Various Grades for Options:

Grade Density
(g/cm³)
Hardness
(HRA)
TRS
(MPa)
Applications Recommended
YG6X 14.95 91.5 ≥3200 For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress.
YG6 14.95 90.5 ≥3000 For drawing steel, nonferrous alloy bars of less than Dia.20.00mm under more stress and also for drawing tubes of less than Dia.10.00mm.
YG8 14.8 89.5 ≥3000 For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts.
YG10 14.5 88.5 ≥3200
YG15 14 87 ≥3400 For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting.







Various Sizes for Options:

TYPE D H d h α°
S11- 8 6 0.3-1.0 0.3-0.6 14°
10 8 0.7 0.6 14°
13 10 0.4-2.8 0.3-1.6 16°
15 13 0.5-3.0 0.3-1.4 16°
16 14 0.4-3.8 0.3-1.8 16°
20 17 1.2-4.7 2.0-2.6 18°
21 17 1.8-5.7 1.2-3.0 18°
22 18 1.7-6.4 1.2-3.0 18°



Type D H d h α°
S13- 25 18 5.8 2.5 20°
28 19 6.0-10.9 3.5
27 18 4.7-6.7 2.5
28 20 3.7-9.6 2.5
30 21 2.8-12.0 2.5-3.5
35 24 9.6-12.0 5.0
28 24 9.6-15.5 5.0
40 25 9.0-15.5 5.0
40 28 10.3 6.0
50 28 16.5-24.5 5.5-6.0
60 35 25.5-34.5 7.0

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008





Why Choose Us ?

1. Proffessional cemented carbide manufacturer over 10 years.

2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.

3. Annual production capacity over 400tons.

4. More than 10000 sets of exisiting non-standard molds,fast delivery!

5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.

6. ISO9001:2008 Quality Management System.







Packing Process:

Tungsten Carbide Wire Drawing Dies , Unground Surface Carbide Drawing Dies 0





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
