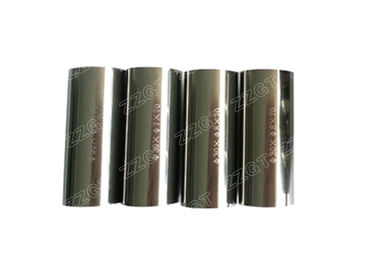

Tungsten Steel Carbide Cold Heading Dies / Forging Die YG15 YG18 YG20 Grade Optional
Product Details:
| Place of Origin: | Zhuzhou city, Hunan province, China |
| Brand Name: | Gingte |
| Certification: | ISO9001:2015 |
| Model Number: | Various types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Kilograms |
|---|---|
| Price: | negotiable |
| Packaging Details: | Paper, then paper boxes, then exported wooden cartons or paper cases, or packed as customers' requirement. |
| Delivery Time: | Generally 7-25 days |
| Payment Terms: | L/C, T/T , Western Union, MoneyGram, E-Checking |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Product Name: | Cemented Carbide Cold Heading Die | Material: | WC+CO |
|---|---|---|---|
| Surface Treatment: | Polished | Usage: | Impact Resistance Forging Dies |
| Advantage: | Direct Manufacturer | Trade Term: | FOB & EXW & CIF |
| High Light: | tungsten carbide products,tungsten carbide drawing dies |
||
Product Description

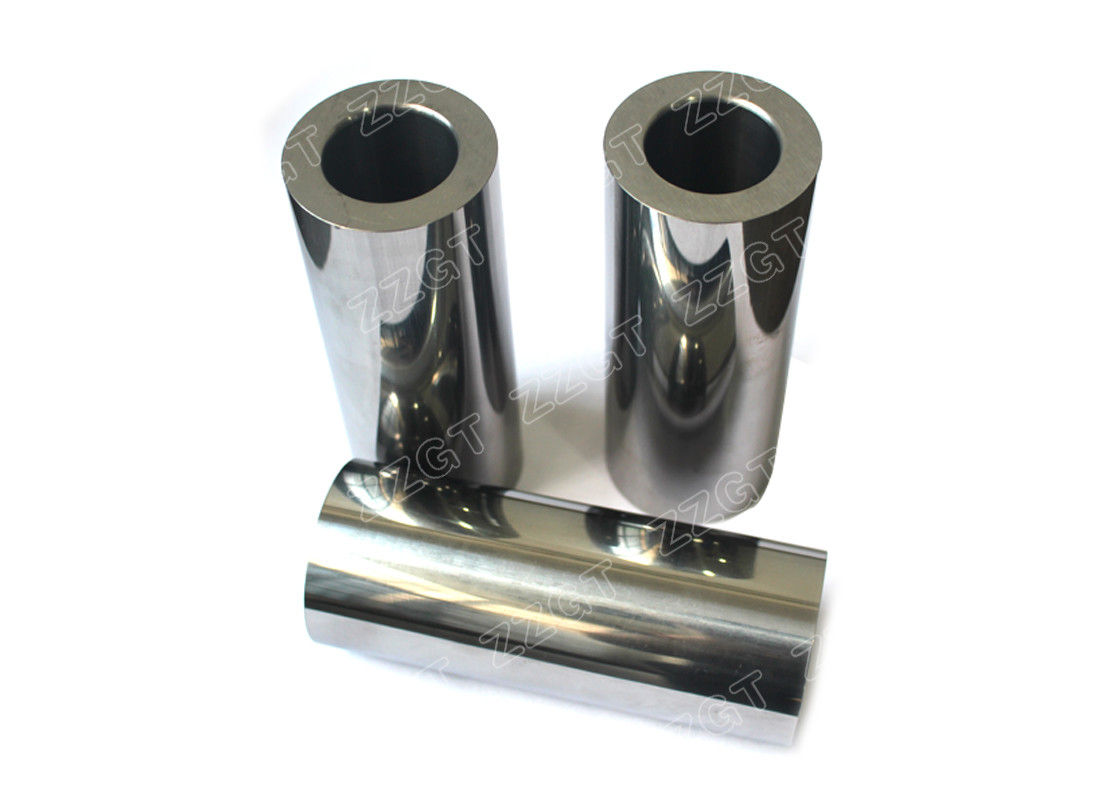

Tungsten Steel Carbide Cold Heading Dies / Forging Die YG15 YG18 YG20 Grade Optional
Tungsten Steel Carbide Cold Heading Dies / Forging Die YG15 YG18 YG20 Grade Optional
Quick Details :
Gingte is the professional manufacturer of cemented carbide dies including cemented carbide drawing dies and cemented carbide punching dies with high quality and reasonable price. Cemented carbide punching Dies Blanks are often used for punching of watch component, musical instrument reed, small steel ball, stud, nut and rivet.
Grade Performance:
| Tungsten Carbide Cold Forging/heading Dies | ||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended |
| g/cm³ | MPa | HRA | ||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits, cut medium soft and hard rocks; debarking and cutting of frozen wood, soft wood and original wood. |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Size Options:
| Type | OD | ID | H | Tolerance | ||
| OD | Id | H | ||||
| φD10~14×φd | 10~14 | 1.0～5.0 | 15～40 | D×+3% | d×-3% | H×+3% |
| φD15~24×φd | 15~24 | 1.5～8.0 | 20～60 | |||
| φD25~40×φd | 25~40 | 1.5～25 | 30～60 | |||
| φD42~95×φd | 42~95 | 2.0～50 | 20～95 | |||
Why Choose us ?
We are a tungsten carbide manufacturer, located in Zhuzhou City, Hunan Province, China. Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.
The products are popular in the market because of their good quality, moderate price and fast delivery.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
