Sandblasted YG15 Cemented Tungsten Carbide Die

Sandblasted YG15 Cemented Tungsten Carbide Die

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: OD140XID70X25.4

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Polished Surface Finish: Sandblasted
Grade:: YG15 Application: Wear Parts For Coal Mining
High Light:

YG15 Tungsten Carbide Die


Sandblasted Tungsten Carbide Die


Cemented Carbide Wire Drawing Dies

Product Description

Sandblasted YG15 Cemented Tungsten Carbide Die

YG15 solid carbide cup pellets die for drawing dies



Cemented carbide wire drawing dies is a special and precision tool which cuts and forms sheet metal into a desired shape or profile. The cutting and forming sections of dies typically are made from special types of hard steel called tool steel. Dies also can contain cutting and forming sections made from carbide or various other hard, wear-resistant materials.

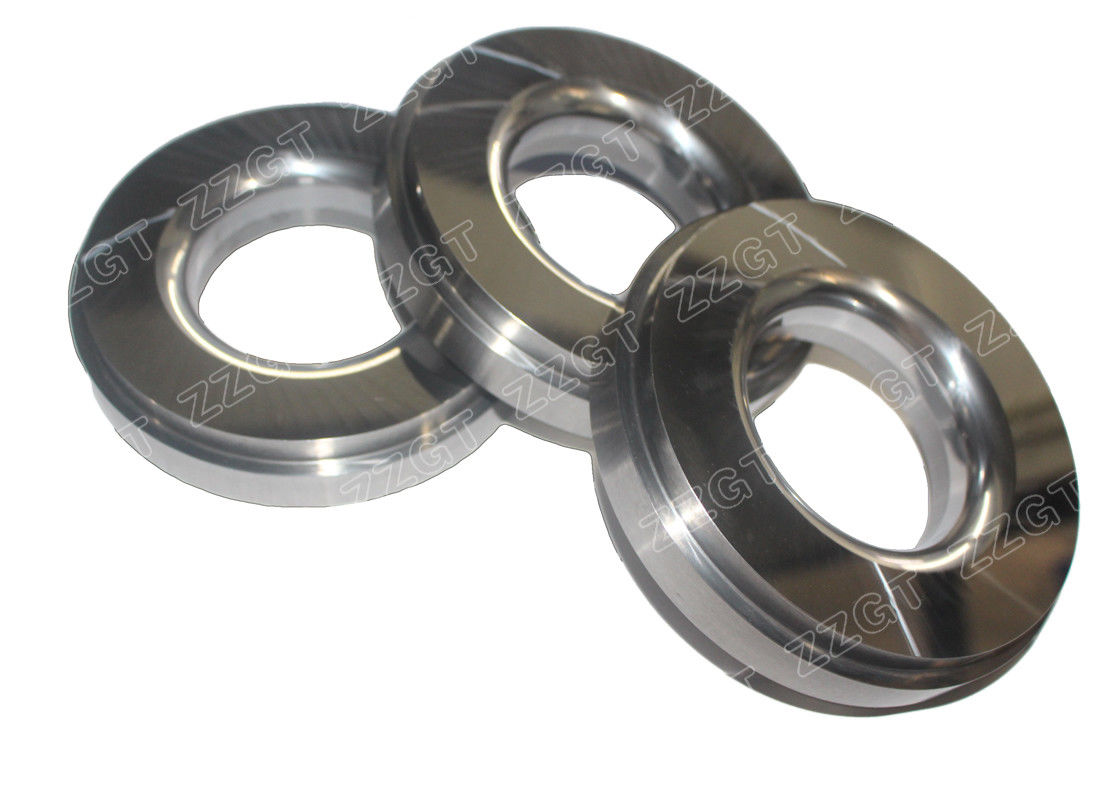

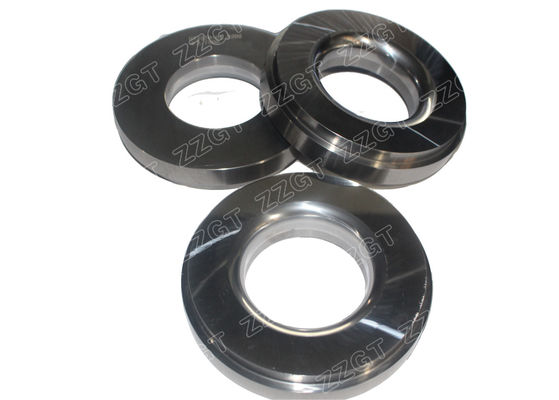

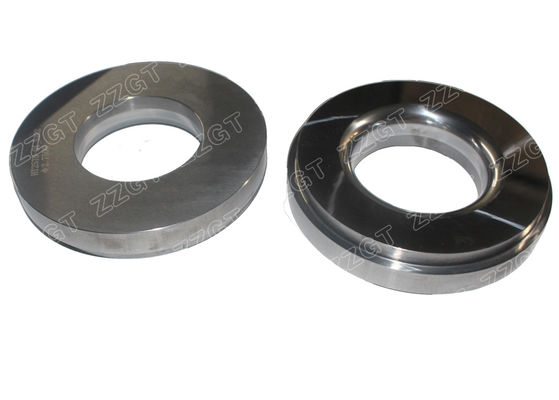

Above  pictures is blanks without steel body. As you can see, the out diameter are grounded to keep the tolerance and easy to insert to steel case

Product Description:


Product Name hard metal cup drawing pellets
Material cemented carbide
Size OD140XID70X25.4
Size Tolerance standard tolerance
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size Coarse Grain Size
Application For drawing dies
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015


Grade Performance


Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.




Factory Equipments:


There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc


Sandblasted YG15 Cemented Tungsten Carbide Die 0




For further question, pls contact our sales engineer
