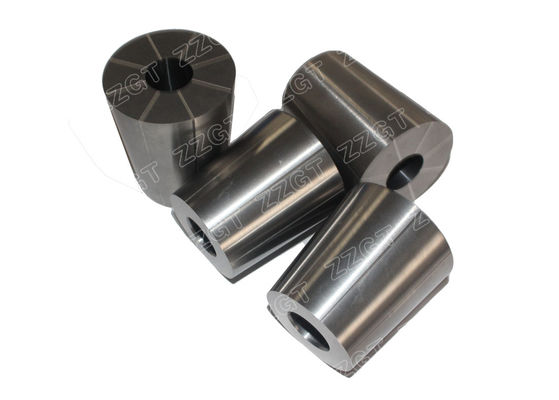

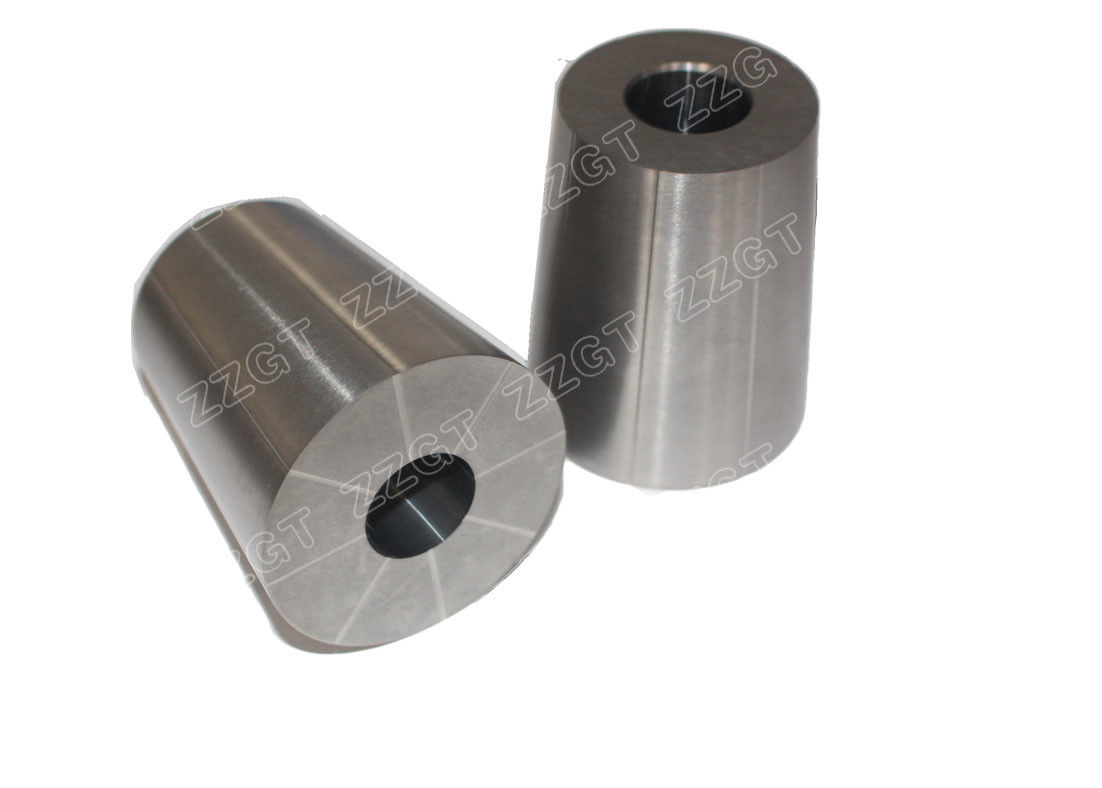

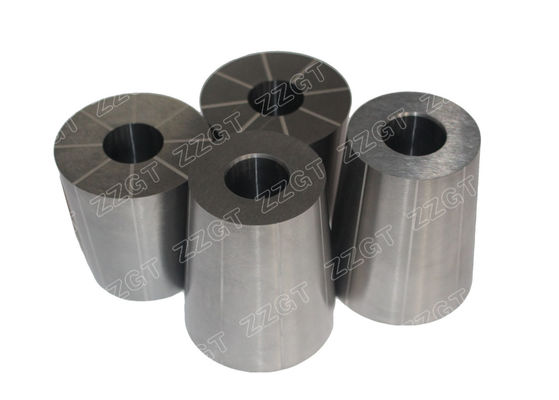

HIP Sintering Ground G55 Tungsten Carbide Cold Heading Dies

HIP Sintering Ground G55 Tungsten Carbide Cold Heading Dies

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001:2015
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Grade: YG20C Material: Tungsten Carbide With Cobalt
ISO: K30 Surface Finish: Ground
Size: φ62.09xφ23.13x67 Application: Punching Dies
High Light:

G55 Tungsten Carbide Cold Heading Dies

,

Ground Tungsten Carbide Cold Heading Dies

,

HIP Sintering Carbide Mold

Product Description

HIP Sintering Ground G55 Tungsten Carbide Cold Heading Dies

G55 tungsten carbide punching cold heading dies pellets nibs molds





About Products:



The tungsten carbide heading die are used for cold punching and heading of screw and nuts, it was wear resistance and high toughness, it is the ideal in making non-ferrous metal an dother alloy.



Product Description:



Product Name Cemented Carbide pellets
Material hard metal
Size Φ62.09xΦ23.13x67
Size Tolerancea according to demands
Color Sliver grey
Recommend Grade K30
Grain Size Coarse Grain
Application cold heading dies
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015





Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.



HIP Sintering Ground G55 Tungsten Carbide Cold Heading Dies 0





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

*HIP sintering furnace

*Spraying Draying system

*200T TPA acutomatic press machine

*CNC Grinder

*Spark Erosion machine

*Wire cutting machine,etc



HIP Sintering Ground G55 Tungsten Carbide Cold Heading Dies 1
