YG15C YG18C YG20C YG25C Tungsten Carbide Cold Heading Dies

YG15C YG18C YG20C YG25C Tungsten Carbide Cold Heading Dies

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: φ25*16.8*31

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Durable And Long Life Time Surface Finish: Ground
Grade: YG15C/YG18C/YG20C/YG25C Application: Cold Heading Dies
High Light:

YG25C Tungsten Carbide Cold Heading Dies

,

YG20C Tungsten Carbide Cold Heading Dies

,

YG18C Carbide Cold Heading Dies

Product Description

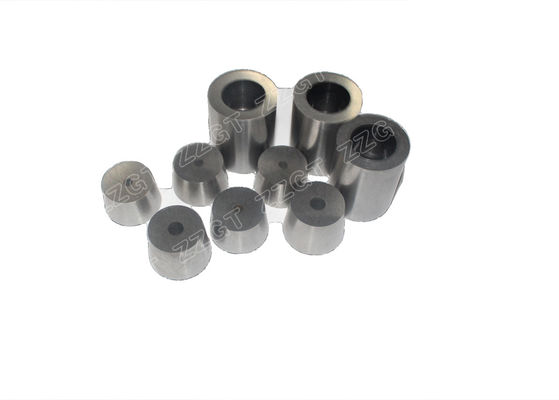

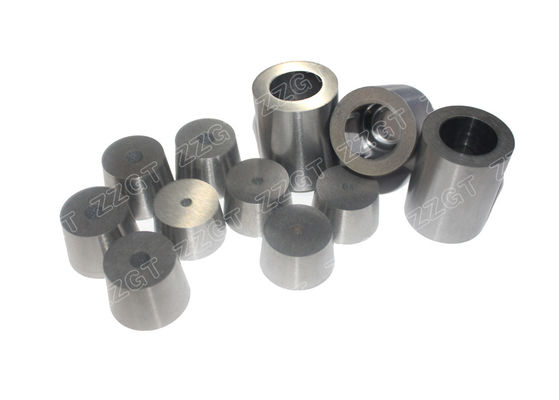

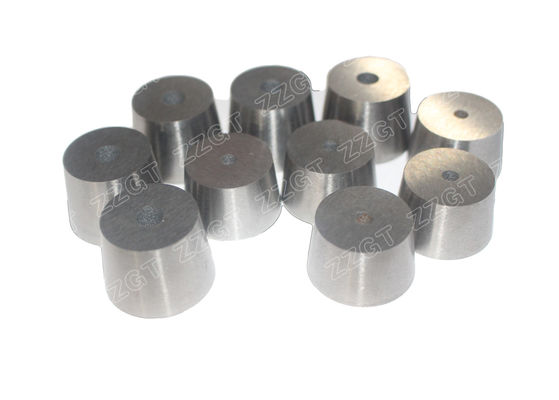

YG15C YG18C YG20C YG25C Tungsten Carbide Cold Heading Dies

YG15C/YG18C/YG20C/YG25C Carbide Cold Heading Stamping Carbide Die Nib To Be Used In Bolt Mold Manufacturing



Tungsten carbide punching dies are usually made of different tungsten carbide grades. The major grade is YG series which have higher transverse rupture strength. With high accuracy, and owing to their perfect finish, precise dimension, durability and corrosion resistance, these are highly appreciated by the clients all around the world. They are widely used in petrochemical industry for fastner parts such as submerged oil pump, slurry pump, water pump, centrifugal pump,etc.




Product Description:



Product Name Cemented Carbide heading pellets
Material Hard metal
Size customized
Size Tolerance standard tolerance
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size Coarse Grain Size
Application For cold heading dies
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







More Details:









Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc
