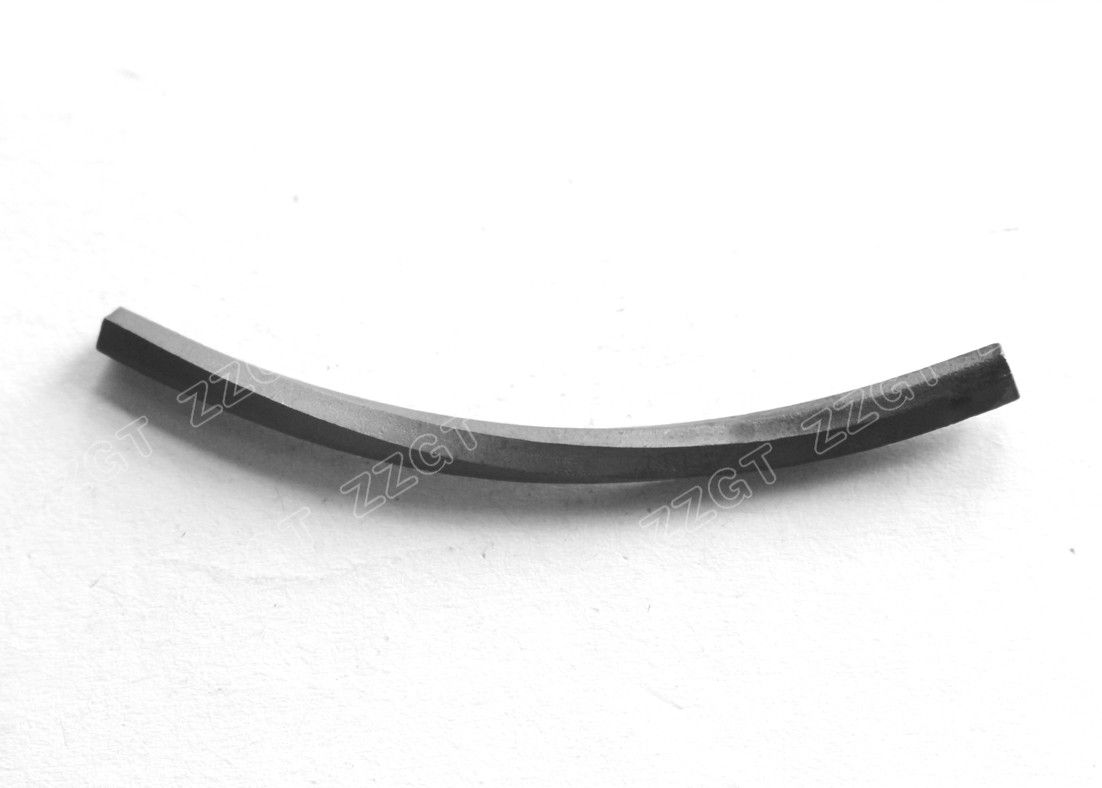

Custom Tungsten Carbide Spiral cutters , YG8 Carbide Spiral blade for Welded Carbide Spiral End Mill
Product Details:
| Place of Origin: | ZhuZhu , Hunan , China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | YG8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard ecport packing ,or per customer needs |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Quality: | HIP Sintering High Hardness And Wear Resistance | Technology: | Advanced Technology ,automatic Pressing, Precis On Grinding |
|---|---|---|---|
| Service: | 24-hour Online After-sale Service | Material: | 100% Virgin Tungsten And Cobalt |
| Grade: | Can Design The Best Grade According To Its Applications | Shipments: | Fast Delivery In 7 To 15 Days |
| Highlight: | tungsten carbide alloy products,cemented tungsten carbide products |
||
Product Description
ADVANTAGES:
1. Material :contains 100% virgin tungsten and cobalt with submicon grain size
2. Quality: long life with super resistance to heat , wear and abrasion
3. Technology: can provide the characteristic custom-made
4. Grade: can design the best grade according to its applications
5. Price: Fast delivery time and excellent cost performance
6. packaging:convenient packaging with standard export packing or according the needs of customet's
7. shipping terms: FOB CIF C&F Etc by sea or air
8. Equipment: Over ten thousand sets of existing non-standard shaped mold
Application
For Brazed Carbide Spiral End Mill cutting tools
| Product Name | Tungsten carbide spiral cutters |
| Material | cemented carbide |
| Size | Non-standard products |
| Size Tolerance | Free tolerance or as customer's request |
| Color | As picture |
| Recommend Grade | YG8 YS2T YS25 etc |
| Grain Size | Medium and Fine Grain |
| Application | Produced according to the customer's use |
| Processing Treatment | Clean ground and polished or as customer request. |
| Product Features | Long life,good versatility,good wear resistance. |
| Certification | ISO9001 |
Grade Performances:
| Grade | ISO Grade | Density | Hardness | T.R.S | Application |
| g/cm3 | HRA | N/mm² | |||
| JT3 | K01 | 15.0 | 91.0 | 1400 | Qualified for fine turning and half fine turning when cast iron,nonferrous metal ,alloys as well as non alloy materials cutting consecutively,Also qualified for sand -blasting nozzles. |
| JT6 | K20 | 14.9 | 90.0 | 2150 | For the cast iron ,nonferrous metal, alloy and unalloyed materials, electric drill for geology use and steel drill ,also process hard wood ,original wood ,aluminum section section bar, brass rod. |
| JT8 | K30 | 14.7 | 89.5 | 2320 | For machine manufacture ,processing blades and wearing parts,rough machineing of cast iron , nonferrous metal ,nonmetal materials at low cutting speed ,also used for hard wood , graphite ,grass. |
| JT11 | K40 | 14.4 | 88.5 | 2420 | Forming or stamping dies for metal powders and nonmetal powders. |
| JT15 | K40 | 14.0 | 87.5 | 2500 | For punching, stamping,forging tools under large stress,fabricating drawing dies of steel tubes and rods under high compressibility ratio,Powder metallurgy mouldenpress mould core,Cut very hard rock formations. |
| JT20 | 13.5 | 85.5 | 2800 | High bending strength ,used for step dies and other stamping dies ,as for watch parts, battery jars ,small screw caps etc. |
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
