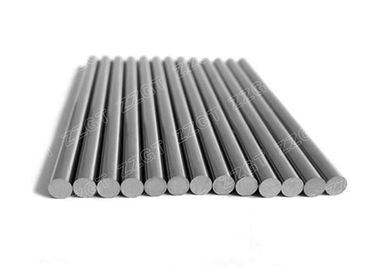

• Hip Sintered Tungsten Carbide Bar , High Density Customized Ground Rod
  • Hip Sintered Tungsten Carbide Bar , High Density Customized Ground Rod
Hip Sintered Tungsten Carbide Bar , High Density Customized Ground Rod

Hip Sintered Tungsten Carbide Bar , High Density Customized Ground Rod

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: φ6*100 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: 100% Virgin Tungsten Carbide Technology: Import Equipment HIP Sinter
Appliation: With High Temperature Hardness ,widely Used In PCB Micro Drills, For Making Drills ,end Mill , Reamer ,taps Burrs Etc. Size: Various Grade And Size For The Needs Of Customer
Shippments: Some Products Are In Stock For Fast Delivery Quality: Excellent Wear Resistance And Strong Ridiging
Color: Sliver Grey Grade: K10 K20 K30
High Light:

tungsten carbide bar

,

solid carbide rod

Product Description

Customized Ground Rods K20 6*100 Item complete HIP sintering high density and hardness for cutting tool





DETAILED PRODUCT DESCRIPTION:

  • MATERIAL: 100% virgin tungsten carbide​
  • QUALITY: Excellent ware resistence and strong rigdity, combaines high density ,high hard
  • EQUIPMENT: Adopt advanced automatic extrusion equipment to product
  • SERVICE: Our aim is to make every customer satisfied and we can be WIN-WIN
  • APPLICATIONS: Suitable for cast iron ,non-ferrous metals ,hard wood , common wood etc
  • ROUGHNESS:0.4 or others
  • SHIPING TERMS: FOB,CIF , C&F, ETCby sea or by air
  • TOLERANCE: H6



Product Name  Ground rods
Material cemented carbide
Size  φ6*100 or others available
Size Tolerance h6 or as customer's request
Color As picture
Recommend Grade K20 etc
Grain Size Medium Grain
Application based on client's needs
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good wear resistance and high hardness.
Certification ISO9001







Grade Performances:



Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF8 K30 92 8 1.6 14.7 90 75.9 1400 ≥3500 Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools.
GF20 K40 80 20 1.2 13.7 84.5 66 900 ≥4200 High strength,mainly used for stamping tool can withstand great pressure.





Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF6X K10 94 6 0.8 14.9 91.5 78.4 1600 ≥3200 Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel.
YL10.2 K30 88 10 0.6 14.4 91.5 79.3 1650 ≥3850 With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.



Size Options:



Type OD(MM) L(MM) Un-ground tolerance Fine ground tolerance
φ1~φ4×L 1~4 38.5 50 100 330 -0.00/+0.30 -0.00+L×1% h6
φ5~φ40×L 5~40 100 310 330 -0.00/+0.6

For any other sizes we are able to custom-made according to clients’ requirements or drawings.



Product Display and Advantages:

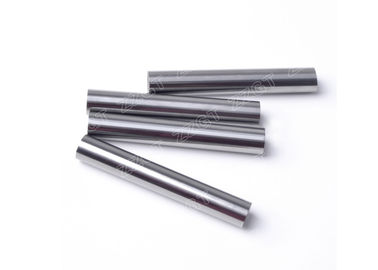

Hip Sintered Tungsten Carbide Bar , High Density Customized Ground Rod 0

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools

Packing Process:



Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
