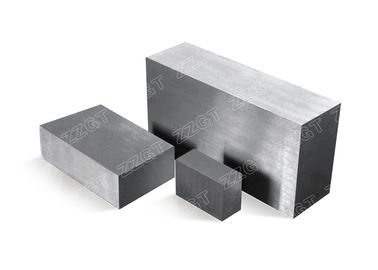

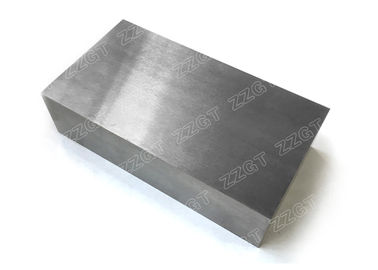

Hip Sintered K10 Tungsten Carbide Block For Stamping And Cutting Silicon Steel Sheet
Product Details:
| Place of Origin: | ZhuZhu , Hunan , China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 300*100*40 , or Various Size |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as customers'requirement |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Raw Material Contains 100% Virgin Tungsten And Cobalt | Quality: | HIP Sinter , High Hardness And Wearability |
|---|---|---|---|
| Service: | Have Tracked The Products Used By Our Coutomers | Technology: | Imported Equipment HIP Sinter |
| Grade: | Various Grade And Size Avaible According To Different Request | Shipments: | Some Products Are In Stock For Fast Delivery |
| High Light: | tungsten carbide sheet,tungsten carbide wear plates |
||
Product Description
Hip Sintered K10 Tungsten Carbide Block For Stamping And Cutting Silicon Steel Sheet
Tungster carbide bar K10 300*100*40 for stamping and cutting sillicon steel sheet
Carbide bar Descriptions :
Tungsten carbide bar are produce of Zhuzhou Gingte maufacture , contains 100% virgin tungsten and cobalt , excellent wear resistance and strong rigidity , ISO quality certificate , importment equipment HIP sinter , easy to be use . We are not only produce the standard types , but also products the carbide parts based on your design . And we have rich experience on this and the big part that can provide the technical support .For example , how to select right grade of carbide to match your using purpose, and will make it very easy and simple to do business with us .
Feastures:
- International quality domestic prices
- High hardness and wearability
- various size
- convenient packaging
| Product Name | Tunsten Carbide bar |
| Material | cemented carbide |
| Size | 300*100*40 |
| Size Tolerance | ±0.1 or as customer's request |
| Color | As picture |
| Recommend Grade | YG8 YG15 YS2T etc |
| Grain Size | Medium and fine Grain |
| Application | for stamping and cutting sillicon steel sheet |
| Processing Treatment | Six Face fine ground or as customer request. |
| Product Features | Long life,good wear resistance and high hardness. |
| Certification | ISO9001 |
Grade Performances:
| Grade | Hardness | Density | T.R.S | Application Recommended |
| HRA | g/cm3 | MPα | ||
| YG6A | 91.5 | 14.9 | ≥3500 | Has wear resistance higher than YG6,used for processing hard wood, original wood,aluminum section bar,brass rod and cast iron. |
| YG8 | 89.5 | 14.7 | ≥3200 | Wear and percussion resistance,used for processing hard wood,soft wood, ferrous and non~ferrous. |
| YG15 | 87 | 14 | ≥3800 | for making stamping die, wear resistance parts. |
| YG20 | 84.5 | 13.7 | ≥4200 | with high strength,suitable for making progressive die stamping die etc. |
| YS2T | 92 | 14.5 | ≥3850 | Fine carbide, High wear resistance,high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel etc. |
Size Options:
| Type | L (mm) |
W (mm) |
T (mm) |
Type | L (mm) |
W (mm) |
T (mm) |
| 300×250×T | 300 | 250 | 5-65 | 270×120×T | 270 | 120 | 5-65 |
| 300×200×T | 300 | 200 | 5-65 | 150×150×T | 150 | 150 | 5-65 |
| 320×215×T | 320 | 215 | 5-65 | 150×100×T | 150 | 100 | 5-65 |
| 350×250×T | 350 | 250 | 5-65 | 120.5×107×T | 120.5 | 107 | 5-65 |
| 300×160×T | 300 | 160 | 5-65 | 120.5×120.5×T | 120.5 | 120.5 | 5-65 |
| 200×200×T | 200 | 200 | 5-65 | 100×100×T | 100 | 100 | 5-65 |
| 200×100×T | 200 | 100 | 5-65 | 100×85×T | 100 | 85 | 5-65 |
| 200×60×T | 200 | 60 | 5-65 | 100×50×T | 100 | 50 | 5-65 |
| 200×150×T | 200 | 150 | 5-65 | 105×105×T | 105 | 105 | 5-65 |
| 250×250×T | 250 | 250 | 5-65 | 68×57×T | 68 | 57 | 5-20 |
| 250×200×T | 250 | 200 | 5-65 | 60×50×T | 60 | 50 | 5-20 |
| 250×150×T | 250 | 150 | 5-65 | 50×50×T | 50 | 50 | 5-20 |
| 250×130×T | 250 | 130 | 5-65 | 40×40×T | 40 | 40 | 5-20 |
| … | … | … | … | … | … | … | … |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Display and Advantages:
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippmemt
