Dynamic And Static Ground Tungsten Carbide Ring Blank For Valve And Pump

Dynamic And Static Ground Tungsten Carbide Ring Blank For Valve And Pump

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001:2015
Model Number: φ180xφ122x6

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
ISO Grade: 8% Nickel Binder Surface Finish: Ra0.8
OEM/ODM: Yes Application: Sand Mill Machine
High Light:

pump tungsten carbide ring blank

,

valve tungsten carbide ring blank

,

Ground Tungsten Carbide Ring Blank

Product Description

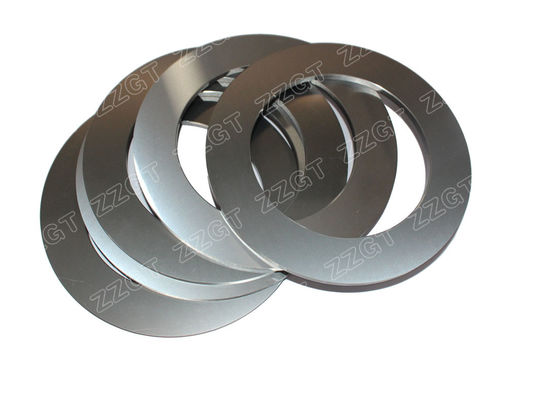

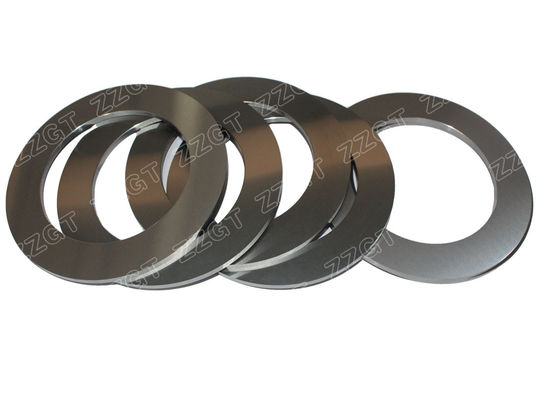

Dynamic And Static Ground Tungsten Carbide Ring Blank For Valve And Pump



Ground Tungsten Carbide dynamic and static ring blank for valve and pump with precision size​





About Us:



We offer various kinds of tungsten carbide wear resistance rings , such as dynamic and static roller rings , the dynamic and static ring are also named sealing rings used for mechanical seal and it also suitable for the equipment which's grinding medium between 0.2 and 0.6mm , grinding & dispersing size between 100and 500 nano.







Product Description:



Product Name Cemented carbide dynamic & static ring
Material Hard metal
Size φ180xφ122x6
Size Tolerance According to the drawing
Color Sliver grey
Recommend Grade YN8/YG8/YS2T
Grain Size Fine Grain Size
Application Grinding or Mechanical
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015



Grade Performance



Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







More Details:



Dynamic And Static Ground Tungsten Carbide Ring Blank For Valve And Pump 0





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc



Dynamic And Static Ground Tungsten Carbide Ring Blank For Valve And Pump 1
