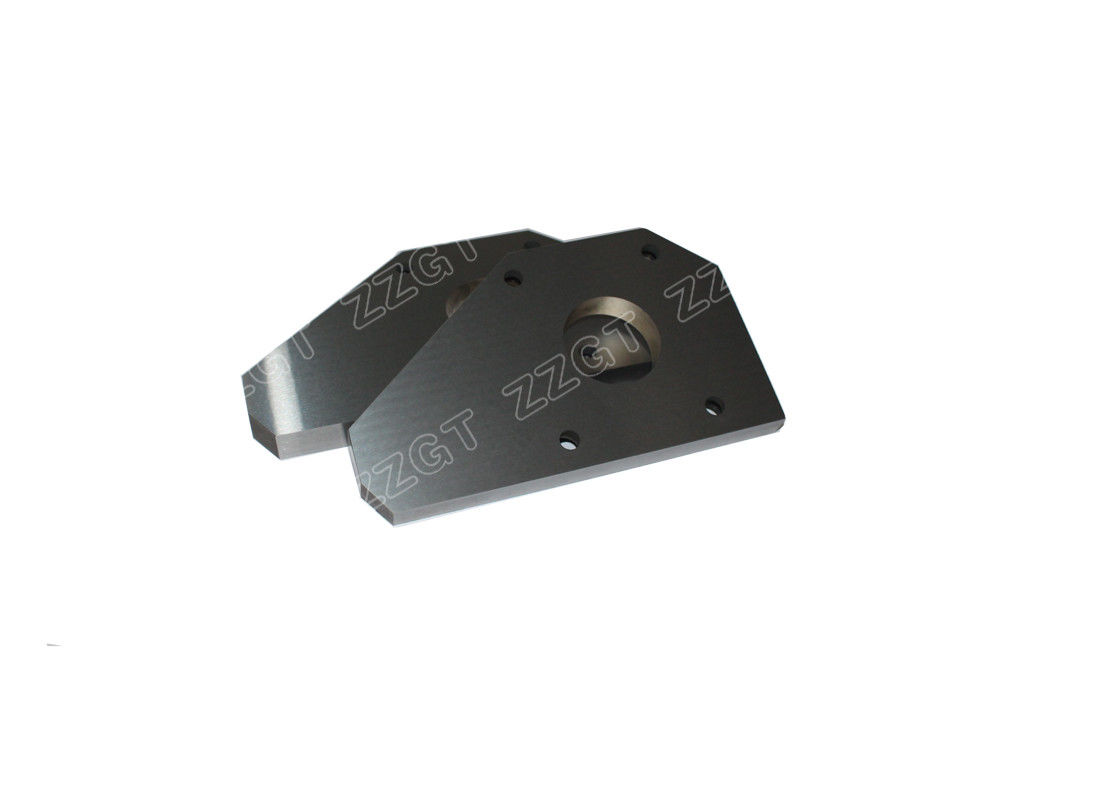

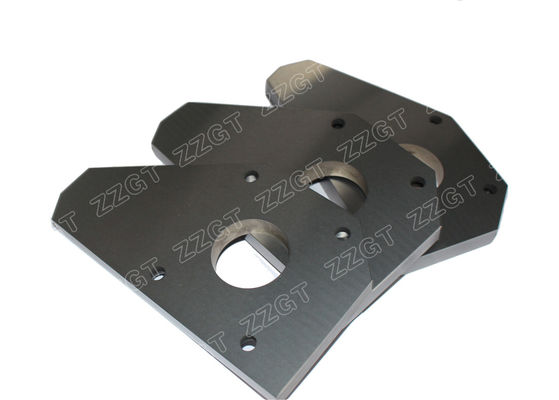

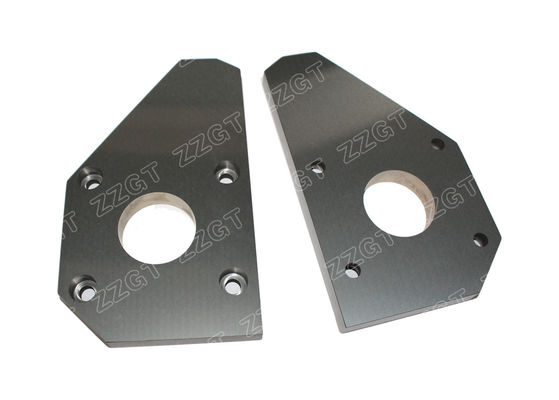

Wear Resistance Customized YG6 Tungsten Carbide Plate

Wear Resistance Customized YG6 Tungsten Carbide Plate

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001-2015
Model Number: 190x70x111

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Services: 24hours Material: 100% Virgin Tungsten Carbide Powder
Feature: Long Life Time Surface Finish: Ground
Grade: YG6 Application: Cutting Tool
High Light:

YG6 Tungsten Carbide Plate


hip sintering tungsten carbide plate


YG6 carbide plates

Product Description

Wear Resistance Customized YG6 Tungsten Carbide Plate

ISO standard K10 K20 Solid tungsten carbide/hard metal square flat bar cemented/carbide strips



Tungsten carbide plates that are especially suitable for protecting surfaces against abrasive and erosive wear. The plates are made of tungsten carbide and can be adjusted with different chemical compositions to the requirements of each specific application

1. To make punching dies: It can be applied to the production of high-speed die and multi-station progressive die for punching copper, aluminum, stainless steel, cold-rolled sheet, hardware, standard parts, upper and lower punches, etc.

2. To make wear-resistant tools.

3. To make high temperature resistant parts, wear parts and anti-shielding parts. such as the guide rail of the machine tool and the anti-theft reinforcement board of the ATM.

4. To make corrosion-resistant parts for the chemical industry.

5. To used as radiation and corrosion resistant materials for medical equipment.



Product Description:


Product Name hard metal plates
Material cemented carbide
Size 190x70x111
Size Tolerance as the drawing
Color Sliver grey
Recommend Grade Good wear resistance
Grain Size  Middle Grain Size
Application For Wear Parts
Processing Treatment HIP sintering
Product Features Long life, wear resistance
Certification ISO9001-2015


Wear Resistance Customized YG6 Tungsten Carbide Plate 0

Grade Performance


Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
GT55 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.





Factory Equipments:


There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

* HIP sintering furnace

* Spraying Draying system

* 200T TPA acutomatic press machine

* CNC Grinder

* Spark Erosion machine

* Wire cutting machine,etc


Wear Resistance Customized YG6 Tungsten Carbide Plate 1
