Tungsten Carbide Bearing Shaft Sleeves and Tungsten Carbide Bushings for Slurry Pump
Product Details:
Place of Origin: | Zhuzhou,Hunan,China |
Brand Name: | ZZGT Li |
Certification: | ISO9001-2015 |
Model Number: | φ62xφ50.8x55.4 |
Payment & Shipping Terms:
Minimum Order Quantity: | Samples are accepted |
---|---|
Price: | Negotiable |
Packaging Details: | Paper box , Wooden Carton or Customized accepted |
Delivery Time: | 7-15days |
Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 400T/year |
Detail Information |
|||
Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
---|---|---|---|
Feature: | Durable And Long Life Time | Surface Finish: | Ground |
Grade:: | YG8 | Application: | Petroleum & Oil |
High Light: | YG12 Tungsten Carbide Sleeve,Ground tungsten carbide sleeve,YG12 carbide sleeve |
Product Description

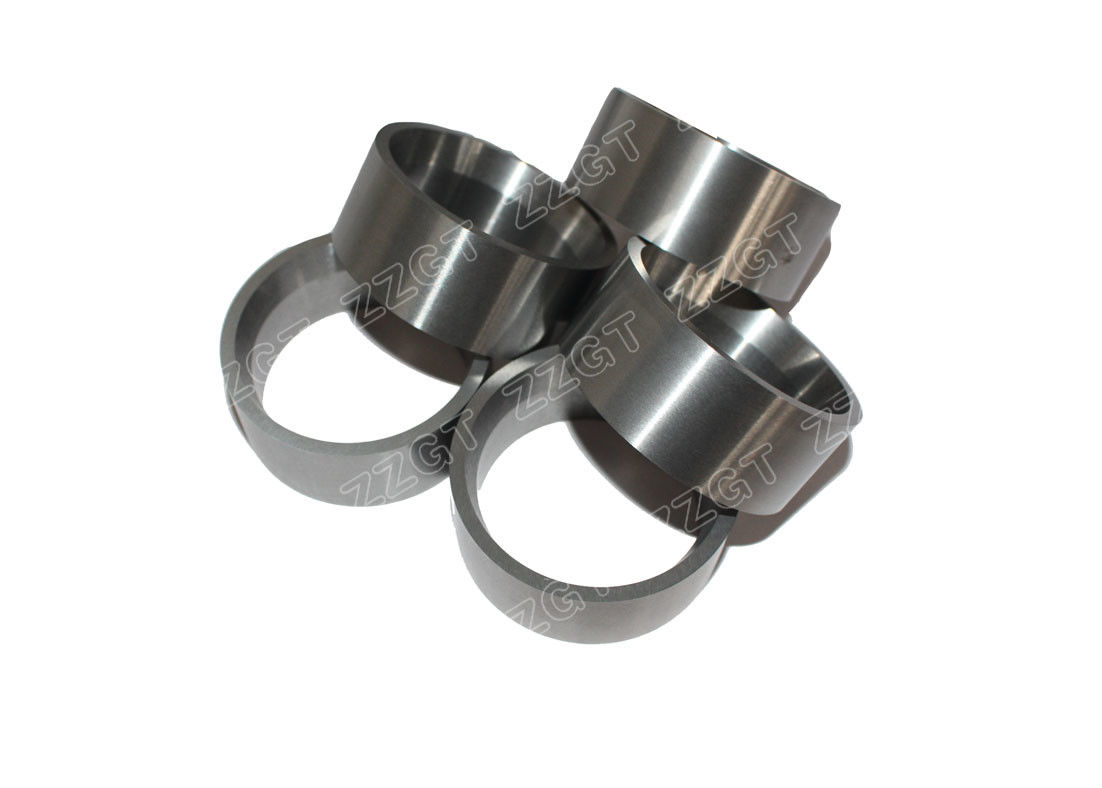

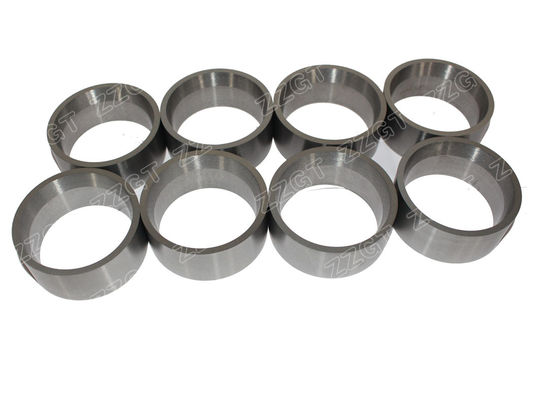

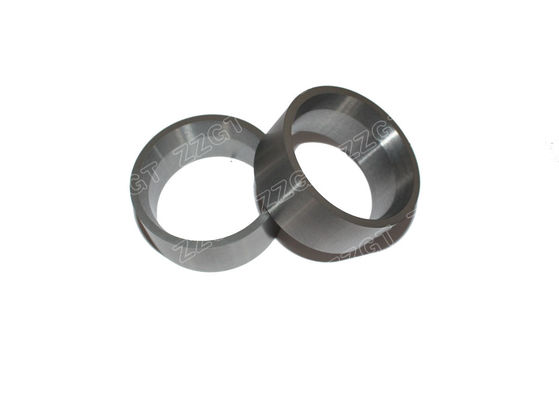

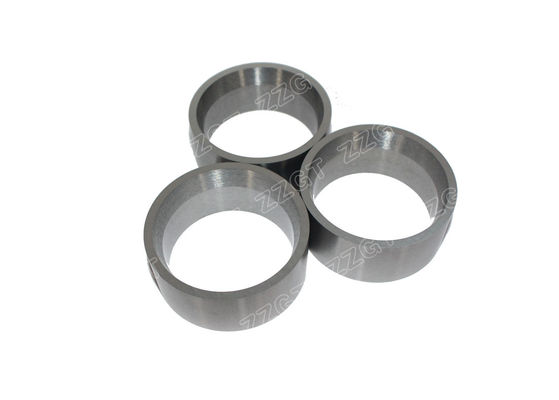

Tungsten Carbide Bearing Shaft Sleeves and Tungsten Carbide Bushings for Slurry Pump
Tungsten Carbide Bearing Shaft Sleeves and Tungsten Carbide Bushings for Slurry Pump
Tungsten carbide bushing set up by virgin tungsten carbide material. It’s shows high hardness and bending strength. That has superior performance on resisting abrasion and corrosion, which is widely used in many industries
For its widely usage. Tungsten carbide bushing are often made with high accuracy, and owing to their perfect finish, precise dimension, durability and corrosion resistance. These are highly appreciated by the clients at home and aboard.
In addition, differ from the various of application environment. There are several types of Tungsten carbide bushing. Most of the specifications are all customized.
Product Description:
Product Name | hard metal sleeve bushing |
Material | cemented carbide |
Size | φ62xφ50.8x55.4 |
Size Tolerance | standard tolerance |
Color | Sliver grey |
Recommend Grade | Good wear resistance |
Grain Size | Middle Grain Size |
Application | For Wear Parts |
Processing Treatment | HIP sintering |
Product Features | Long life, wear resistance |
Certification | ISO9001-2015 |
Grade Performance
Tungsten Carbide Cold Forging/heading Dies | |||||
Grades | Density | T.R.S | Hardness | Performance & application recommended | |
g/cm³ | MPa | HRA | |||
YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
