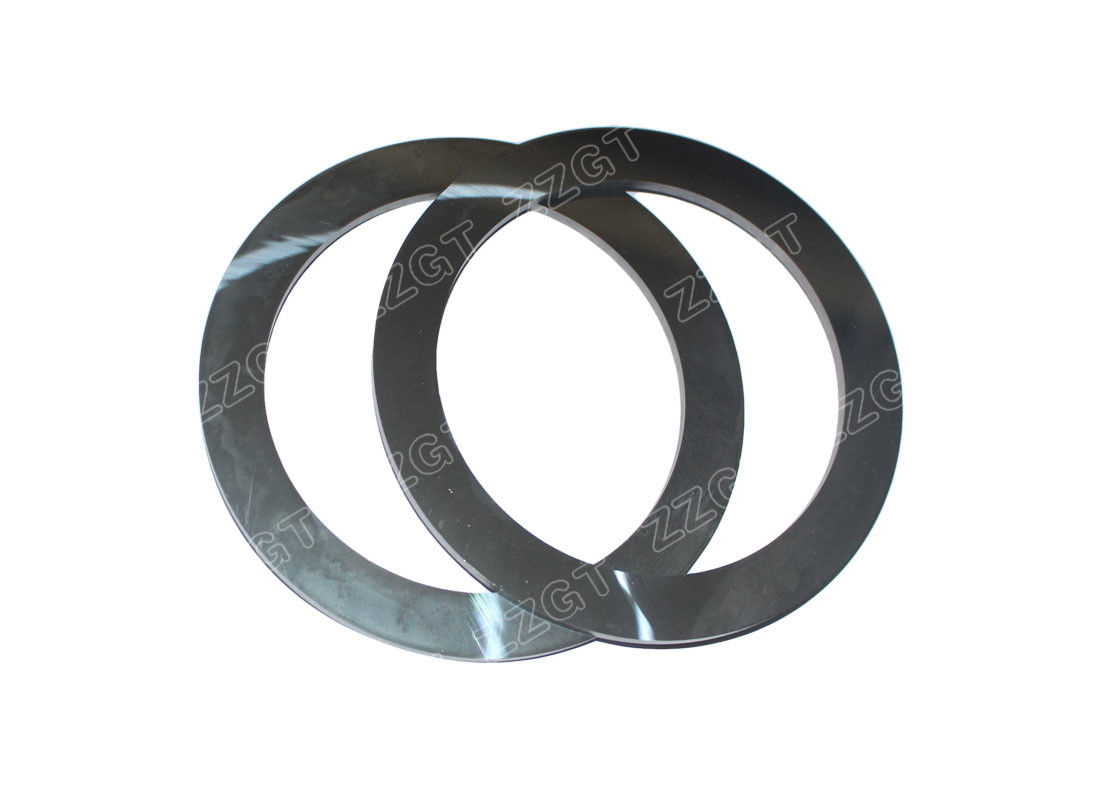

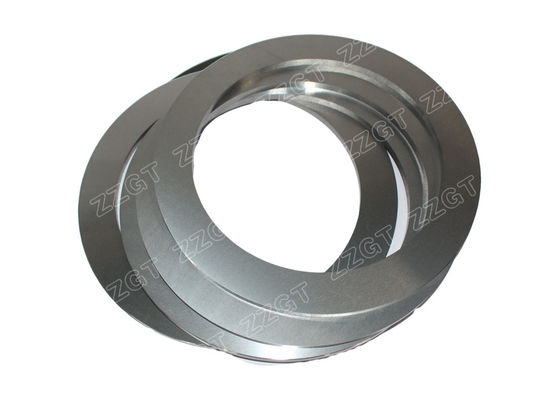

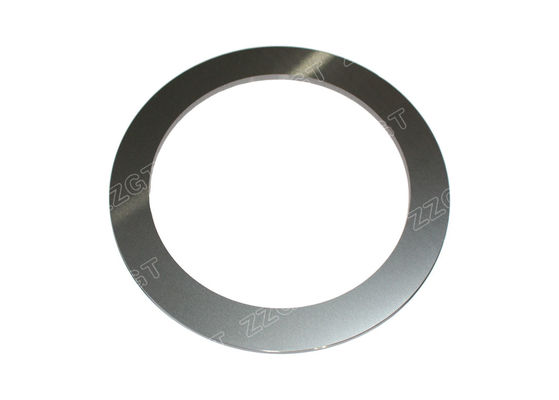

ISO Standard Static Seal Ra0.8 Tungsten Carbide Rings
Product Details:
Place of Origin: | Zhuzhou,Hunan,China |
Brand Name: | ZZGT Li |
Certification: | ISO9001:2015 |
Model Number: | φ222xφ179x6 |
Payment & Shipping Terms:
Minimum Order Quantity: | Samples are accepted |
---|---|
Price: | Negotiable |
Packaging Details: | Paper box , Wooden Carton or Customized accepted |
Delivery Time: | 7-15days |
Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 400T/year |
Detail Information |
|||
Services: | 24hours | Material: | 100% Virgin Tungsten Carbide Powder |
---|---|---|---|
ISO Grade: | K20 | Surface Finish: | Ra0.8 & Ground |
OEM/ODM: | Yes | Application: | Sand Mill Machine |
High Light: | Tungsten Carbide Sealed Ring,TC Sealed Ring |
Product Description
ISO Standard Static Seal Ra0.8 Tungsten Carbide Rings
ISO New Customized & Standard Ground Static Seal Tungsten Carbide TC Sealed Ring
About Us:
We produce many kinds of tungsten carbide tubes, rings and bushings with 100% virgin raw materials.
We can custom the products according to client's demand. Tungsten Carbide Seal Rings are widely used in many different mechanical seal industries, petroleum, chemical and so on. It's an essential seal material.
• The tungsten carbide seal ring can be divided into both of the rotating seal ring and static seal ring, and constitutes mechanical seal together with the spring,rubber seal ring and steel jacket.
• It's mainly used for waste water pump, water discharge pump for the mines, centrifugal pump, slag slurry pump and slurry pump in the adverse working conditions of high speed rotating,sand flush abrasion and corrosion.
• The seal ring is installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Product Description:
Product Name | customized tungsten carbide rotatic & static ring |
Material | Hard metal |
Size | φ222xφ170x6 |
Size Tolerance | According to the drawing |
Color | Sliver grey |
Recommend Grade | K20 |
Grain Size | Fine Grain Size |
Application | Sand mill machnie |
Processing Treatment | HIP sintering |
Product Features | Long life, wear resistance |
Certification | ISO9001-2015 |
Grade Performance
Tungsten Carbide Cold Forging/heading Dies | |||||
Grades | Density | T.R.S | Hardness | Performance & application recommended | |
g/cm³ | MPa | HRA | |||
YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
GT55 | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
* HIP sintering furnace
* Spraying Draying system
* 200T TPA acutomatic press machine
* CNC Grinder
* Spark Erosion machine
* Wire cutting machine,etc
