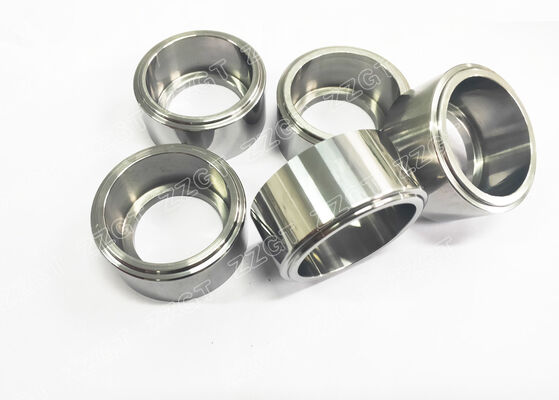

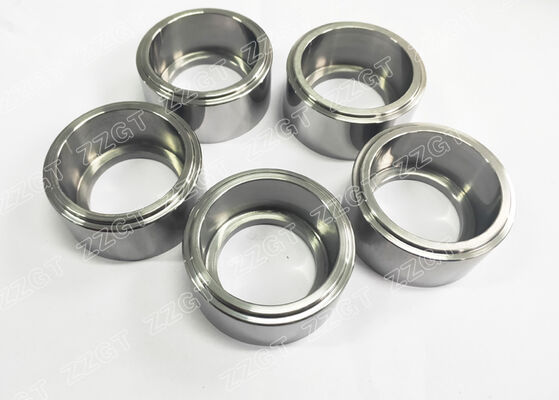

8% Nickel Bonded Tungsten Carbide Rings Polished For Manufacturing Seals
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | customized or others |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Steel | Surface Treatment: | Polished |
|---|---|---|---|
| Applications: | For Seals | Chemical Composition: | WC+Cobalt |
| Roughness: | 0.1 Or Others | Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air |
| High Light: | custom made tungsten carbide rings,tungsten carbide roll rings |
||
Product Description
8% Nickel Bonded Tungsten Carbide Rings Polished For Manufacturing Seals
8% Nickel Bonded Tungsten Carbide Seal Rings For Manufacturing Seals
Seal Rings Descriptions :
Attached customized tungsten carbide rings Suitable for manufacturing seals,with 8% nickel bonded material.Tungsten Carbide Seal Ring are widely used in petroleum,chemical and other fields of mechanical seals.It's an essential seal material.Due to their extreme hardness, tungsten carbide rings will hold their shapes and shine longer than any ring on the market.Carbide rings have been referred to as the "Permanently polished rings, with good wear resistance and corrosion resisting.
Product Details:
1. Product Name: Tungsten Carbide Seal Rings
2. Material: Tungsten Steel
3. Size: Customized
4. Size Tolerance: finished or as customer's request
5. Shape: as picture
6. Recommend Grade: YN8 etc
7. Grain Size: Medium Grain
8. Applications: for seals
9. Sintering Treatment: HIP sintering
10. Product Features: Long life, good corrosion resistance.
11. Certification: ISO9001
Grade Performance:
| Grade | Main Chemical Component (%) | Hardness (≥HRA) | Density (g/cm³) | T.R.S (≥N/mm²) |
||||
| WC | Co | Ni | Tic | Other | ||||
| YN6 | 94 | 6 | 89 | 14.5-14.9 | 1500 | |||
| YN8 | 92 | 8 | 88 | 14.4-14.8 | 1650 | |||
| YG6 | 94 | 6 | 89.5 | 14.7-15.1 | 1550 | |||
| YG8 | 92 | 8 | 89 | 14.6-14.9 | 1850 | |||
| YG15 | 85 | 15 | 87 | 13.9-14.2 | 2500 | |||
Size Options:
| Outer Diameter (mm) |
Inner Diameter (mm) |
Thickness (mm) |
| φ30~φ150 | φ20~φ100 | 5~100 |
| … | … | … |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Quality assurance:
-
Every production process has a special person to test to ensure quality
-
Have professional engineers to check the quality
-
All products are under strict quality system management based on ISO9001:2008
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
