• ISO Abrasive Performance Tungsten Carbide Rings Three Dimensions Rolls
ISO Abrasive Performance Tungsten Carbide Rings Three Dimensions Rolls

ISO Abrasive Performance Tungsten Carbide Rings Three Dimensions Rolls

Product Details:

Place of Origin: Zhuzhou,Hunan
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: Cutomized Size are accepted

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Paper box, Cartons or according to custmers' requirments
Delivery Time: within 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 400T/ Years
Get Best Price Contact Now

Detail Information

Name: FO Model Grade: YG20
Surface Treatment: Ground Application: For Steel Plant
High Light:

custom made tungsten carbide rings

,

tungsten carbide roll rings

Product Description

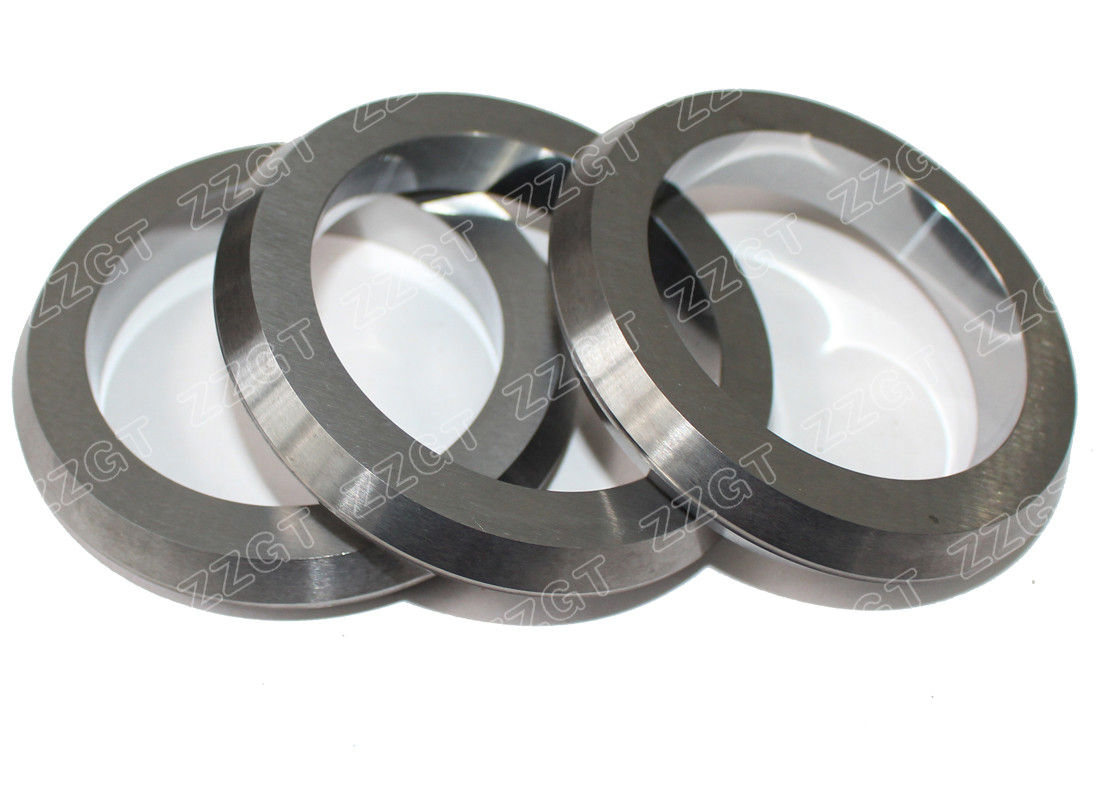

ISO Abrasive Performance Tungsten Carbide Rings Three Dimensions Rolls



Abrasive performance Tungsten Carbide three dimensions Rolls





About Us:

Hard alloy cold rollers are  the one of  main products of Zhuzhou Gingte, our cold rolls is used in reinforcement wire cold rolling and forming, we had more than 15 years advanced experience to processing cold rolls, and exported to 43 countries .



The material of rolls blanks we used are sintered in HIP furnace, 100% virgin material.



There are PR,CA,RT, RO,FO type cold rollers. Also could make it as per customer requirements.ur



Sizing ,forming,reducing and profiling rolls are made of either tungsten carbide or steel and are used to produce smooth or ribber wire for the construction field.



Profiling rolls, tungsten carbide rolls for wire ribbing, according to different standard and demands of the market.rolls include PR,CA,RT, RO,FO type. Also could make it as per customer requirements.







Size Options:

Outer Diameter
(mm)
Inner Diameter
(mm)
Thickness
(mm)
φ50~φ318 φ3~φ280 5~100

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Grade Recommendation:



Grade Density  T.R.S Hardness Performance & Application Recommended
g/cm3 MPα HRA
YG6 14.9 2100 90 or coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring.
YG8 14.7 2400 89.5 For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG8C 14.7 2450 88.5   Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG9C 14.6 2450 87.8 Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations.
YG10C 14.4 2550 87 Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YG11C 14.4 2600 87  Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C 14.2 2650 86.5 Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations.
YG15C 14 2700 86.5 For oil cone drill bits, for medium soft and medium -hard rocks.
YG15 14 2500 87.5 Good strength and less wear resistance,for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.







Factory Equipments:



There are some advanced producing euipments in the cemented carbide industry.

*HIP sintering furnace

*Spraying Draying system

*200T TPS acutomatic press

*CNC Grinder

*Spark Erosion machine

*Wire cutting machine



ISO Abrasive Performance Tungsten Carbide Rings Three Dimensions Rolls 0





FAQ:



Q1 Can I get a sample to check the quality of product?
A Yes. We can send you samples to check the quality .
Q2 Do you provide free samples ?
A Usually we do not provide free samples .There is a sample cost which can be refund after you place order
Q3 What payment term do you accept?
A We can accept T/T,Western Union, Paypal and Escrow.
Q4 I can not find our products in your catalog ,can you make customized products for us ?
A Yes ,Customized products are available.
Q5 I don’t have drawing or picture available for custom products, could you design it?
A Yes,we can make the best suitable design in accordance with your application.
