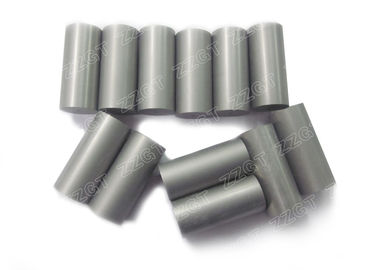

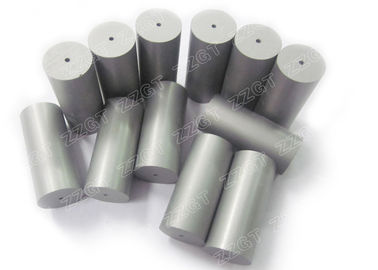

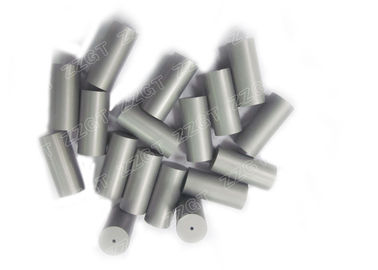

K30 Tungsten Carbide Products Cold Heading Puching Dies For Screw Nuts
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | ZZGT Li |
| Certification: | ISO9001:2015 |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | Samples are accepted |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Paper box , Wooden Carton or Customized accepted |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 400T/year |
|
Detail Information |
|||
| Grade: | YG15C,YG20C | Material: | Tungsten Carbide |
|---|---|---|---|
| ISO: | K30 | Finished: | Supported |
| Size: | As Customer Requirement | Application: | Spraying |
| Advantage: | Durable | ||
| High Light: | cold forging die,tungsten carbide die |
||
Product Description
K30 tungsten carbide cold heading puching dies for screw,nuts
Applications:
Zhuzhou Gingte hard alloy company manufactures longer wearlife parts for a wide range of industries worldwide. Zhuzhou Gingte specialize in hard metal resistant components including strips, drill bits, rings, plates, strips, tracks, rods, buttons,inserts, roller,dies,tips, balls, wear plates and bushings.
The missions of Zhuzhou Gingte tungsten Carbide Co.,ltd as follows:
To solve wear problems that cause unnecessary equipment downtime and repairs
To provide excellent product quality and service
To ship all orders on-time
To build long term relationships with our customers
Mechanical property:
| Grain size | 0.6μm-2μm |
| OEM/ODM | Accepted |
| Hardness | customized according to working condition |
| T.R.S | above 1900MPa |
| Surface Treatment | Bright, unground |
Various Sizes for Options:
| Type | OD | ID | H | Tolerance | ||
| OD | Id | H | ||||
| D10~14×φd | 10~14 | 1.0～5.0 | 15～40 | D×+3% | d×-3% | H×+3% |
| D15~24×φd | 15~24 | 1.5～8.0 | 20～60 | |||
| D25~40×φd | 25~40 | 1.5～25 | 30～60 | |||
| D42~95×φd | 42~95 | 2.0～50 | 20～95 | |||
For any other sizes we are able to custom-made according to clients’ requirements or drawings
Grade Recommendiation:
| Grade | Density | T.R.S | Hardness | Performance & Application Recommended |
| g/cm3 | MPα | HRA | ||
| YG6 | 14.9 | 2100 | 90 | or coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring. |
| YG8 | 14.7 | 2400 | 89.5 | For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YG8C | 14.7 | 2450 | 88.5 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. |
| YG9C | 14.6 | 2450 | 87.8 | Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations. |
| YG10C | 14.4 | 2550 | 87 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. |
| YG11C | 14.4 | 2600 | 87 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations. |
| YG13C | 14.2 | 2650 | 86.5 | Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations. |
| YG15C | 14 | 2700 | 86.5 | For oil cone drill bits, for medium soft and medium -hard rocks. |
| YG15 | 14 | 2500 | 87.5 | Good strength and less wear resistance,for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks. |
More Details:
Factory Equipments:
There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd
*HIP sintering furnace
*Spraying Draying system
*200T TPA acutomatic press machine
*CNC Grinder
*Spark Erosion machine
*Wire cutting machine,etc
