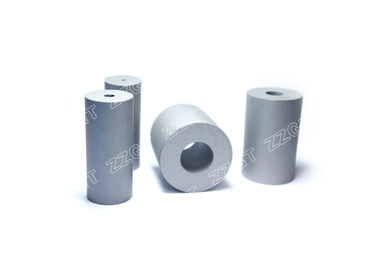

Tungsten Carbide Cold Heading Dies / Pellets / Nibs OEM ODM Accepted
Product Details:
| Place of Origin: | Zhuzhou city, Hunan province, China |
| Brand Name: | Gingte |
| Certification: | ISO9001:2015 |
| Model Number: | Various types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Kilograms |
|---|---|
| Price: | negotiable |
| Packaging Details: | Paper, then paper boxes, then exported wooden cartons or paper cases, or packed as customers' requirement. |
| Delivery Time: | 7-25 days once get the deposit |
| Payment Terms: | L/C, T/T , Western Union, MoneyGram, E-Checking |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Product Name: | Cemented Carbide Pellets | Material: | 100% Virgin Cemented Carbide |
|---|---|---|---|
| Advantage: | Direct Manufacturer | Trade Term: | FOB ,CIF, EXW |
| Application: | Die Casting Mould, Punch Dies, Wire Drawing Die Etc | Certificate: | ISO9001:2015 |
| High Light: | dies for wire drawing,carbide wire drawing dies |
||
Product Description
Tungsten Carbide Cold Heading Dies / Pellets / Nibs OEM ODM Accepted
OEM/ODM Tungsten Carbide Cold Heading Dies Pellets Molds Nib Cores
Product Description:
Tungsten carbide die blanks are widely used for making finished die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die etc.
Gingte has the most wide and stable grades for carbide dies and has highest cost performance.
If you are intetested in our products , please contact us freely. (Miki Chen:TEL(Wechat): +86 13433226826)
Our obvious Advantage :
1. First- class raw material
2 Advanced production machine and tesing facilities
3. Various grades and sizes available,
4. Professional suggestion on products
5. Resonable price ,fast delivery time.
Grade Performance:
| Tungsten Carbide Cold Forging/heading Dies | ||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended |
| g/cm³ | MPa | HRA | ||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits, cut medium soft and hard rocks; debarking and cutting of frozen wood, soft wood and original wood. |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Size Options:
| Type | OD | ID | H | Tolerance | ||
| OD | Id | H | ||||
| φD10~14×φd | 10~14 | 1.0～5.0 | 15～40 | D×+3% | d×-3% | H×+3% |
| φD15~24×φd | 15~24 | 1.5～8.0 | 20～60 | |||
| φD25~40×φd | 25~40 | 1.5～25 | 30～60 | |||
| φD42~95×φd | 42~95 | 2.0～50 | 20～95 | |||
Product Performance:
1. High Hardness: 6%-10% Co grade, fine to medium grain size
2. High Strength: 15%-25% Co grade, medium to coarse grain size
3. Good Wear Resistance: Fine to Ultrafine grain size, hardness can reach 92-93HRA
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Can I have a visit to your factory before the order?
A: Sure, welcome your visit of factory.
