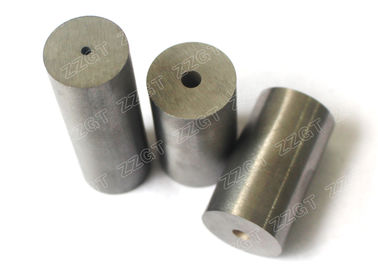

• Cemented Tungsten Carbide Cold Heading Dies G30 G40 Grade For Standard Nuts
Cemented Tungsten Carbide Cold Heading Dies G30 G40 Grade For Standard Nuts

Cemented Tungsten Carbide Cold Heading Dies G30 G40 Grade For Standard Nuts

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: φ20*φ5*50 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Cemented Carbide Surface Treatment: Rough Grinding On OD And Two Faces
Applications: For Standard Nuts Purpose: Forging
Chemical Composition: WC+Cobalt Roughness: 3.2 Or Others
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air
High Light:

tungsten carbide die

,

tungsten carbide heading die

Product Description

 Cemetned Carbide Dies Cold Heading Dies G30 G40 Grade for Standard Nuts



Product Features :

An important feature of the cemented carbide dies is the potential to vary its composition so that the resulting physical and chemical properties ensure maximum resistance to wear, deformation, fracture, corrosion, and oxidation. Besides, a wide variety of shapes and sizes that can be produced using modern powder metallurgical processing offers tremendous scope to design cost-effective solutions to many of the problems of component wear and failure encountered in both the engineering and domestic environment.



In general, the super hard materials all suffer from lower toughness and poor resistance to sudden fracture, the cemented carbide dies have a unique combination of high hardness and good toughness within a wide range and thus constitute the most versatile hard materials group for engineering and tooling applications.



The features possessed by the cemented carbide dies include high strength, robust construction, easy availability, durability, excellent performance and many others. We have established our strong footholds in the international market by satisfying the customers with a premium range of cemented carbide die .Cemented carbide dies could long-time ensures the high surface roughness for high-speed drawn steel wire, tungsten wire and copper wire. We produces cemented carbide dies in both the standard configurations (round, square, and rectangle) and in custom shapes as specified by our customers CAD drawings.





Product Specifications:

Product Name

Cemented Carbide Cold Heading Die

Material

cemented carbide

Size

φ20*φ5*50 or custom-made

Size Tolerance

OD: ±0.5 ; ID: 0/ -1 ;  H: +0.5/ +1.5 or as customer's request

Color

Gray

Recommend Grade

G30 G40 etc

Grain Size

Coarse Grain

Application

For Standard Bolts Nuts

Processing Treatment

clean ground

Product Features

Long life, good impact resistance

Certification

ISO9001

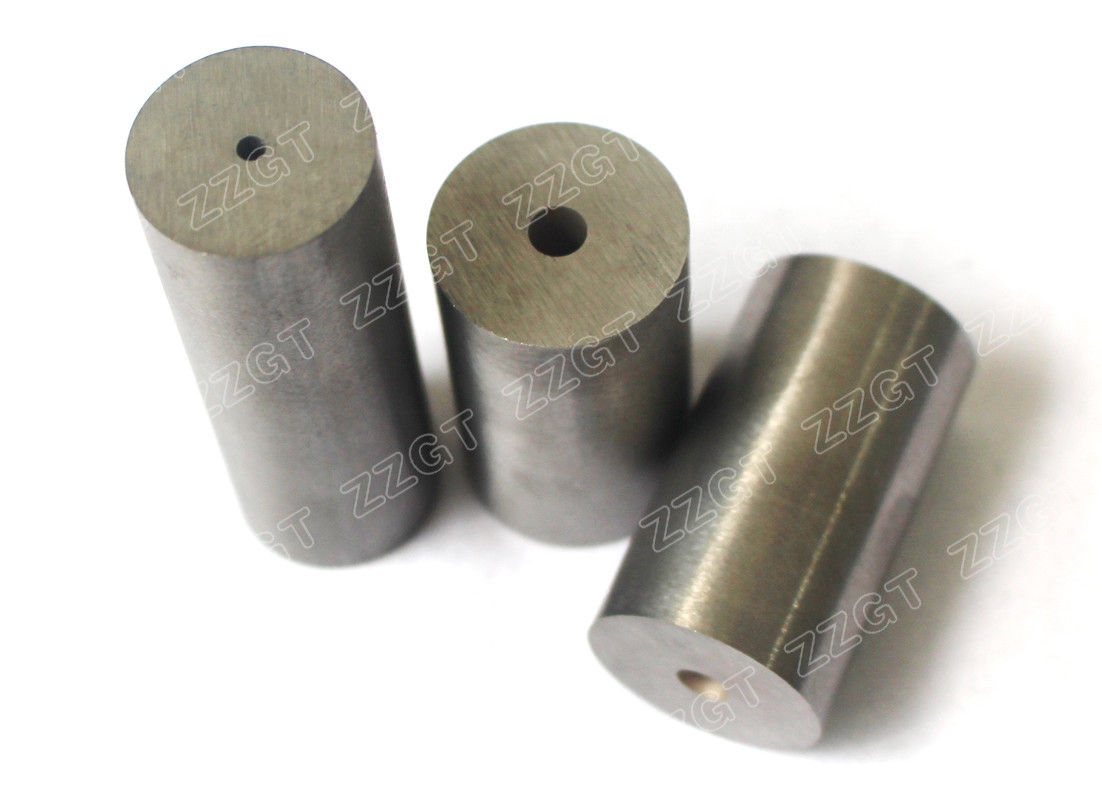

Cemented Tungsten Carbide Cold Heading Dies G30 G40 Grade For Standard Nuts 0



Various Grades for Options:

Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5

For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.

YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
YG25C 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







Various Sizes for Options:

Type

OD

ID

H

Tolerance

OD

Id

H

φD10~14×φd

10~14

1.0~5.0

15~40

D×+3%

d×-3%

H×+3%

φD15~24×φd

15~24

1.5~8.0

20~60

φD25~40×φd

25~40

1.5~25

30~60

φD42~95×φd

42~95

2.0~50

20~95

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Product Display and Advantages:

Cemented Tungsten Carbide Cold Heading Dies G30 G40 Grade For Standard Nuts 1





Applications:

Cemented Tungsten Carbide Cold Heading Dies G30 G40 Grade For Standard Nuts 2



Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008



Packing Process:

Cemented Tungsten Carbide Cold Heading Dies G30 G40 Grade For Standard Nuts 3





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
