YG15C YG20C Tungsten Carbide Cold Heading Dies Punch with spray-dry Granulation Technology

YG15C YG20C Tungsten Carbide Cold Heading Dies Punch with spray-dry Granulation Technology

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: ZZGT Li
Certification: ISO9001:2015
Model Number: customized

Payment & Shipping Terms:

Minimum Order Quantity: Samples are accepted
Price: Negotiable
Packaging Details: Paper box , Wooden Carton or Customized accepted
Delivery Time: 7-15days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 400T/year
Get Best Price Contact Now

Detail Information

Grade: YG15C,YG20C Material: Tungsten Carbide
ISO: K30 Finished: Supported
Size: As Customer Requirement Application: Spraying
Advantage: Durable
High Light:

tungsten carbide die

,

tungsten carbide heading die

Product Description



high quality tungsten carbide heading dies punch from Zhuzhou





About Us:



Zhuzhou Gingte hard alloy company manufactures longer wearlife parts for a wide range of industries worldwide. Zhuzhou Gingte specialize in hard metal resistant components including strips, drill bits, rings, plates, strips, tracks, rods, buttons,inserts, roller,dies,tips, balls, wear plates and bushings.


The missions of Zhuzhou Gingte tungsten Carbide Co.,ltd as follows:

To solve wear problems that cause unnecessary equipment downtime and repairs
To provide excellent product quality and service
To ship all orders on-time
To build long term relationships with our customers



Product Description

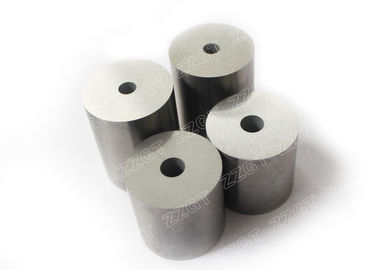

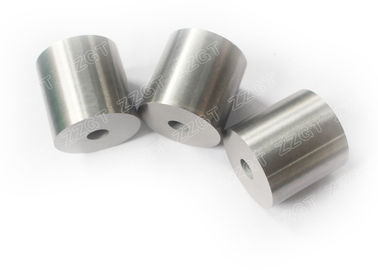

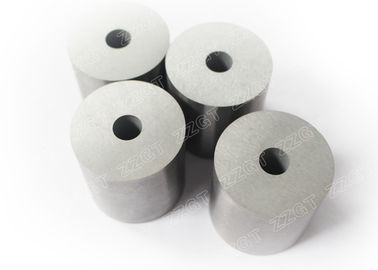

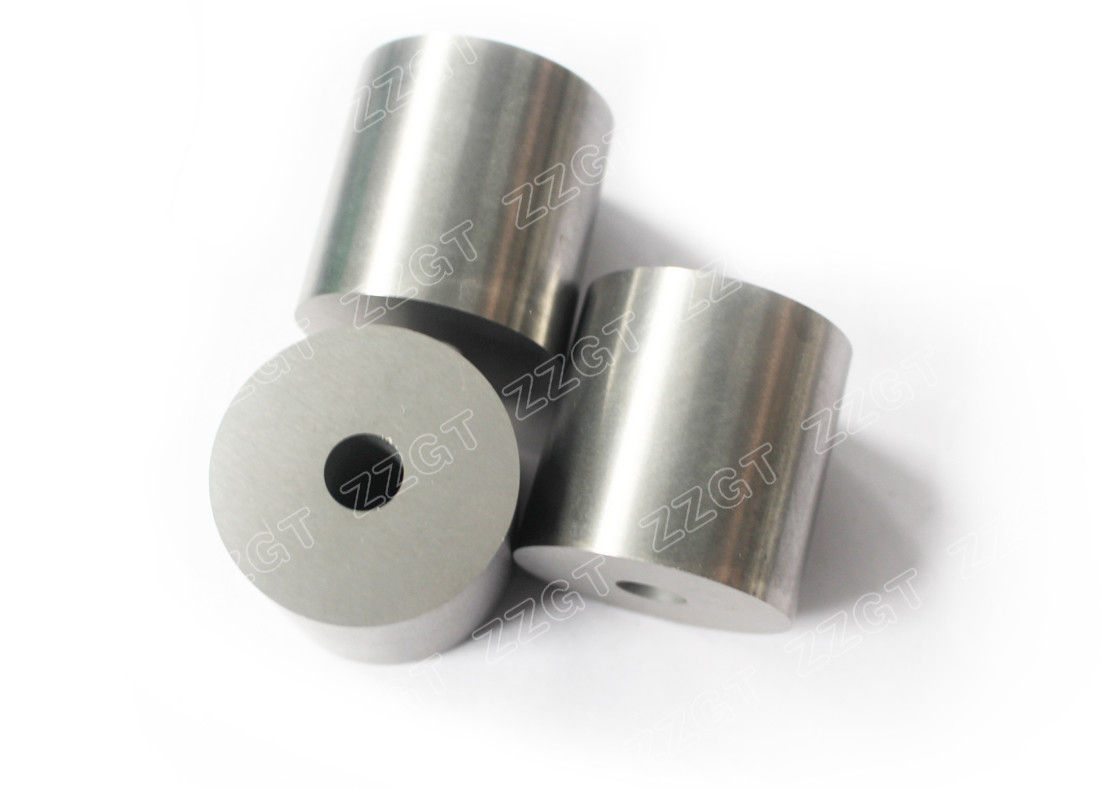

1. Product Name: Cemented Carbide Cold heading tools

2. Material: Kentanium

3. Size: various sizes or as customer's request

4. Size Tolerance: free tolerance or as customer's request

5. Shape: Round Shape with hole

6. Recommend Grade: YG20C etc

7. Grain Size: Coarse Grain

8. Sintering: HIP sintering

9. Processing: heading tools Machined under controlled process with CIP

10. Product Features: wearable and impact resistance

11. Certification: ISO9001-2015

12. Usage: Forging







Various Sizes for Options



Type OD ID H Tolerance
OD Id H
D10~14×φd 10~14 1.0~5.0 15~40 D×+3% d×-3% H×+3%
D15~24×φd 15~24 1.5~8.0 20~60
D25~40×φd 25~40 1.5~25 30~60
D42~95×φd 42~95 2.0~50 20~95

For any other sizes we are able to custom-made according to clients’ requirements or drawings





 Grade Recommendation



Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5 For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.
YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
YG25C 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.



More Details:

YG15C YG20C Tungsten Carbide Cold Heading Dies Punch with spray-dry Granulation Technology 0











YG15C YG20C Tungsten Carbide Cold Heading Dies Punch with spray-dry Granulation Technology 1





Factory Equipments:



There are some advanced producing equipments in Zhuzhou Gingte Cemented Carbide Co.,ltd

*HIP sintering furnace

*Spraying Draying system

*200T TPA acutomatic press machine

*CNC Grinder

*Spark Erosion machine

*Wire cutting machine,etc



YG15C YG20C Tungsten Carbide Cold Heading Dies Punch with spray-dry Granulation Technology 2
