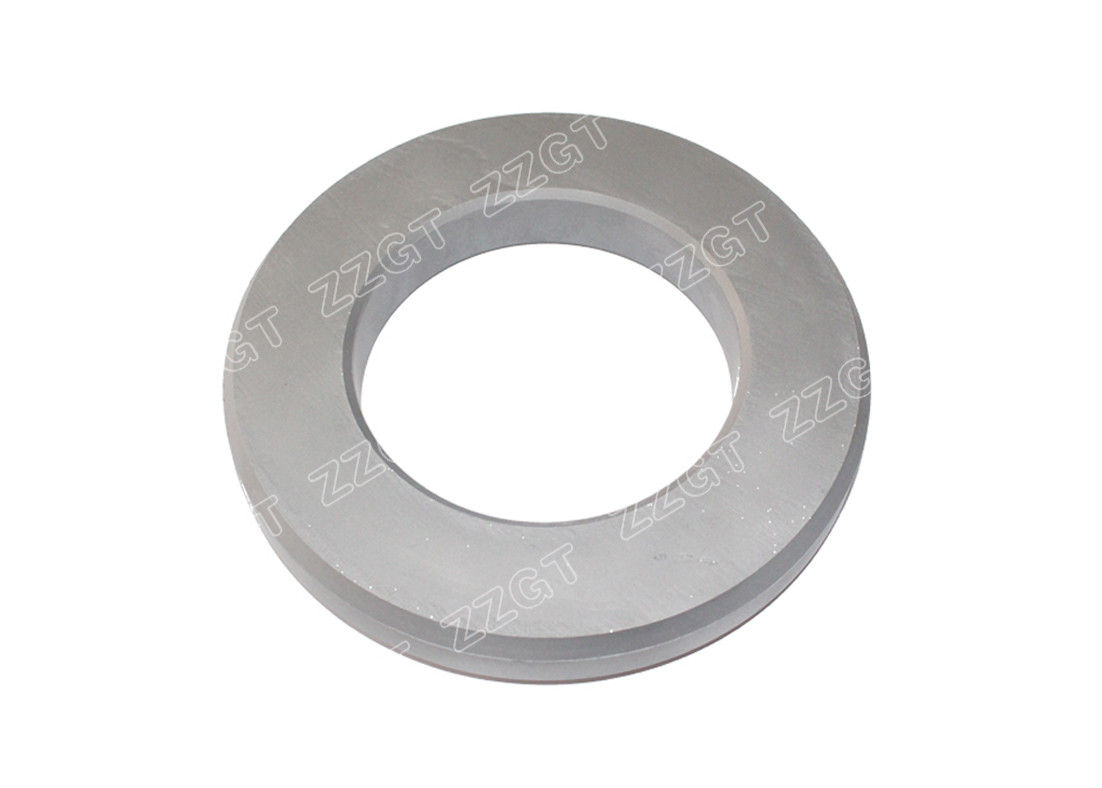

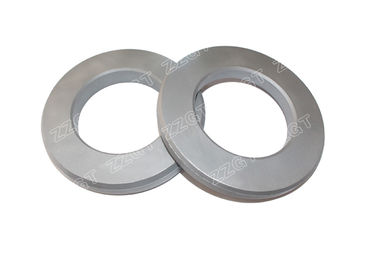

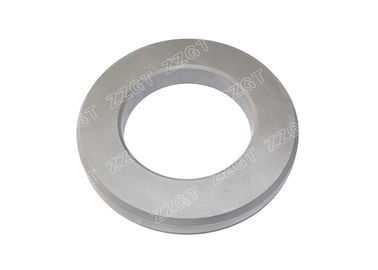

Polished Cemented Carbide Roll Rings Wear Resistant For Rolled Steel Wire
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 150-90-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30KG |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Application: | For Rolls Various Wires |
|---|---|---|---|
| Roughness: | 0.1 Or Other | Sample: | Available |
| Surface: | Polished | Chemical Composition: | Wc+cobalt |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | ||
| High Light: | custom made tungsten carbide rings,tungsten carbide roll rings |
||
Product Description
Polished Cemented Carbide Roll Rings Wear Resistant For Rolled Steel Wire
Excellent Wear Resistant Cemented Carbide Roller Rings for rolled steel wire
Carbide Rings Application :
Tungsten carbide wire guiding rollers are widely used in steel Industry for guiding steel/iron wire with its high impact strength and wear resistance,various dimensions are available in our factory,your specific enquiry will be more than welcome.
Product Advantage:
1, Direct factory produce and sale
2, Different grades are available
3, Custom-made available
4, Precision processing and strict product inspection
5, Advanced Equipments and Professional technicians
6, Gurantee the bulk quality are in accordance with the requires of customer
7, ISO 9001-2008 Quality Control System
8,100% virgin tungsten carbide powder
9, High speed drilling, wears well & long service life
10, High hardness, high strength, wear resistance
11, 10 years professional experience
Grade Performance:
| Tungsten Carbide Rings | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG6X | 14.9 | ≥3200 | 91.5 | A fine grain grade with better wear resistance and good strength,qualified for machining of child cast iron,alloy cast iron,refractroy steel and alloy steel ,also for finishing of normal cast irons etc. | |
| YG10X | 14.4 | ≥3650 | 90 | Suitable for cast iron, non-ferrous metals etc. | |
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
Size Options:
| Outer Diameter (mm) |
Inner Diameter (mm) |
Thickness (mm) |
| φ50~φ318 | φ3~φ280 | 5~100 |
| … | … | … |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Quality assurance:
-
Every production process has a special person to test to ensure quality
-
Have professional engineers to check the quality
-
All products are under strict quality system management based on ISO9001:2008
Packing Process:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
