Stress Relief Treatment Hard Alloy Dies , Tungsten Carbide Cold Punching Dies
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | various sizes for options |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Hard Alloy | Purpose: | Cold Punching |
|---|---|---|---|
| Chemical Composition: | Tungsten+cobalt | Roughness: | 3.2 Or Others |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Grain Size: | 1.6~2.4 |
| TRS: | ≥3500 | Density: | 13.9~14.1 G/cm³ |
| Processing: | Stress Relief Treatment | ||
| High Light: | tungsten carbide products,carbide wire drawing dies |
||
Product Description

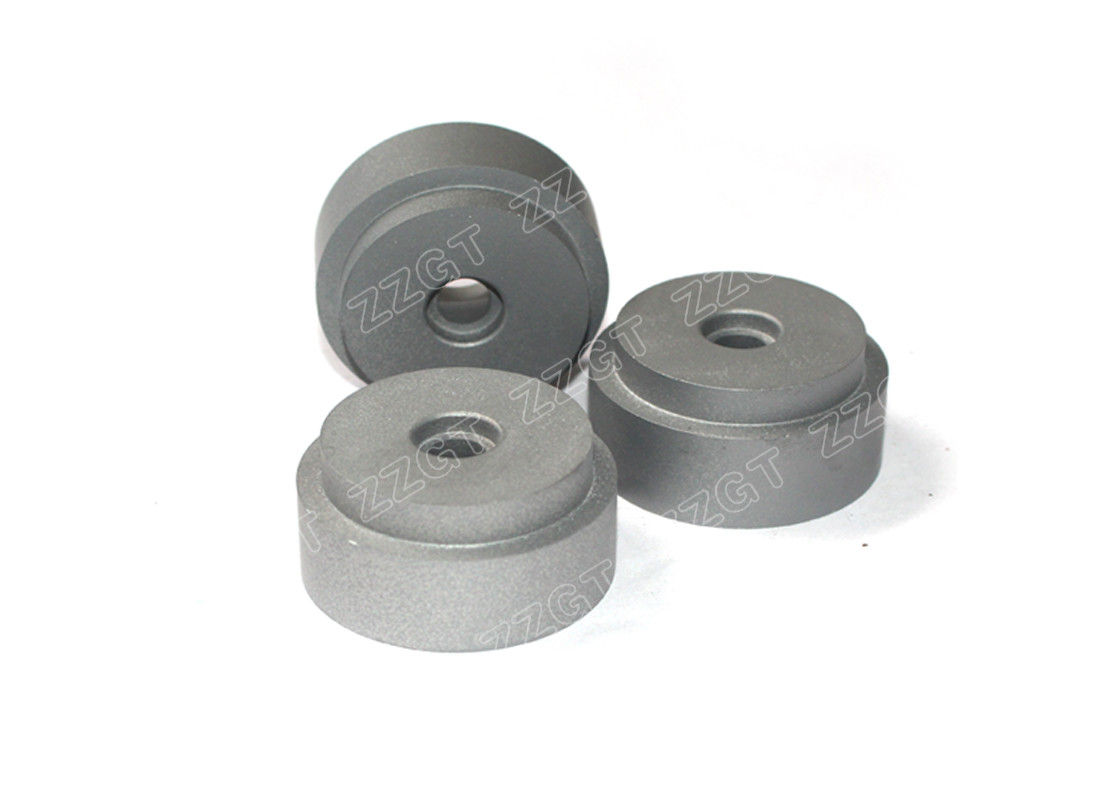

Stress Relief Treatment Hard Alloy Dies , Tungsten Carbide Cold Punching Dies
Stress Relief Treatment Hard Alloy Dies Tungsten Carbide Cold Punching Dies
Product Quick Detail :
1. Product Name: Hard Alloy Dies
2. Material: Cemented Carbide
3. Size: various sizes or as customer's request
4. Size Tolerance: standard or as customer's request
5. Shape: Round Shape with hole
6. Recommend Grade: YG20C YG25C etc
7. Grain Size: Coarse Grain
8. Sintering: HIP sintering
9. Surface Treatment: Finished
10. Product Features: high strength, long life
11. Certification: ISO9001
Product Descriptions:
WC-Co cemented Tungsten carbide is a new high-performance engineering materials. The direct use of the finished product after sintering alloy is widely used in molds, tools, measuring tools and wear-resistant, corrosion-resistant parts and other fields. The study found, WC- Co alloy can be heat strengthened, reinforced composite handle life of f tungsten carbide die is four times without heat treatment, is 50 times of the original the steel mold, technology, has a significant economic benefit.
Advantages of tungsten carbide dies:
1. tungsten carbide with high hardness, high wear resistance and high red hardness, at 550 ℃ still maintain more than 56HRC hardness;
2. Has a high modulus of elasticity, generally is (4 ~ 7) × 104kg / mm2, and excellent rigidity at room temperature;
3. Have a high compressive strength;
4. Have good resistance to oxidation and corrosion resistance, acid resistance, alkali resistance and high temperature not easily oxidized;
5. Has a low coefficient of thermal expansion, suitable for manufacturing high ,precision, sharp die.
Why Choose Us ?
1. Proffessional tungsten carbide manufacturer over 10 years.
2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.
3. Annual production capacity over 400tons.
4. More than 10000 sets of exisiting non-standard molds,fast delivery!
5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.
6. ISO9001:2008 Quality Management System.
Various Grades for Options:
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 |
For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. |
|
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. | |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. | |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. | |
Various Sizes for Options:
|
Type |
OD |
ID |
H |
Tolerance |
||
|
OD |
Id |
H |
||||
|
φD10~14×φd |
10~14 |
1.0～5.0 |
15～40 |
D×+3% |
d×-3% |
H×+3% |
|
φD15~24×φd |
15~24 |
1.5～8.0 |
20～60 |
|||
|
φD25~40×φd |
25~40 |
1.5～25 |
30～60 |
|||
|
φD42~95×φd |
42~95 |
2.0～50 |
20～95 |
|||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Applications:
Quality assurance:
-
Every production process has a special person to test to ensure quality
-
Have professional engineers to check the quality
-
All products are under strict quality system management based on ISO9001:2008
Packing Process:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us at your free time when you are interested in our products : )
