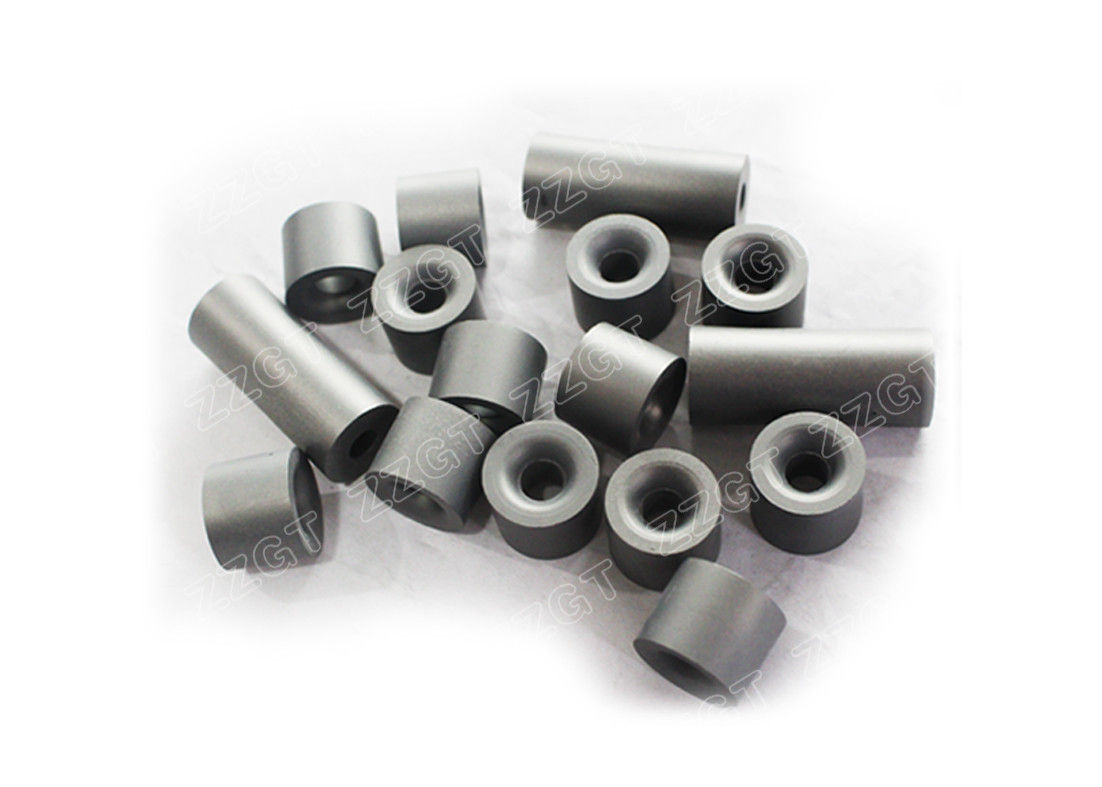

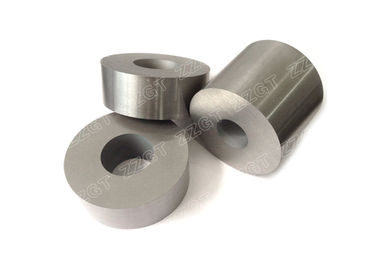

Tungsten/Cemented carbide cold heading die for cold punching and heading of bolts, screws, rivets
Product Details:
| Place of Origin: | Zhuzhou city, Hunan province, China |
| Brand Name: | Gingte |
| Certification: | ISO9001:2015 |
| Model Number: | Various types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Kilograms |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plastic bag+ inner box+ waterproof outer carton or other packing types as customer's request. |
| Delivery Time: | 7-20 days once get the deposit |
| Payment Terms: | L/C, T/T , Western Union, MoneyGram, E-Checking |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Product Name: | Cemented Carbide Cold Heading Die | Material: | Tungsten Carbide And Cobalt |
|---|---|---|---|
| Surface Treatment: | Blanks Or Ground | Advantage: | Factory, With Competitive Price |
| Feature: | High Hardness,corrosion Resistance | Shipping Method: | DHL, UPS, FEDEX, TNT Etc. By Air Or By Sea |
| High Light: | cold forging die,tungsten carbide die |
||
Product Description
Tungsten/Cemented carbide cold heading die for cold punching and heading of bolts, screws, rivets
Our Aim :
Our Aim Is To Make Every Customer Satisfied And We Both can achieve WIN-WIN
Product Description:
1. High hardness and good wear resistance.
2. Excellent performance and high cost performance.
3. Full sizes and Grades available.
4. Long time life.
Grade Performance:
| Tungsten Carbide Cold Forging/heading Dies | ||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended |
| g/cm³ | MPa | HRA | ||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits, cut medium soft and hard rocks; debarking and cutting of frozen wood, soft wood and original wood. |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Size Options:
| Type | OD | ID | H | Tolerance | ||
| OD | Id | H | ||||
| φD10~14×φd | 10~14 | 1.0～5.0 | 15～40 | D×+3% | d×-3% | H×+3% |
| φD15~24×φd | 15~24 | 1.5～8.0 | 20～60 | |||
| φD25~40×φd | 25~40 | 1.5～25 | 30～60 | |||
| φD42~95×φd | 42~95 | 2.0～50 | 20～95 | |||
Zhuzhou Gingte cemented carbide Co.;Ltd is a professional factory of tungsten carbide with rich experience in this industry .
At present, the company developed various types of products including carbide rods, plates, cold heading dies , blades and so on. Especially the tungsten carbide rods, it is most popular product in the market due to its high quality and reasonalble price .
If you have any questions or requirements for tungsten carbide products, you do no hezitation to contact us, I am sure there is one product can meet your request.
.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
