Super quality Tungsten/Cemented carbide cold heading dies with advanced technology
Product Details:
| Place of Origin: | Zhuzhou city, Hunan province, China |
| Brand Name: | Gingte |
| Certification: | ISO9001:2015 |
| Model Number: | Various types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Kilograms |
|---|---|
| Price: | negotiable |
| Packaging Details: | Paper wrapped , carbord cases. then exported wooden carton. |
| Delivery Time: | 7-20 days once get the deposit |
| Payment Terms: | L/C, T/T , Western Union, MoneyGram, E-Checking |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Product Name: | Cemented Carbide Cold Heading Die | Composition: | Tungsten Carbide And Cobalt |
|---|---|---|---|
| Size: | CUSTOMIZED Accepted | Usage: | Standard Cold,cold Heading,cold Pressing Dies |
| Feature: | High Toughness & Good Wear Resistance. | Recommended Grade: | YG15, YG20 ,YG20C, YG22C, YG25C |
| Highlight: | tungsten carbide drawing dies,carbide wire drawing dies |
||
Product Description

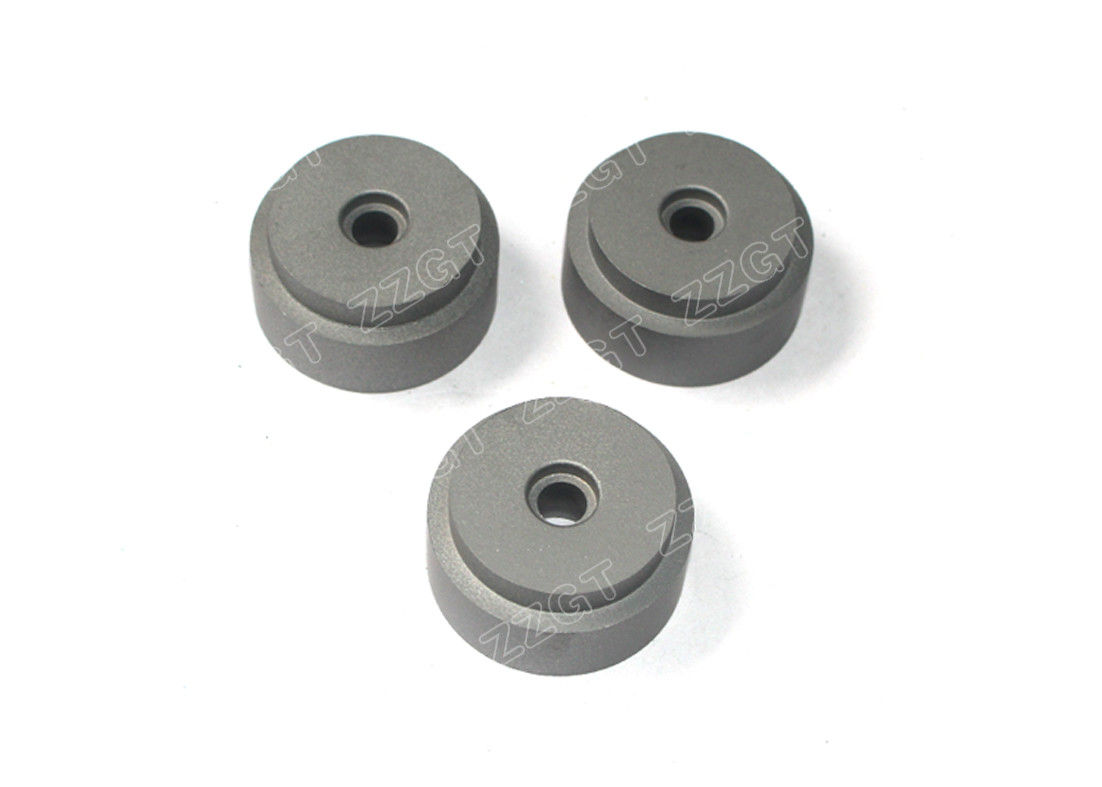

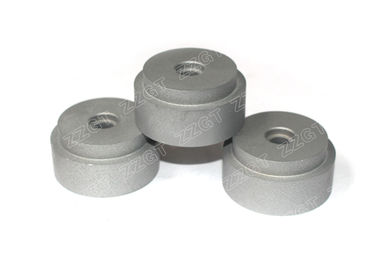

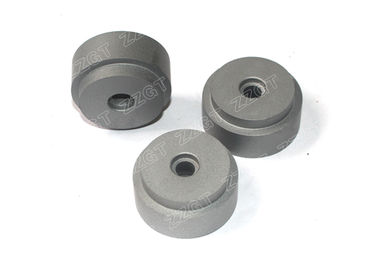

Super quality Tungsten/Cemented carbide cold heading dies with advanced technology
Our Service :
About Quality of Products
1. 100% virgin raw material .
2. Rich production experience in tungsten carbide field.
3. 100% inspection before shipment to make sure qualified products and no more or less than order.
4. Client’s design is welcome.
About order:
1. Any inquiries ,reply with 24 hours.
2. competitive price:factory price will be competitive.
3. MQQ:20kgs,if less than 20kgs, it will be seen as sample order which can be acceptable.
4. Non-standard shape products can be made.
5. The order schedule will be sent by salesperson every week.
Grade Performance:
| Tungsten Carbide Cold Forging/heading Dies | ||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended |
| g/cm³ | MPa | HRA | ||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits, cut medium soft and hard rocks; debarking and cutting of frozen wood, soft wood and original wood. |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Size Options:
| Type | OD | ID | H | Tolerance | ||
| OD | Id | H | ||||
| φD10~14×φd | 10~14 | 1.0～5.0 | 15～40 | D×+3% | d×-3% | H×+3% |
| φD15~24×φd | 15~24 | 1.5～8.0 | 20～60 | |||
| φD25~40×φd | 25~40 | 1.5～25 | 30～60 | |||
| φD42~95×φd | 42~95 | 2.0～50 | 20～95 | |||
FOR ANY SIZES WE ARE ABLE TO CUSTOM-MADE ACCORDING TO CLIENT'S REQUIREMENTS OR DRAWINGS
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit.
Our Aim Is To Make Every Customer Satisfied And We Both can achieve WIN-WIN!
