Round Shape 8*60 Solid Tungsten Carbide Bar K20 Grade For Cutting Tools

Round Shape 8*60 Solid Tungsten Carbide Bar K20 Grade For Cutting Tools

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 8*60

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes or plastic box,next use exported cartons or wooden cases,or packed as
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Contains 100% Virgin Tungsten And Cobalt Size: Various Size And Grade For Choose
Service: 24-hour Online After-sale Service Quality: Long Life With Super Resistance To Heat ,wear And Abrasion
Technology: Imported Equipment HIP Sinter Packaging: Standard Export Packing,or Per Customer Needs
High Light:

tungsten carbide strips

,

tungsten carbide composite rods

Product Description

Round Shape 8*60 Solid Tungsten Carbide Bar K20 Grade For Cutting Tools

Solid Tungsten Carbide Rods K20 8*60 Item complete Large stock for cutting tool







Product description:


Cemented carbide tungsten rods supplies hearly all kinds of products made of tungsten carbide.e.g.drawing dies,seals,bars ,rods,buttom rings,blades,blocks .Widely know as one kind of carbide cutting tools.It is available for different grinding geometric parameters and suitable for both cutting material and nonmetal materials ,also it can be applied to conventional ,semi-automatic lathe,automatic lathe and planning machine to work grooves and operate cutting etc.We have many years experience to supply our clients the mentioned high-quality product with most competitve price .It is always our principles to offer our best service to any clients at any time.

Product Advantages:

  1. All carbide rods are made from the best tungsten carbide powders. The carbide rods are with submicron and average grain size ,the powder is even and stick together firmly,the purity of tungsten carbide powders is quite high.
  2. All carbide rods are made by the extrusion machine which insure that the inside structure of carbide rods is excellent and apprerance of carbide rods if better ,the flatness is improved a lot .
  3. All carbide rods are through HIP sintering which insure that the inside structure of carbide rods is free pore and can stick together firmly .Also the TRS is improved around 30% after HIP sintering.
  4. large stock of regular sizes of carbide rods ,which can enable us to make the delivery within 24 hours.
  5. Replacement .we will replace the carbide rods for you if there is any defects.





Product Name Tungsten Carbide rods
Material cemented carbide
Size φ8*60 or others available
Size Tolerance h6 or as customer's request
Color As picture
Recommend Grade  K20 etc
Grain Size Medium Grain
Application for cutting tool
Processing Treatment Clean ground and polished or as customer request.
Product Features Long life,good wear resistance and high hardness.
Certification ISO9001







Grade Performances:

Carbide Rods Grades for Moulds

Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF8 K30 92 8 1.6 14.7 90 75.9 1400 ≥3500 Suitable for machining cast iron,aluminum alloy,quenched steels,brass etc,widely used in PCB micro drill and milling tools.
GF20 K40 80 20 1.2 13.7 84.5 66 900 ≥4200 High strength,mainly used for stamping tool can withstand great pressure.



Carbide Rods Grades for Cutting Tools

Grade ISO Grade WC % CO % Grain Size Density Hardness T.R.S Applications
(μm) g/cm3 HRA HRC HV N/mm²
GF6X K10 94 6 0.8 14.9 91.5 78.4 1600 ≥3200 Suitable for steel cast iron,alloy cast iron,refractory steel,alloy steel.
YL10.2 K30 88 10 0.6 14.4 91.5 79.3 1650 ≥3850 With high temperature hardness,widely used in PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.



Size Options:

Type OD(MM) L(MM) Un-ground tolerance Fine ground tolerance
φ1~φ4×L 1~4 38.5 50 100 330 -0.00/+0.30 -0.00+L×1% h6
φ5~φ40×L 5~40 100 310 330 -0.00/+0.6

For any other sizes we are able to custom-made according to clients’ requirements or drawings.



Product Display and Advantages:

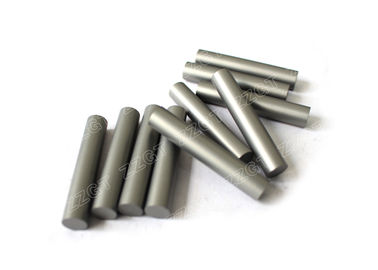

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools



Packing Process:

Tungsten Carbide Rods GF8 φ10*100 HRA90 for Milling Tools





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
