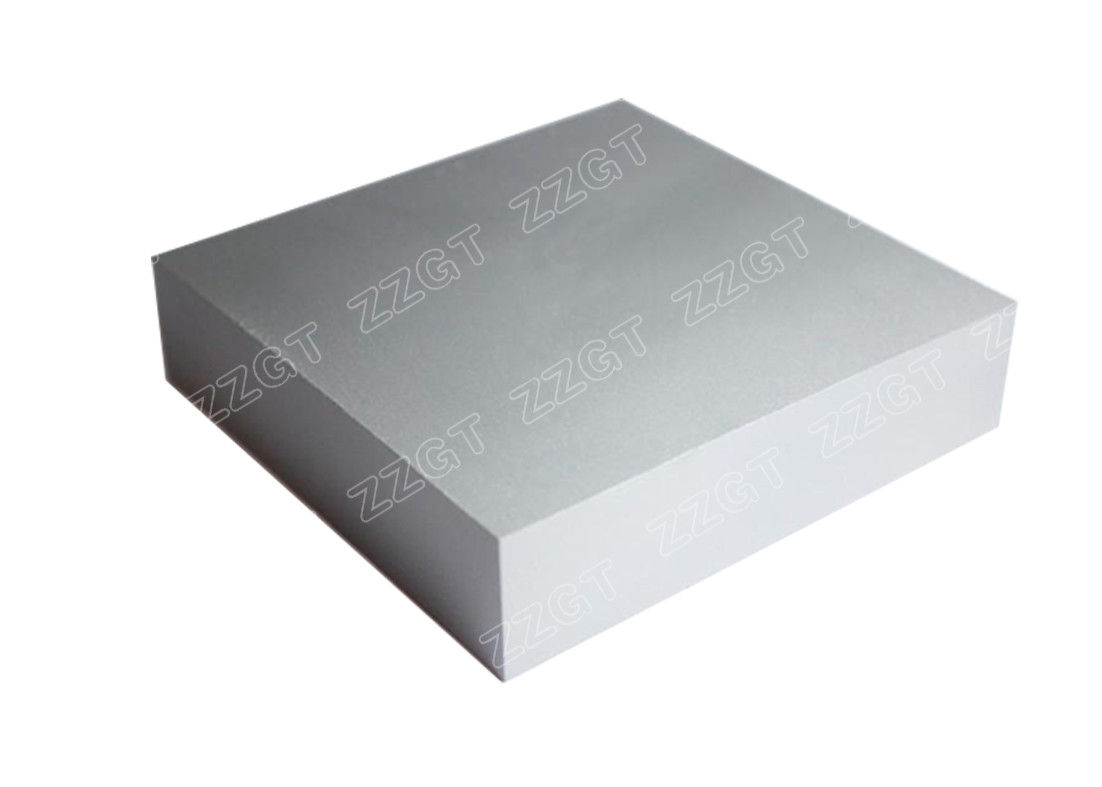

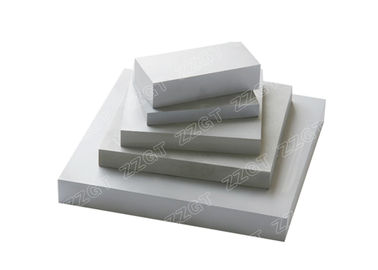

Sintered Cemented Tungsten Carbide Plate For Making Wear Resistant Tools
Product Details:
| Place of Origin: | Zhuzhou City, Hunan province,China |
| Brand Name: | Gingte |
| Certification: | ISO9001:2015 |
| Model Number: | Various types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 15 Kilogram |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-25 days after get the deposit |
| Payment Terms: | T/T D/P D/A etc. |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Product Name: | Carbide Plates | Material: | Tungsten Carbide And Cobalt |
|---|---|---|---|
| Surface Treatment: | Both Ground And Blanks Are Available | Shape: | Cube Square |
| Application: | Make Wear-resistant Tools | Certificate: | ISO9001:2015 |
| High Light: | tungsten carbide block,tungsten carbide wear plates |
||
Product Description
Sintered Cemented Tungsten Carbide Plate For Making Wear Resistant Tools
Sintered Cemented Tungsten Carbide Plate For Making Wear Resistant Tools
Introduction of tungsten carbide plate:
Due to its good ductile quality and shock proof design, this plate is used as stamping die. In electronic industry, this plate is used as LED lead frame, motor rotor, El silicon sheet and stator..
Gingte is providing various tungsten carbide plates with different size and Grades, please contact us at any time when you are interested in our products.
Product Advantage:
Sintered in HIP Furnace
Superior heat stability
Size standard as per your requirements
he largest production capacity and fastest delivery
Professional suggestion on products
Various Grade:
| Tungsten Carbide Cold Forging/heading Dies | ||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended |
| g/cm³ | MPa | HRA | ||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits, cut medium soft and hard rocks; debarking and cutting of frozen wood, soft wood and original wood. |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | ≥3800 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | ≥4000 | 83 | Nut forming dies and high impact resistance forging dies. |
| YG25C | 13.1 | ≥4250 | 82.5 | Stainless bolt header dies and rollers. |
Sizes for option:
| Type(L * W) (mm) | H ( mm) | Tolerance | ||
| L | W | H | ||
| 50X50X | 1.5~10 | L x±1.5% | W x±2.5% | H x±2.5% |
| 100X100X | 2.5~60 | |||
| 120X120X | ||||
| 150X150X | ||||
| 200X200X | ||||
| 300X200X | ||||
Packing process:
Why choose us?
We are a tungsten carbide manufacturer, located in Zhuzhou City, Hunan Province, China. Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.
The products are popular in the market because of their good quality, moderate price and fast delivery.
