High Strength Sintered Tungsten Steel Punching Dies For Aluminum Material
Product Details:
| Place of Origin: | Zhuzhou,Hunan,China |
| Brand Name: | Gingte Li |
| Certification: | ISO9001:2015 |
| Model Number: | 22*10.5*12 or others |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30KGs |
|---|---|
| Price: | negotiable |
| Packaging Details: | First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement. |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Steel | Application: | Punching |
|---|---|---|---|
| Chemical Composition: | Tungsten+cobalt | Roughness: | 3.2 Or Others |
| Shipping Terms: | FOB,CIF,C&F Etc By Sea Or By Air | Grain Size: | 1.6 |
| TRS: | ≥3500 | Density: | 14 G/cm³ |
| Surface: | Unground | ||
| High Light: | dies for wire drawing,carbide wire drawing dies |
||
Product Description

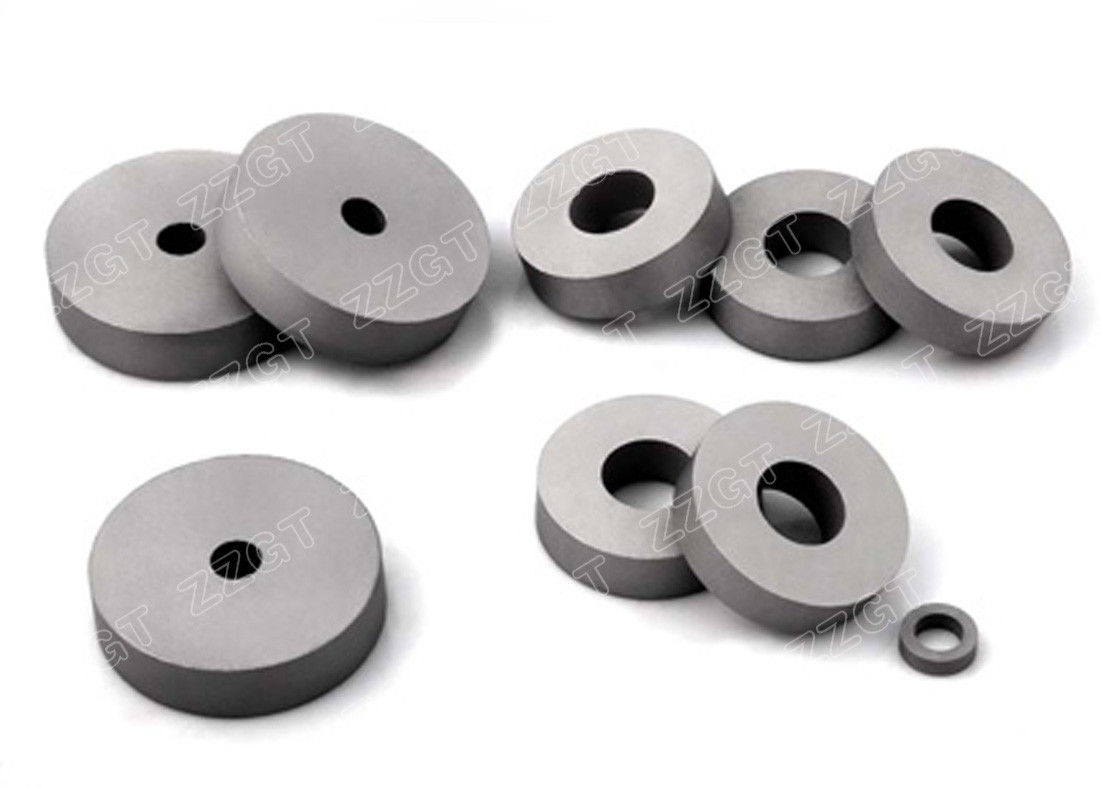

High Strength Tungsten Steel Punching Dies for Aluminum Material on Sintered Condition
Product Quick Detail :
1. Product Name: Tungsten Steel Punching Die
2. Material: tungsten Steel
3. Size: 22*10.5*12 or as customer's request
4. Size Tolerance: free tolerance or as customer's request
5. Shape: Round Shape with hole
6. Recommend Grade: YG15 etc
7. Grain Size: Medium Grain
8. Sintering: HIP sintering
9. Processing Treatment: Sintered Condition
10. Product Features: high strength and wear resisitance
11. Certification: ISO9001
Product Descriptions:
Tungsten steel punching dies with specially shaped and highly polished holes are widely used for processing metal or non-metal material into mechanical parts.Cemented carbide punching dies have properties of high impact resistance, good wear resistance and good toughness. they can be used for the hot-press forging and cold-press forging of metal or non-metal material. Cemented carbide punching dies have wide ranges of applications, such as electronic devices, radar, television, instrumentation and aerospace.A variety of punching dies in our company are available for your application, with excellent working performance and long service life.
Length under 25mm is suitable for aluminum material and other punching materials.
Our Service:
With advanced technology introduced from foreign countries,we have established the top production line in China.We can offer customers with high-quality cemented carbide dies and can customized according to customers' drawing or prints.
Various Grades for Options:
| Tungsten Carbide Cold Forging/heading Dies | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 |
For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. |
|
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
| YG18C | 13.7 | ≥3600 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. | |
Various Sizes for Options:
|
Type |
OD |
ID |
H |
Tolerance |
||
|
OD |
Id |
H |
||||
|
φD10~14×φd |
10~14 |
1.0～5.0 |
15～40 |
D×+3% |
d×-3% |
H×+3% |
|
φD15~24×φd |
15~24 |
1.5～8.0 |
20～60 |
|||
|
φD25~40×φd |
25~40 |
1.5～25 |
30～60 |
|||
|
φD42~95×φd |
42~95 |
2.0～50 |
20～95 |
|||
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Product Advantages:
1. High Hardness: 6%-10% Co grade, fine to medium grain size
2. High Strength: 15%-25% Co grade, medium to coarse grain size
3. Good Wear Resistance: Fine to Ultrafine grain size, hardness can reach 92-93HRA
Applications:
Quality assurance:
-
Every production process has a special person to test to ensure quality
-
Have professional engineers to check the quality
-
All products are under strict quality system management based on ISO9001:2008
Why Choose Us ?
1. Proffessional cemented carbide manufacturer over 10 years.
2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.
3. Annual production capacity over 400tons.
4. More than 10000 sets of exisiting non-standard molds,fast delivery!
5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.
6. ISO9001:2008 Quality Management System.
Packing Process:
