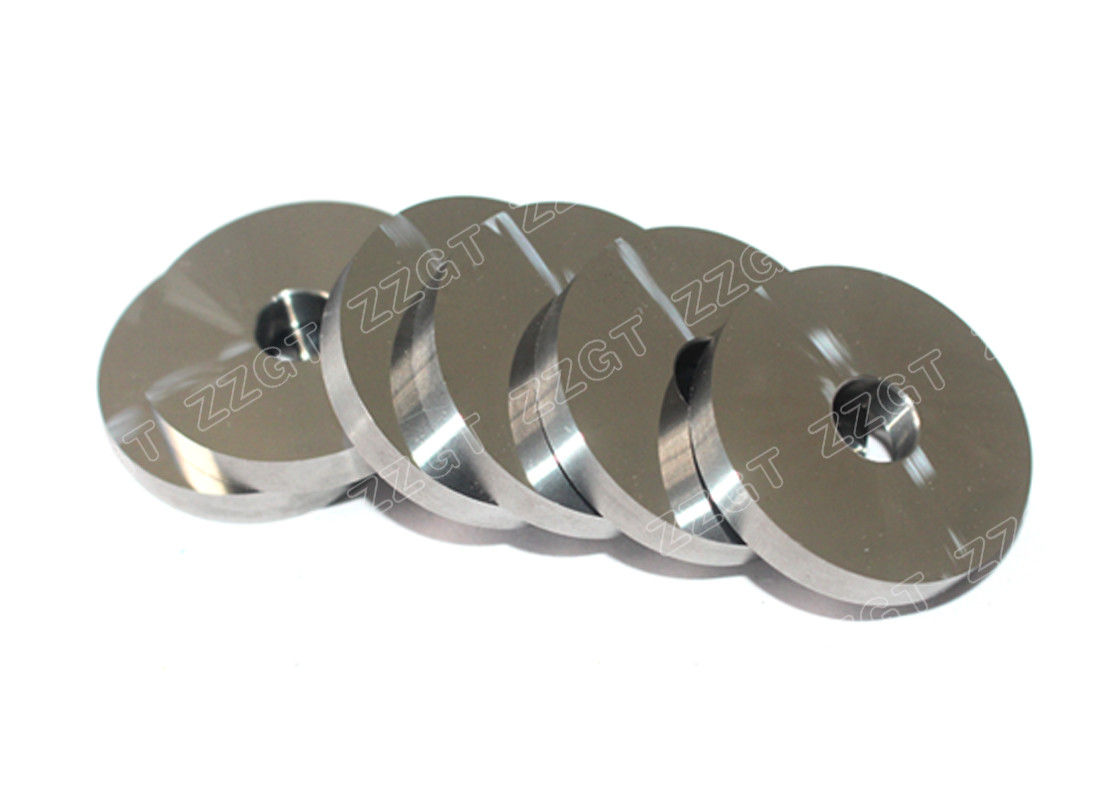

• Cemented Tungsten Carbide Punching Dies YG15 Grade For Aluminum Die
Cemented Tungsten Carbide Punching Dies YG15 Grade For Aluminum Die

Cemented Tungsten Carbide Punching Dies YG15 Grade For Aluminum Die

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 30*14.5*8.5 or others

Payment & Shipping Terms:

Minimum Order Quantity: 30KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Cemented Carbide Purpose: For Aluminum Material
Chemical Composition: Tungsten+cobalt Roughness: 0.4 Or Others
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air Grain Size: 1.6
TRS: ≥3500 Density: 14 G/cm³
Surface Treatment: Polished
High Light:

tungsten carbide drawing dies

,

carbide wire drawing dies

Product Description

Cemented Tungsten Carbide Punching Dies YG15 Grade For Aluminum Die

Fast Delivery Tungsten Carbide Puching Dies YG15 grade For Aluminum Die





Product Quick Detail :

1. Product Name: Tungsten Carbide Punching Die

2. Material: tungsten Carbide

3. Size: 30*14.5*8.5 or as customer's request

4. Size Tolerance: finished or as customer's request

5. Shape: Round Shape with hole

6. Recommend Grade: YG15 etc

7. Grain Size: Medium Grain

8. Sintering: HIP sintering

9. Processing Treatment: OD and face ground

10. Product Features: high strength and long life

11. Certification: ISO9001





Product Descriptions:

Tungsten carbide punching dies have specially shaped and highly polished holes for processing metal or non-metal material into mechanical parts.Tungsten carbide punching dies have properties of good wear resistance and impact resistance, they are widely used for punching, stamping, forging of metal powder and non-metal powder under large stress.





Precautions for processing cemented carbide punching dies:
1. During transportation, we should protect the cemented carbide products from colliding.
2. During grinding, we recommended a resin binder diamond grinding wheel with concentration of 75% for processing; it should also be noted the cemented carbide stamping die should be cooled sufficiently in order to avoid generating machining stress concentration or grinding cracks.
3. Cemented carbide products are not allowed to be compressed.
4. Cemented carbide inserts welded under high temperature should be slow (insulation) cooled slowly.





Product Usage:

Carbide punching dies are widely used for hot-pressing and cold-pressing stamping and forging of metal or non-metal material into mechanical parts,

length under 25mm is suitable for aluminum material and other punching materials.





Various Grades for Options:

Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5

For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.

YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.







Various Sizes for Options:

Type

OD

ID

H

Tolerance

OD

Id

H

φD10~14×φd

10~14

1.0~5.0

15~40

D×+3%

d×-3%

H×+3%

φD15~24×φd

15~24

1.5~8.0

20~60

φD25~40×φd

25~40

1.5~25

30~60

φD42~95×φd

42~95

2.0~50

20~95

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Product  Advantages:

1. High Hardness: 6%-10% Co grade, fine to medium grain size

2. High Strength: 15%-25% Co grade, medium to coarse grain size

3. Good Wear Resistance: Fine to Ultrafine grain size, hardness can reach 92-93HRA





Applications:

Cemented Tungsten Carbide Punching Dies YG15 Grade For Aluminum Die 0



Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008





Why Choose Us ?

1. Proffessional cemented carbide manufacturer over 10 years.

2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.

3. Annual production capacity over 400tons.

4. More than 10000 sets of exisiting non-standard molds,fast delivery!

5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.

6. ISO9001:2008 Quality Management System.







Packing Process:

Cemented Tungsten Carbide Punching Dies YG15 Grade For Aluminum Die 1
