• Unground Surface Tungsten Carbide Nibs YG8 YG15 Grade For Wire Drawing
Unground Surface Tungsten Carbide Nibs YG8 YG15 Grade For Wire Drawing

Unground Surface Tungsten Carbide Nibs YG8 YG15 Grade For Wire Drawing

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 20*2.5*18 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Tungsten Carbide Purpose: Wire Drawing
Chemical Composition: Tungsten+cobalt Roughness: 3.2 Or Others
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air Grain Size: 1.6
TRS: ≥3400 Density: 14-14.3 G/cm³
Concentricity: 0.4
High Light:

tungsten carbide drawing dies

,

carbide wire drawing dies

Product Description

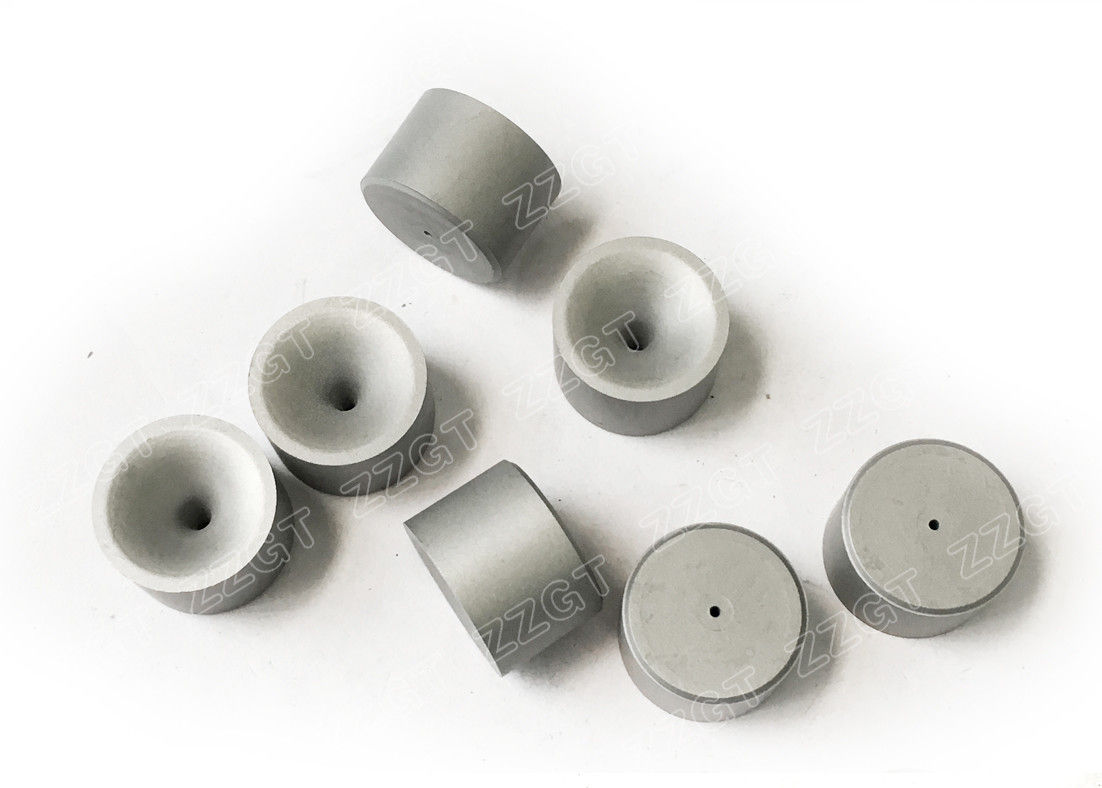

Unground Surface Tungsten Carbide Nibs YG8 YG15 Grade For Wire Drawing

YG8 YG15 Unground Tungsten Carbide Pellets Nibs  for Wire Drawing





Product Quick Detail :

1. Product Name: Tungsten Carbide Pellets

2. Material: tungsten Carbide

3. Size: 20*2.5*18 or as customer's request

4. Size Tolerance: free tolerance or as customer's request

5. Shape: Round Shape with different shape hole

6. Recommend Grade: YG8 YG15 etc

7. Grain Size: Medium Grain

8. Sintering: HIP sintering

9. Surface Treatment: unground and sandblasting

10. Product Features: wear resistance and high hardness

11. Certification: ISO9001





Product Descriptions:

With the rapid development of China's industrial production, the quantity and quality of the wire made increasing demands. Wire drawing die is a key tool to make wire. Its level of quality directly affect steel quality, die losses, energy consumption and products of economic benefits.Tungsten carbide wire drawing dies are made of cemented carbide. Tungsten carbide cobalt alloy belong, whose main component is tungsten carbide and cobalt. Tungsten carbide is an alloy of the "skeleton", the main role played hard wear; Cobalt is bonded metal, is the source of the alloy toughness.





Product Characteristics:

Tungsten carbide wire drawing dies and alloy die compared with the following characteristics: high abrasion resistance, polishing, good adhesion of small, low friction, low energy consumption, high corrosion resistance, these features make the tungsten carbide wire drawing dies have a wide range of processing adaptability, become the most widely used wire drawing die.





Various Grades for Options:

Grade Density
(g/cm³)
Hardness
(HRA)
TRS
(MPa)
Applications Recommended
YG6X 14.95 91.5 ≥3200 For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress.
YG6 14.95 90.5 ≥3000 For drawing steel, nonferrous alloy bars of less than Dia.20.00mm under more stress and also for drawing tubes of less than Dia.10.00mm.
YG8 14.8 89.5 ≥3000 For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts.
YG10 14.5 88.5 ≥3200
YG15 14 87 ≥3400 For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting.







Various Sizes for Options:

TYPE D H d h α°
S11- 8 6 0.3-1.0 0.3-0.6 14°
10 8 0.7 0.6 14°
13 10 0.4-2.8 0.3-1.6 16°
15 13 0.5-3.0 0.3-1.4 16°
16 14 0.4-3.8 0.3-1.8 16°
20 17 1.2-4.7 2.0-2.6 18°
21 17 1.8-5.7 1.2-3.0 18°
22 18 1.7-6.4 1.2-3.0 18°



Type D H d h α°
S13- 25 18 5.8 2.5 20°
28 19 6.0-10.9 3.5
27 18 4.7-6.7 2.5
28 20 3.7-9.6 2.5
30 21 2.8-12.0 2.5-3.5
35 24 9.6-12.0 5.0
28 24 9.6-15.5 5.0
40 25 9.0-15.5 5.0
40 28 10.3 6.0
50 28 16.5-24.5 5.5-6.0
60 35 25.5-34.5 7.0

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008





Why Choose Us ?

1. Proffessional cemented carbide manufacturer over 10 years.

2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.

3. Annual production capacity over 400tons.

4. More than 10000 sets of exisiting non-standard molds,fast delivery!

5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.

6. ISO9001:2008 Quality Management System.







Packing Process:

Unground Surface Tungsten Carbide Nibs YG8 YG15 Grade For Wire Drawing 0





FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How can i place an order ?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.



Q: What is your terms of delivery ?
A: We accept EXW, FOB, C&F, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.



Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
