• HIP Sintering Tungsten Carbide Cold Forging Tools For Non Metal Material
HIP Sintering Tungsten Carbide Cold Forging Tools For Non Metal Material

HIP Sintering Tungsten Carbide Cold Forging Tools For Non Metal Material

Product Details:

Place of Origin: Zhuzhou,Hunan,China
Brand Name: Gingte Li
Certification: ISO9001:2015
Model Number: 35*3*30 or others

Payment & Shipping Terms:

Minimum Order Quantity: 10KGs
Price: negotiable
Packaging Details: First paper packing each piece then pack into paper boxes,next use exported cartons or wooden cases,or packed as customers'requirement.
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 400 tons/year
Get Best Price Contact Now

Detail Information

Material: Tungsten Carbide Surface Treatment: Sandblasting
Applications: Non-metal Material Purpose: Forging
Chemical Composition: Tungsten+cobalt Roughness: 3.2 Or Others
Shipping Terms: FOB,CIF,C&F Etc By Sea Or By Air Grain Size: 2.4
TRS: ≥3000
High Light:

cold forging die

,

tungsten carbide die

Product Description

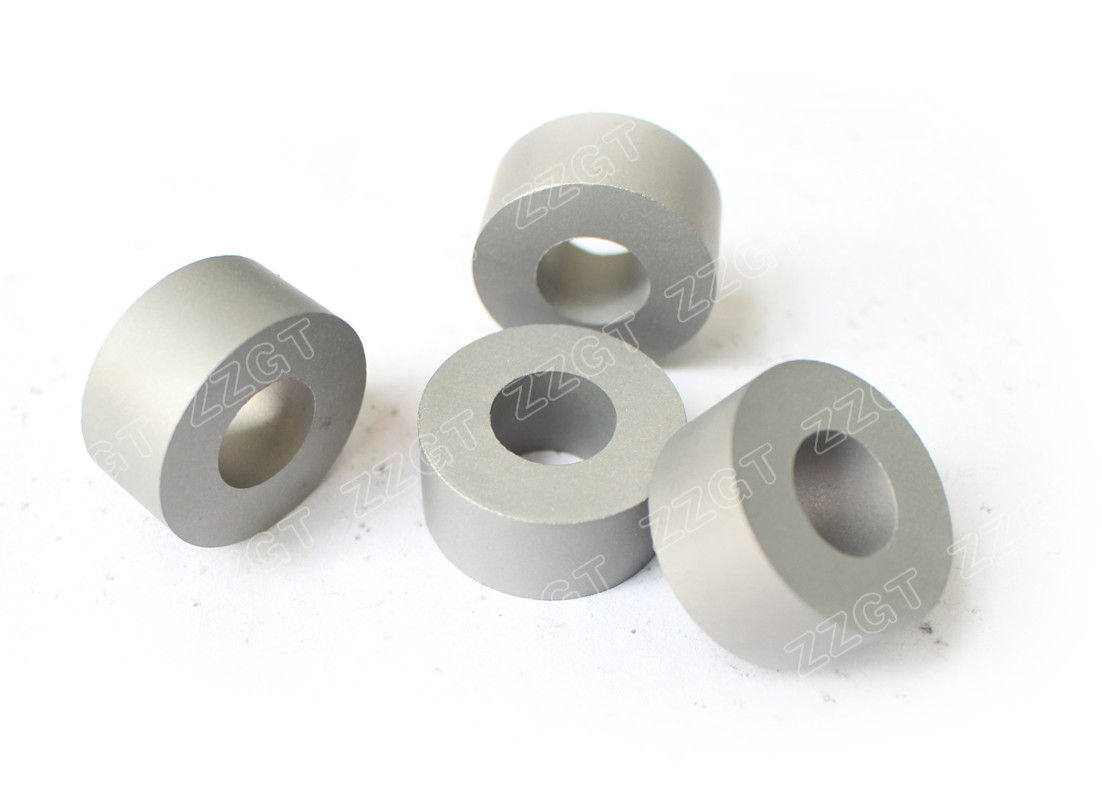

HIP sintering Tungsten Carbide Cold-press Forging Dies for Non-metal Material



Product Quick Detail :

1. Product Name: Tungsten Carbide Cold-press Forging Dies

2. Material: Tungsten Carbide

3. Size: 35*3*30 or as customer's request

4. Size Tolerance: free tolerance or as customer's request

5. Shape: Round Shape with hole

6. Recommend Grade: YG8 YG11 etc

7. Grain Size: Medium Grain

8. Sintering: HIP sintering

9. Processing Treatment: Sintered condition

10. Product Features: Long life, wear resistance

11. Certification: ISO9001





Product Notice:

Cemented carbide with good impact toughness, good fatigue resistance, good flexural strength and good abrasion resistance is the ideal material for processing. The grade YG8,YGL5,YG20C,YG22C,YG23C,YG25C are usually selected. Generally speaking, the improvement of wear resistance will inevitably lead to a decrease in toughness, and in turn the improvement of toughness will inevitably lead to a reduction in the wear resistance. So we should focus on the processing target and processing condition and select the suitable material. If the selecting grade is easy to be cracked and damaged in the early stage, low hardness and high toughness grade is suitable. If the selecting grade is easy to be damaged in the early stage, grades with high hardness and good wear resistance are better.

The following grade: YG8,YGL5,YG20C,YG22C,YG23C,YG25C from left to right, the hardness and abrasion resistance reduced and the toughness increased.

By the way, we could produce cemented carbide dies in both the standard configurations (round, square, and rectangle) and in custom shapes as specified by our customers CAD drawings.





Why Choose Us ?

1. Proffessional cemented carbide manufacturer over 10 years.

2. Located in zhuzhou, A well-known hub for the production of cemented carbide,We have easy access to a wealth of raw materials.

3. Annual production capacity over 400tons.

4. More than 10000 sets of exisiting non-standard molds,fast delivery!

5. Top R&D team and 12-member QC team that follows a five-point inspection routine,covering raw material,production processes, semi-finished products, finished products and packaged goods.

6. ISO9001:2008 Quality Management System.





Various Grades for Options:

Tungsten Carbide Cold Forging/heading Dies
Grades Density T.R.S Hardness Performance & application recommended
g/cm³ MPa HRA
YG11 14.4 ≥3000 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14 ≥3400 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress.
YG20 13.5 ≥3800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG15C 14 ≥4000 86.5

For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood.

YG16C 13.9 ≥3500 85.5 Impact resistance forging dies.
YG18C 13.7 ≥3600 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 ≥3800 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 ≥4000 83 Nut forming dies and high impact resistance forging dies.
YG25C 13.1 ≥4250 82.5 Stainless bolt header dies and rollers.







Various Sizes for Options:

Type

OD

ID

H

Tolerance

OD

Id

H

φD10~14×φd

10~14

1.0~5.0

15~40

D×+3%

d×-3%

H×+3%

φD15~24×φd

15~24

1.5~8.0

20~60

φD25~40×φd

25~40

1.5~25

30~60

φD42~95×φd

42~95

2.0~50

20~95

For any other sizes we are able to custom-made according to clients’ requirements or drawings.





Applications:

HIP Sintering Tungsten Carbide Cold Forging Tools For Non Metal Material 0



Quality assurance:

  • Every production process has a special person to test to ensure quality

  • Have professional engineers to check the quality

  • All products are under strict quality system management based on ISO9001:2008



Packing Process:

HIP Sintering Tungsten Carbide Cold Forging Tools For Non Metal Material 1
