Cemented Tungsten Carbide Rings Polished / Ground Surface Type Optional
Product Details:
| Place of Origin: | Zhunzhou,Hunan, China |
| Brand Name: | Gingte |
| Certification: | ISO9001:2015 |
| Model Number: | Various type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 kilograms |
|---|---|
| Price: | $60.00-$70.00 per Kilogram |
| Packaging Details: | Plastic bag+ inner box+ waterproof outer carton or other packing types as customer's request |
| Delivery Time: | 7-25 days depends on cunstomer's order quantity |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, |
| Supply Ability: | 400 tons/year |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Color: | Ground |
|---|---|---|---|
| Feature: | Good Wear Resistance, Strong Toughness,corrosion Resistance | Price: | Cheap Price With Factory Wholesales |
| Grade: | Various Grades And Sizes According To Different Request | Shipping Terms: | EXW,FOB,CIF,C&F Etc. By Sea Or By Air |
| High Light: | custom made tungsten carbide rings,tungsten carbide roll rings |
||
Product Description

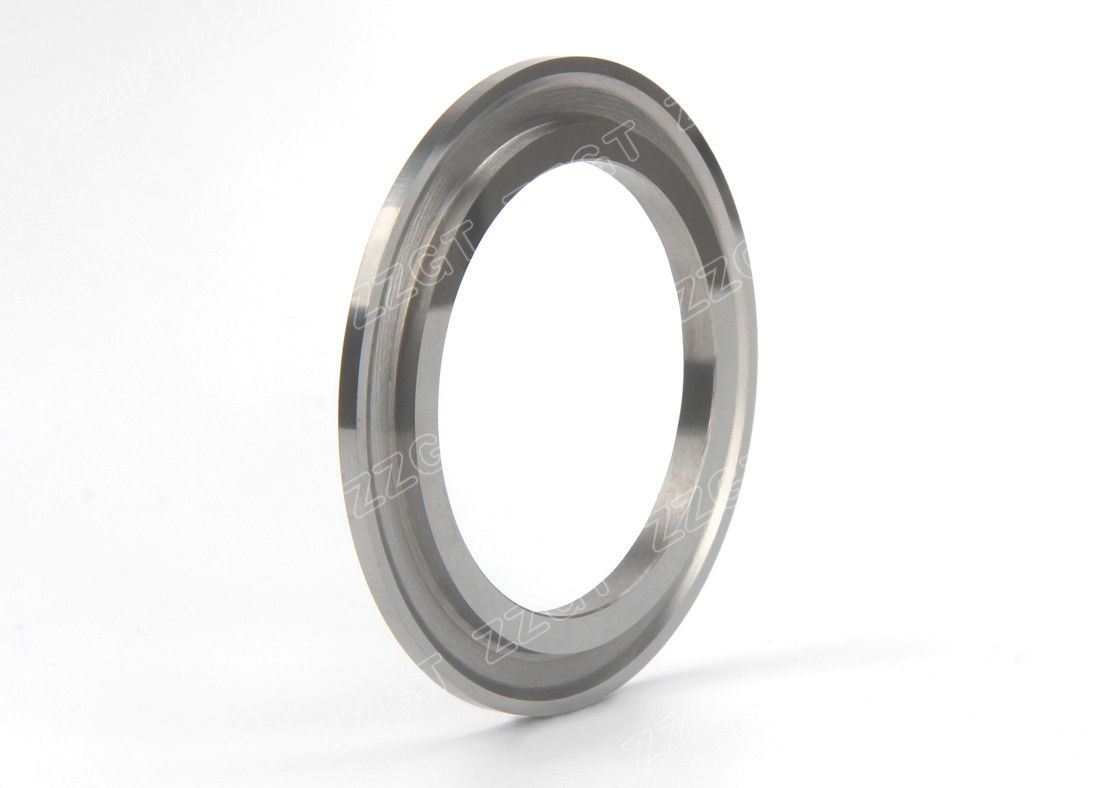

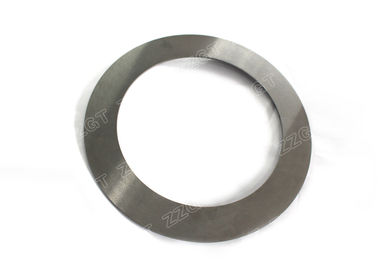

Cemented Tungsten Carbide Rings Polished / Ground Surface Type Optional
Cemented Tungsten Carbide Rings Polished / Ground Surface Type Optional
Product decription :
Mechanical seal ring are used to seal the clearance between the rotating shaft and the stationary housing in equipment .
Tungsten carbide is the most excellent seal face material in the seal material world.
One of main reasons for using Tungsten Carbide is the additional wear resistance that can be achieved in both moving and static parts.
This is particular the case in serve service conditions, such as high temperature,and high levels of corrosion and abrasion.
Features:
1. Corrosion resistance, wear resistance,High pressure resistance.
2. Long service life.
3. Excellent performance, high cost performance.
4. High dimensional accuracy.
5. Quality and performance stability.
| Product Name | Tunsten Carbide Roll Ring |
| Material | cemented carbide |
| Size | φ145*φ92*25 or others available |
| Size Tolerance | Free tolerance or as customer's request |
| Color | Ground |
| Recommend Grade | YG6 YG10 YG15 or others |
| Grain Size | Medium Grain and fine grain |
| Application | For sealing |
| Processing Treatment | Clean ground |
| Product Features | Long life, good impact resistance |
| Certification | ISO9001 |
Grade Performance:
| Tungsten Carbide Roll Ring | |||||
| Grades | Density | T.R.S | Hardness | Performance & application recommended | |
| g/cm³ | MPa | HRA | |||
| YG11 | 14.4 | ≥3000 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. | |
| YG15 | 14 | ≥3400 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching, stamping, forging tools under large stress. | |
| YG20 | 13.5 | ≥3800 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. | |
| YG15C | 14 | ≥4000 | 86.5 | For oil cone drill bits,cut medium soft and hard rocks;debarking and cutting of frozen wood,soft wood and original wood. | |
| YG16C | 13.9 | ≥3500 | 85.5 | Impact resistance forging dies. | |
Size Options:
| Outer Diameter (mm) |
Inner Diameter (mm) |
Thickness (mm) |
| φ90~φ318 | φ3~φ280 | 10~100 |
| … | … | … |
For any other sizes we are able to custom-made according to clients’ requirements or drawings.
Packing Process:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
